RKM52-2M is a TURCK power supply cable with a straight 7/8" female connector (4 pins + PE) on one end and open cores on the other. The 1.5 mm² cores and 10 A rating let one cable feed power to several devices.

• Connector: 7/8"-16 UN, female, straight, 4 pins + PE, gold-plated brass (CuZn) contacts
• Cable: 2 m, PUR, grey, Ø 8.5 mm, 5 x 1.5 mm², core colours BN, WH, BU, BK, GNYE
• Ratings: 10 A, 300 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut
• Environment: IP67 (only when screwed in); -25...+80°C fixed, mobile and in a drag chain

The cable is rated for drag chains (at least 5 million bending cycles, up to 5 m/s², bending radius ≥10 x Ø). It is oil resistant, flame retardant and halogen free.

CE, UKCA and UL approved.

S30SP6FF600Q is a Banner S30 series fixed-field photo sensor with an infrared 880 nm beam and a 600 mm cutoff. It compares the light returned to a near and a far detector, so it detects objects in front of the cutoff and ignores the background behind it.

• Sensing range: 600 mm cutoff
• Output: PNP, SPDT - NO (Light Operate) and NC (Dark Operate), 150 mA each
• Response: 3 ms ON/OFF; repeatability 750 µs
• Supply: 10-30 V DC, 35 mA
• Housing: PBT polyester, acrylic lens, fully epoxy-encapsulated, M30x1.5 threaded barrel
• Environment: IP69K, NEMA 6P, -40...+70 °C
• Connection: integral M12 4-pin male connector

The cutoff is fixed and there is nothing to adjust. Excess gain peaks at about 40 mm from the lens, which is where low-reflectivity targets are detected most reliably; backgrounds belong well beyond 600 mm, and mirror-like ones can cause false switching. A yellow LED shows the NO output on and flashes at marginal excess gain.

Vibration tested to MIL-STD-202F, method 201A; shock to method 213B (75 g operating).

R45C-PF-IQ is a Banner R45C series in-line converter that turns the pulse-frequency modulated (PFM) output of a sensor into a 4-20 mA analog current. It lets a sensor with a PFM output feed a standard analog input.

• Precision: accuracy 0.5 %, resolution 14 bit
• Input: PFM 100...600 Hz
• Output: analog current 4...20 mA
• Supply: 12...30 VDC, max. 50 mA
• Housing: over-moulded PVC body, nickel-plated brass coupling nuts
• Environment: IP65, IP67, IP68, -40...+70 °C
• Connection: integral 5-pin M12 male and female

Two amber LEDs show whether the PFM input and the analog output are within their valid range; both go off when no sensor is connected.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).

T18-2VPRS-Q8 is a Banner T18-2 series opposed-mode receiver, used with a T18-2 emitter. The right-angle 18 mm threaded housing has epoxy-encapsulated electronics and food-grade plastics, for wet and washdown areas. A single-turn potentiometer sets the sensitivity.

• Sensing range: 25 m with a T18-2 emitter
• Output: complementary PNP (NO and NC), 100 mA total up to +55 °C; response 1.5 ms ON / 1 ms OFF
• Supply: 10-30 V DC (10-24 V DC above +55 °C), < 16 mA
• Housing: right-angle, 18 mm thread, PBT polyester, PMMA window
• Environment: IP67, IP68, IP69K, -40...+70 °C; ECOLAB chemical compatibility
• Connection: M12 male connector, 4-pin

Vibration per MIL-STD-202G method 201A, shock per method 213B (75 g operating).

TBIL-S4-8DXP is a TURCK I/O Hub in a compact housing with 8 universal digital PNP channels on 4 M12 ports, where each channel is individually configurable as input or output through the IO-Link master. Each channel has its own diagnostics, so a fault on one port does not affect the readings on the rest.

• Channels: 4x M12 ports, 2 universal digital channels per port (8 channels total)
• Inputs and outputs: input max. 15 mA (-3...5 VDC / 11...30 VDC), output 0.5 A/channel, channel diagnostics
• Communication: IO-Link V1.1 Class A, COM2 / 38.4 kbps, 1x M12 IO-Link connection
• Power: 24 VDC (18...30 VDC), M12 connection, max. 4 A system current
• Housing: glass-fibre reinforced PA6-GF30, black, 144.3 x 32 x 32 mm
• Environment: IP65/IP67/IP69K, -40...+70°C

The compact housing (144.3 x 32 x 32 mm) with 2 mounting holes lets the hub sit directly at a group of sensors on the machine frame, close to the field devices. Each channel's function (input or output) is set through the IO-Link master, with no separate configuration software.

Complies with CE and UKCA requirements, as well as the cULus certificate (LISTED 21 W2). MTTF 422 years per SN 29500 (Ed. 99) at 20°C.

RKH4.4-10/TFG is a TURCK hygienic-design connection cable for food and beverage production, with a straight M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, straight, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, TPE-O, light grey (RAL 7035), Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: grey PP, stainless steel (V4A) coupling nut, FPM/FKM seal
• Environment: IP65, IP67, IP68, IP69 (only when screwed in); -40...+105°C fixed, -25...+105°C mobile, -25...+60°C in a drag chain

The TPE-O jacket is rated for drag chains: at least 4 million bending cycles, up to 3 m/s and 5 m/s², torsion ±180°/m. It resists chemicals, microbes and weathering, is hydrolysis resistant per DIN EN 60068-2-78, stays flexible at low temperatures and is free from halogen, silicone and PVC.

RoHS and REACH compliant, approvals: FDA, Ecolab, GOST.

RKC4.4T-1/TEL is a TURCK connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 1 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

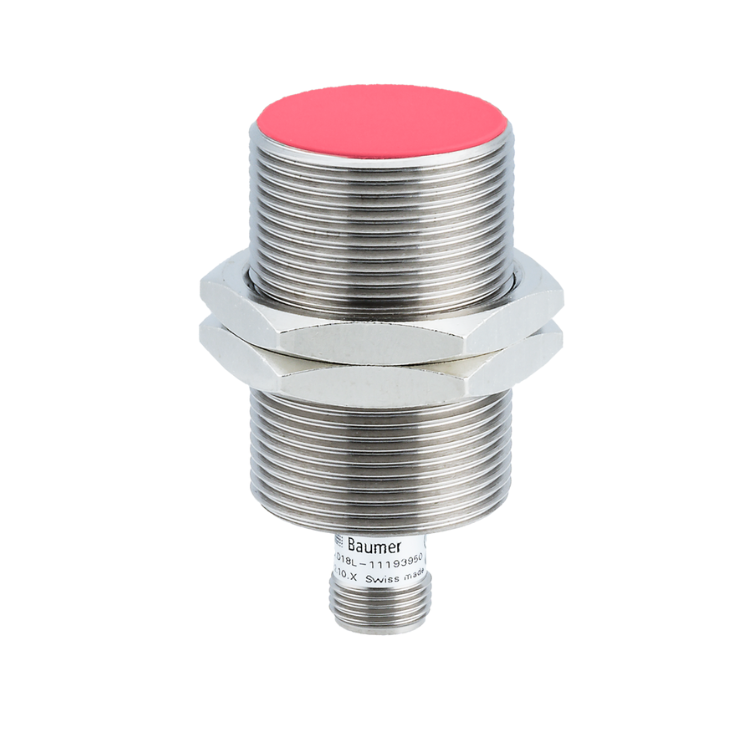

IGYX 30P17B3/S14L is a Baumer inductive proximity sensor in an M30 barrel with a 15 mm nominal sensing distance and a PNP normally open (NO) output. The sensing face is flush mountable and the nickel-plated brass housing is 60 mm long.

• Sensing distance: 15 mm (Sn), assured 12 mm (Sa)
• Output: PNP, normally open (NO), 200 mA, with short-circuit and reverse-polarity protection
• Supply: 10...30 V DC, current consumption up to 15 mA with no load
• Housing: M30 thread, nickel-plated brass, PBT sensing face, 60 mm long, flush mountable
• Environment: IP 67, operating temperature -25...+75 °C
• Connection: M12 connector

The 15 mm sensing distance keeps the sensor clear of the moving part - end-position monitoring on hydraulic and pneumatic cylinders, gates and pallets. Switching frequency is 400 Hz, so this model is not suited to counting the teeth of a fast rotating gear. Tightening torque on the M30 thread must not exceed 60 Nm, and the switching point drifts by up to ±10 % of Sr across the temperature range, which matters when the target sits close to the 15 mm limit.

Complies with the EMC requirements of EN 60947-5-2:2007.

Q126E is the emitter of a Banner Q12 series opposed-mode pair and works with a Q12 receiver.

• Range: 2 m with a Q12 receiver
• Light source: visible red 640 nm
• Supply: 10-30 V DC, < 20 mA
• Housing: polyamide, polycarbonate lens, 8 mm thick
• Environment: IP67, -20...+55 °C
• Connection: 2 m PVC cable, 4 wires

A green LED indicator shows power.

LT3PUQ-79783 is a Banner L-GAGE LT3 time-of-flight laser sensor with a 0-10 V analog output and a PNP discrete output, each with its own taught window. The analog signal is scaled across the programmed window, so a short window still uses the full 0-10 V.

• Accuracy: linearity ±30 mm (0.3...1.5 m), ±20 mm (1.5...5 m) at 24 V DC, 22 °C, white card; temperature effect < 2 mm/°C
• Measuring range: 0.3...5 m (90 % white), 0.3...3 m (18 % grey), 0.3...2 m (6 % black); minimum window 20 mm
• Outputs: analog 0-10 V; discrete PNP, 100 mA; response 1, 10 or 100 ms
• Supply: 12...24 V DC, max. 108 mA at 24 V DC; protected against reverse polarity
• Housing: ABS, acrylic window; Class 2 red laser 658 nm, beam Ø 6 mm
• Environment: IP67, NEMA 6, 0...+50 °C
• Connection: M12 8-pin swivel connector

Window limits are taught with the push buttons or the remote wire, and the red wire enables or disables the laser. Allow 30 minutes of warm-up before programming.

T18-2VNRL-Q8 is a Banner T18-2 series opposed-mode receiver, used with a T18-2 emitter. The right-angle 18 mm threaded housing has epoxy-encapsulated electronics and food-grade plastics, for wet and washdown areas.

• Sensing range: 25 m with a T18-2 emitter
• Output: complementary NPN (NO and NC), 100 mA total up to +55 °C; response 1.5 ms ON / 1 ms OFF
• Supply: 10-30 V DC (10-24 V DC above +55 °C), < 16 mA
• Housing: right-angle, 18 mm thread, PBT polyester, PMMA window
• Environment: IP67, IP68, IP69K, -40...+70 °C; ECOLAB chemical compatibility
• Connection: M12 male connector, 4-pin

Vibration per MIL-STD-202G method 201A, shock per method 213B (75 g operating).

T30SP6RQ is the receiver of a Banner T30 series opposed-mode photo sensor pair, in a right-angle housing with a 30 mm threaded lens. It switches when an object breaks the infrared beam from a separate T30 emitter up to 60 m away.

• Sensing range: 60 m with a T30 emitter
• Output: complementary PNP, Light Operate (black) and Dark Operate (white), 150 mA each
• Response: 3 ms ON, 1.5 ms OFF; repeatability 375 µs
• Supply: 10-30 V DC, 20 mA
• Housing: right-angle, M30x1.5 thread, PBT polyester, epoxy-encapsulated, jam nut included
• Environment: IP69K, NEMA 4X, -40...+70 °C
• Connection: integral M12 4-pin male connector

Needs a T30 emitter, ordered separately. The white-wire output can be wired as a normally open marginal-signal alarm instead of Dark Operate. A green LED shows power and flashes on output overload; the amber LED shows the NO output is on and flashes at marginal excess gain.

Vibration tested to MIL-STD-202F, method 201A; shock to method 213B (75 g operating). UL, CE and UKCA approved.

T30UXUBQ8 is a Banner T30UX series ultrasonic sensor with a 0-10 V analog output scaled across a taught window and built-in temperature compensation. Fast or slow response, output slope and push-button lock are set from the sensor.

• Accuracy: linearity 0.25 % of distance; resolution 0.1 % of distance (1 mm min.); temperature effect 0.02 % of distance/°C
• Measuring range: 200 mm...2 m, 174 kHz; minimum window 10 mm
• Output: analog 0-10 V, min. load 2.5 kΩ; response 92 ms or 222 ms
• Supply: 10...30 V DC, 40 mA; full 10 V output from 12 V DC
• Housing: M30 x 1.5 thread, PBT
• Environment: IP67, -40...+70 °C
• Connection: integral M12 4-pin male

On loss of signal the output drops to 0 V, which the controller can read as a fault.

PTL110S-FF200L-QP150 is a Banner PTL110 series pick-to-light device with an RGB indicator and a 200 mm fixed-field infrared sensor, controlled over RS-485 Modbus RTU with PICK-IQ. The indicator shows the operator which bin to pick from, and the sensor confirms the hand reaching into it.

• Indicator: RGB, up to 14 colours; pick, acknowledge, mis-pick and job lights programmable
• Sensor: 200 mm fixed field, infrared 870 nm
• Communication: RS-485 Modbus RTU, PICK-IQ
• Supply: 10-30 V DC, 50 mA at 24 V DC, 1.35 W maximum
• Housing: ABS, polycarbonate indicator, acrylic lens, 110 x 35 x 33.1 mm
• Environment: IP54, -40...+50 °C
• Connection: two 150 mm PVC cables, M12 4-pin male and M12 4-pin female

The male and female pigtails let devices be daisy-chained along a picking shelf on one RS-485 line. The device needs a Modbus RTU host with PICK-IQ to set colours and read the sensor; it has no touch button and no display.

UL, CE and UKCA approved; FCC Part 15 Class B.

M18TUP8Q is a Banner M18T T-GAGE non-contact temperature sensor. A thermopile detector measures the infrared energy emitted by the object and outputs a 0-10 V signal proportional to its temperature, with a integrated lens giving a 8:1 distance-to-spot ratio.

• Accuracy: linearity ±2 °C (0...+50 °C), ±1 °C or ±1 % (+50...+300 °C); repeatability ±1 % or ±1 °C
• Measuring range: -20...+300 °C, minimum taught span 10 °C; wavelength 8...14 µm
• Outputs: analog 0-10 V; PNP alarm output, active at full-scale signal; response 75 ms
• Supply: 12...30 V DC, < 35 mA; short-circuit protected outputs
• Housing: M18 threaded barrel, 304 stainless steel
• Environment: IP67, -20...+70 °C
• Connection: integral M12 5-pin connector

Used for hot part detection, ejection checks on injection moulding machines, flame and hot glue verification and cold product detection; the object does not need to move. The span is taught with the push button or remote wire, and the teach order sets a positive or negative slope. Allow 5 minutes of warm-up.

FCC Part 15 Class A, ICES-003(A); UL, CE and UKCA.

AFI5-A813.4002.0300 is a Baumer CombiLyz inductive conductivity sensor with separate electronics: the probe with its G 1 A connection sits in the pipe, and the housing with display is wall-mounted up to 10 m away. It passes conductivity and temperature on as two separate 4...20 mA signals, and both solid-state relays in the display can be set as limit contacts.

• Measuring range: 14 selectable ranges, 0...500 µS/cm to 0...1000 mS/cm; temperature -20...150 °C
• Output: 2 x 4...20 mA (conductivity, temperature), 2 solid-state relays
• Supply: 15...35 V DC
• Housing: FlexHousing Ø80 mm, AISI 304, wall mounting, G 1 A hygienic connection, PEEK Natura probe L=60 mm
• Environment: IP67 / IP69K; process -20...140 °C (up to 150 °C for less than 1 h), up to 25 bar
• Connection: 2 x M16x1.5 cable glands, plastic; 10 m PUR sensor cable

Used for concentration control of CIP solutions and for phase separation between product, water and cleaning solution in dairy, brewery and beverage lines. The minimum measurable conductivity is 50 µS/cm, so the sensor does not suit demineralised or purified water. The split design keeps the electronics away from hot or hard-to-reach pipe sections.

cULus listed (E491206); wetted parts in PEEK Natura comply with FDA 21 CFR 177.2415.

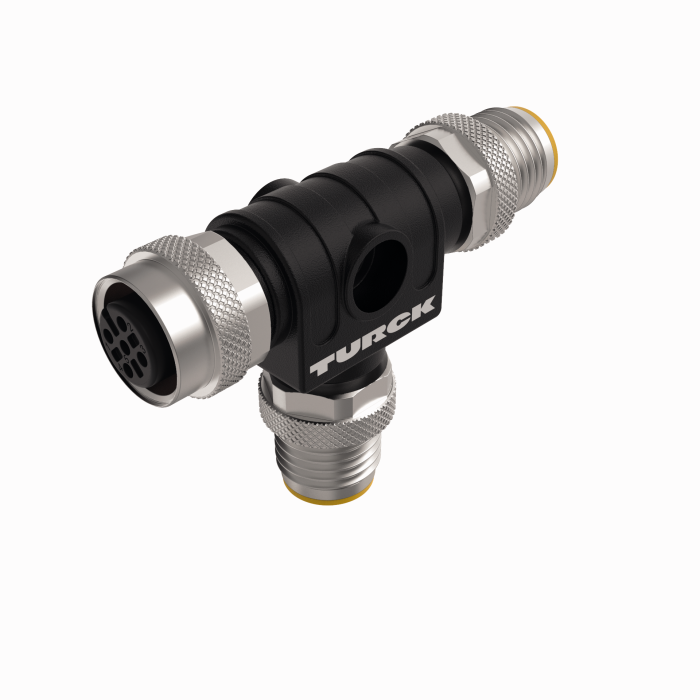

VT2-FKM5-FSM5-FSM5 is a TURCK T-splitter without cable with two M12 male connectors (5-pin) and one M12 female connector (5-pin), all A-coded.

• Connectors: 2 x M12 male, 5-pin / M12 female, 5-pin, straight, A-coded, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Ratings: 4 A, 48 V, contact resistance ≤5 mΩ, insulation resistance ≥10⁸ Ω
• Housing: black TPU, nickel-plated brass coupling nuts
• Environment: IP65, IP67, IP68 (only when screwed in); -30...+90°C

RoHS compliant.

T306EQ is the emitter of a Banner T30 series opposed-mode photo sensor pair, in a right-angle housing with a 30 mm threaded lens. Its infrared 950 nm beam reaches a separate T30 receiver up to 60 m away, so the pair can span wide conveyors and doorways.

• Sensing range: 60 m with a T30 receiver
• Output: none (emitter)
• Supply: 10-30 V DC, 25 mA
• Housing: right-angle, M30x1.5 thread, PBT polyester, epoxy-encapsulated, jam nut included
• Environment: IP69K, NEMA 4X, -40...+70 °C
• Connection: integral M12 4-pin male connector

The emitter uses only the brown and blue wires; pins 2 and 4 are not connected. A green LED shows power.

Vibration tested to MIL-STD-202F, method 201A; shock to method 213B (75 g operating). UL, CE and UKCA approved.

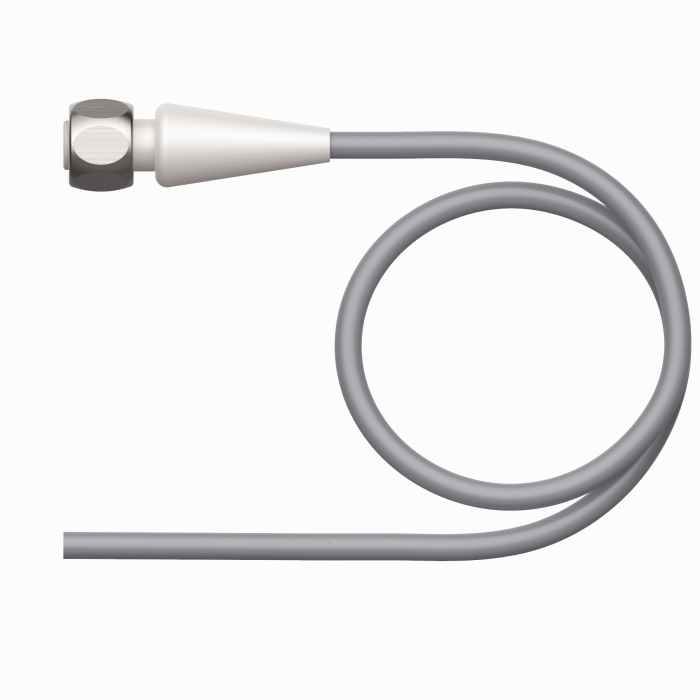

RKH4.4-5/TFG is a TURCK hygienic-design connection cable for food and beverage production, with a straight M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, straight, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, TPE-O, light grey (RAL 7035), Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: grey PP, stainless steel (V4A) coupling nut, FPM/FKM seal
• Environment: IP65, IP67, IP68, IP69 (only when screwed in); -40...+105°C fixed, -25...+105°C mobile, -25...+60°C in a drag chain

The TPE-O jacket is rated for drag chains: at least 4 million bending cycles, up to 3 m/s and 5 m/s², torsion ±180°/m. It resists chemicals, microbes and weathering, is hydrolysis resistant per DIN EN 60068-2-78, stays flexible at low temperatures and is free from halogen, silicone and PVC.

RoHS and REACH compliant, approvals: FDA, Ecolab, GOST.

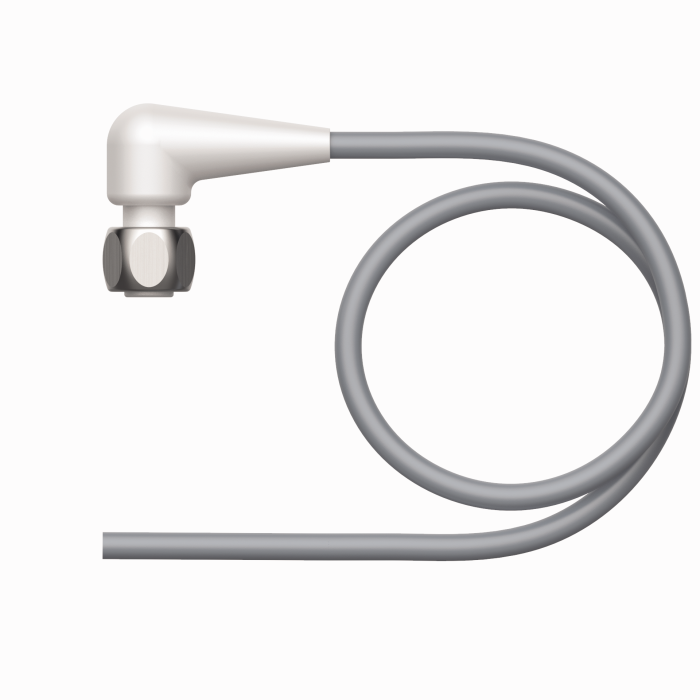

WKH4.4-5/TFE is a TURCK hygienic connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other, for sensors and actuators in food and beverage plants.

• Connector: M12 female, angled, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PVC, grey RAL 7040, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: grey PP, stainless steel (V4A) coupling nut, FPM/FKM seal
• Environment: IP65, IP67, IP68, IP69 (only when screwed in); -25...+80°C fixed, 0...+80°C mobile

Designed for food and beverage areas: the grey PVC jacket (RAL 7040) resists acids, alkalis, oils and chemicals and is flame retardant per DIN EN 60332-1-2 and 60332-2-2. RoHS and REACH compliant. Approvals: GOST, Ecolab.

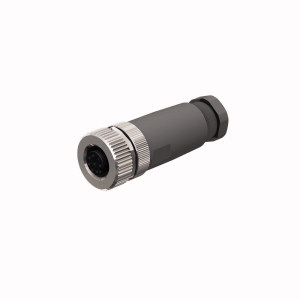

B8181-0 is a TURCK field-wireable M12 female connector, straight, 8-pin, A-coded, for 6...8 mm cable with screw-clamp terminals.

• Connector: M12, female, straight, A-coded, 8-pin, gold-plated CuZn contacts, more than 50 mating cycles
• Ratings: 2 A, 60 V
• Connection: screw-clamp terminals, conductors up to 0.5 mm², cable diameter 6...8 mm, PG9 screw-in thread
• Housing: black PA body, nickel-plated die-cast zinc (GD-Zn) coupling nut, FPM/FKM seals
• Environment: IP67 (screwed together); -40...+85°C fixed

Approval: cULus recognized.

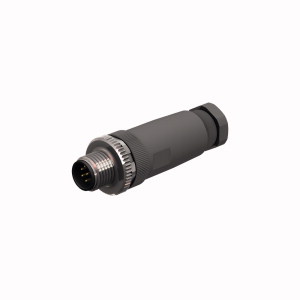

BS8181-0 is a TURCK field-wireable M12 male connector, straight, 8-pin, A-coded, for 6...8 mm cable with screw-clamp terminals.

• Connector: M12, male, straight, A-coded, 8-pin, gold-plated CuZn contacts, more than 100 mating cycles
• Ratings: 2 A, 60 V, contact resistance ≤3 mΩ
• Connection: screw-clamp terminals, conductors up to 0.5 mm², cable diameter 6...8 mm, PG9 screw-in thread
• Housing: black PA body and contact carrier, nickel-plated die-cast zinc (GD-Zn) coupling nut, FPM/FKM seal
• Environment: IP67 (screwed together); -40...+85°C fixed

Approval: cULus recognized.

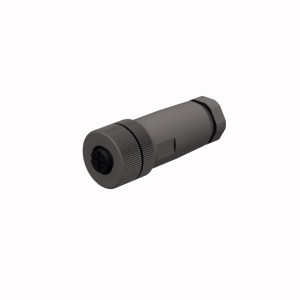

B8151-0 is a TURCK field-wireable M12 female connector, straight, 5-pin, A-coded, for 4...6 mm cable with screw-clamp terminals.

• Connector: M12, female, straight, A-coded, 5-pin, CuZn contacts with Optalloy coating, more than 50 mating cycles
• Ratings: 4 A, 60 V
• Connection: screw-clamp terminals, conductors up to 0.75 mm², cable diameter 4...6 mm, PG7 screw-in thread
• Housing: black PA body and plastic (PA) coupling nut, FPM/FKM seals
• Environment: IP67 (screwed together); -40...+85°C fixed

Approval: cULus recognized.

FHDK 14P5101/S35A is a Baumer standard-size photo sensor with background suppression. It compares where the reflected beam lands on its internal detector, so an object is detected regardless of its colour or surface reflectivity while everything beyond the set distance is ignored.

• Switching distance: 20...350 mm, adjustable by a 10-turn mechanical potentiometer
• Output: PNP, Light/Dark Operate, < 100 mA
• Supply: 10...30 V DC, typical consumption 25 mA
• Housing: rectangular, 14.8 x 43 x 31 mm, plastic (ASA, MABS), PMMA optics
• Environment: IP 67, -25...+65 °C
• Connection: M8 connector, 4-pin

The sensor suits presence and position control in packaging, assembly and sorting machines where the background sits close to the object and dark or glossy surfaces give a standard diffuse sensor a false reading. A flashing light indicator shows insufficient signal margin or a soiled lens, so alignment and maintenance need no instruments. Reciprocal influence is suppressed, so several sensors can be mounted side by side.

Q25S2P6RQ is the receiver of a Banner EZ-BEAM Q25 series opposed-mode photo sensor pair, in the S2 version for sensor bus junctions. Besides the sensing output it has a second PNP output that warns when the received signal becomes marginal.

• Sensing range: 20 m with a Q256EQ emitter
• Output: PNP Light Operate sensing output and PNP NO alarm output, 150 mA total
• Response: 3 ms ON, 1.5 ms OFF; repeatability 375 µs
• Supply: 10-30 V DC, 20 mA
• Housing: PBT polyester, polycarbonate lens, epoxy-encapsulated electronics
• Environment: IP67, NEMA 6P, -40...+70 °C
• Connection: integral M12 4-pin male connector

The alarm output (white wire) conducts when excess gain falls to 1-1.5x in the light condition, so the bus system sees a dirty lens or misalignment before the sensor stops switching. Using it needs a junction with two channels per input. No adjustments are needed. Works with a Q256EQ emitter, ordered separately.

Vibration tested to MIL-STD-202F, method 201A; shock to method 213B.

Q256EQ is the emitter of a Banner EZ-BEAM Q25 series opposed-mode photo sensor pair. It sends an infrared 950 nm beam to a separate Q25 receiver up to 20 m away; an object is detected when it breaks the beam.

• Sensing range: 20 m with a Q25 receiver
• Output: none (emitter)
• Supply: 10-30 V DC, 25 mA
• Housing: PBT polyester, polycarbonate lens, epoxy-encapsulated electronics
• Environment: IP69K, NEMA 6P, -40...+70 °C
• Connection: integral M12 4-pin male connector

The emitter has no output and needs a Q25 receiver, ordered separately.

Vibration tested to MIL-STD-202F, method 201A; shock to method 213B.
