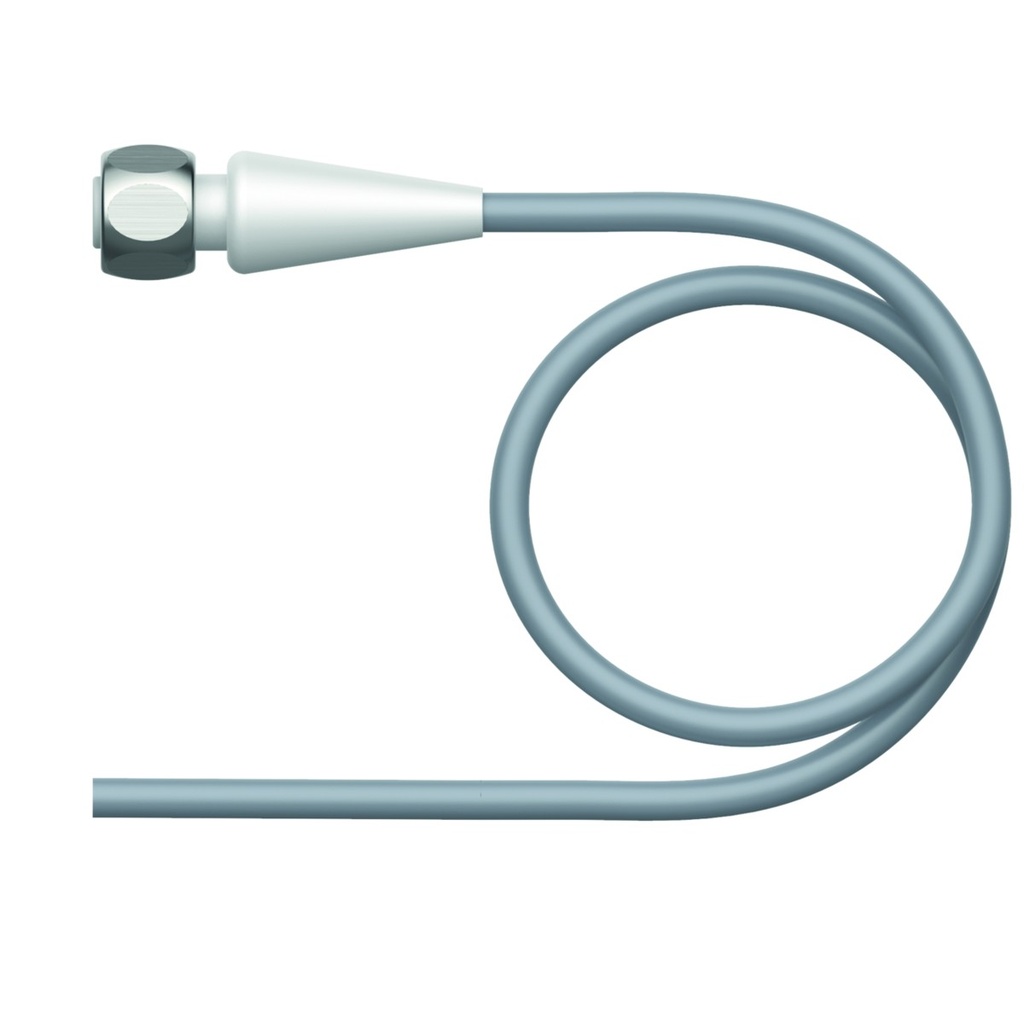

Connection cable RKH4.4-10/TFG, M12, female, straight, 4-pin, 10m TPE

RKH4.4-10/TFG is a TURCK hygienic-design connection cable for food and beverage production, with a straight M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, straight, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, TPE-O, light grey (RAL 7035), Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: grey PP, stainless steel (V4A) coupling nut, FPM/FKM seal
• Environment: IP65, IP67, IP68, IP69 (only when screwed in); -40...+105°C fixed, -25...+105°C mobile, -25...+60°C in a drag chain

The TPE-O jacket is rated for drag chains: at least 4 million bending cycles, up to 3 m/s and 5 m/s², torsion ±180°/m. It resists chemicals, microbes and weathering, is hydrolysis resistant per DIN EN 60068-2-78, stays flexible at low temperatures and is free from halogen, silicone and PVC.

RoHS and REACH compliant, approvals: FDA, Ecolab, GOST.
