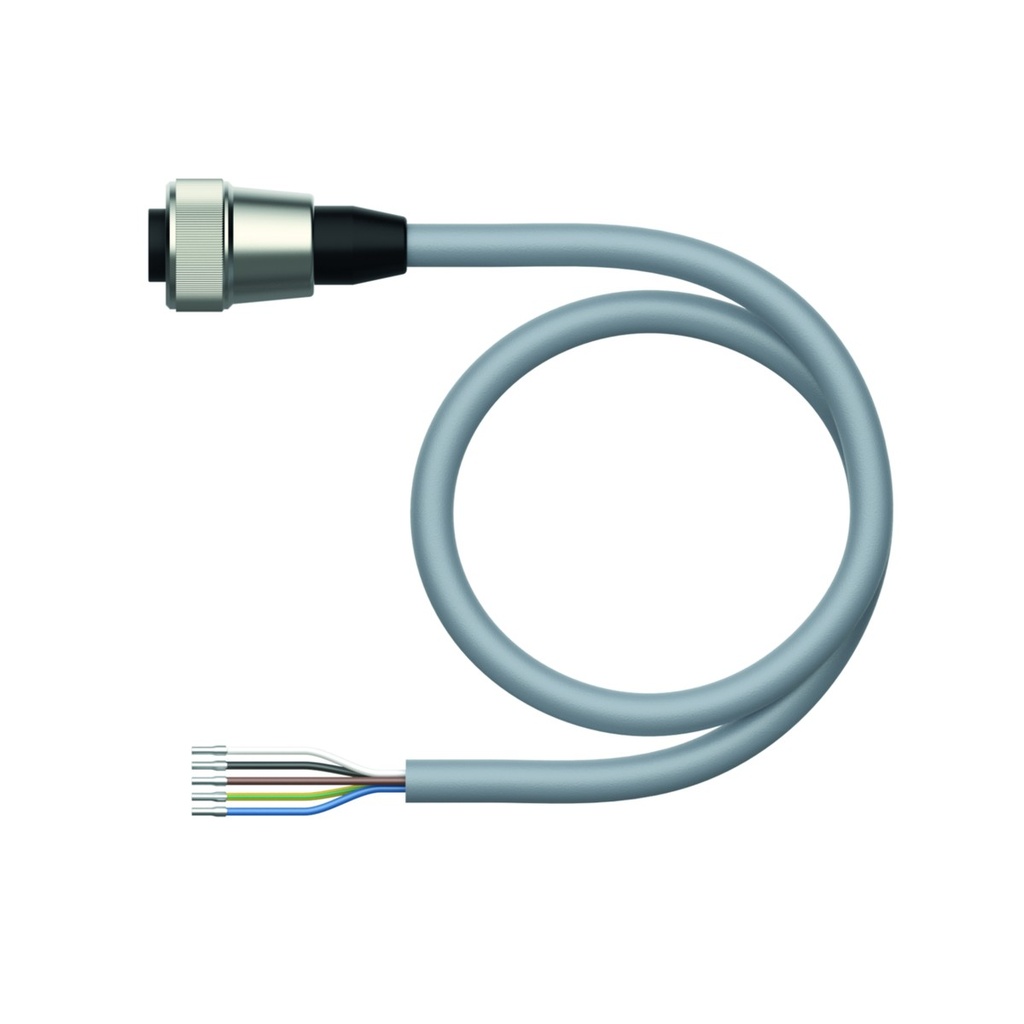

Connection cable RKM52-2M, 7/8", female, straight, 5-pin, 2m PUR

RKM52-2M is a TURCK power supply cable with a straight 7/8" female connector (4 pins + PE) on one end and open cores on the other. The 1.5 mm² cores and 10 A rating let one cable feed power to several devices.

• Connector: 7/8"-16 UN, female, straight, 4 pins + PE, gold-plated brass (CuZn) contacts
• Cable: 2 m, PUR, grey, Ø 8.5 mm, 5 x 1.5 mm², core colours BN, WH, BU, BK, GNYE
• Ratings: 10 A, 300 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut
• Environment: IP67 (only when screwed in); -25...+80°C fixed, mobile and in a drag chain

The cable is rated for drag chains (at least 5 million bending cycles, up to 5 m/s², bending radius ≥10 x Ø). It is oil resistant, flame retardant and halogen free.

CE, UKCA and UL approved.
