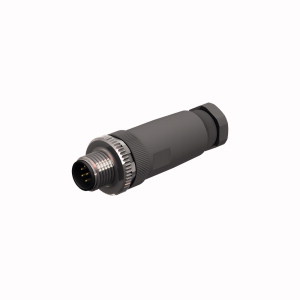

Connector BS8181-0, M12 male straight, 8-pin A-coded, screw terminal, 6...8mm cable, IP67

BS8181-0 is a TURCK field-wireable M12 male connector, straight, 8-pin, A-coded, for 6...8 mm cable with screw-clamp terminals.

• Connector: M12, male, straight, A-coded, 8-pin, gold-plated CuZn contacts, more than 100 mating cycles
• Ratings: 2 A, 60 V, contact resistance ≤3 mΩ
• Connection: screw-clamp terminals, conductors up to 0.5 mm², cable diameter 6...8 mm, PG9 screw-in thread
• Housing: black PA body and contact carrier, nickel-plated die-cast zinc (GD-Zn) coupling nut, FPM/FKM seal
• Environment: IP67 (screwed together); -40...+85°C fixed

Approval: cULus recognized.
