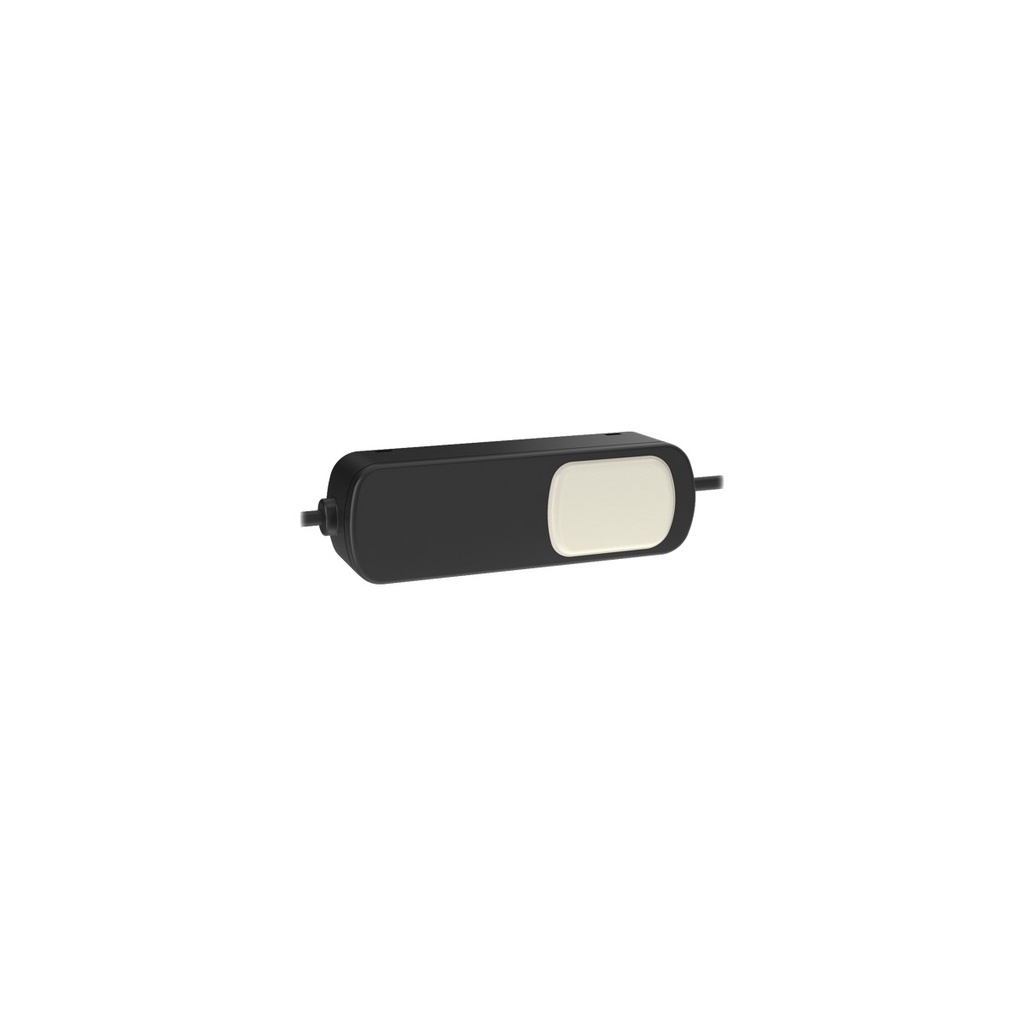

Pick-to-light device PTL110S-FF200L-QP150, 200 mm fixed field, RGB, Modbus RTU, 10-30VDC, IP54, 2x M12 4-pin

PTL110S-FF200L-QP150 is a Banner PTL110 series pick-to-light device with an RGB indicator and a 200 mm fixed-field infrared sensor, controlled over RS-485 Modbus RTU with PICK-IQ. The indicator shows the operator which bin to pick from, and the sensor confirms the hand reaching into it.

• Indicator: RGB, up to 14 colours; pick, acknowledge, mis-pick and job lights programmable
• Sensor: 200 mm fixed field, infrared 870 nm
• Communication: RS-485 Modbus RTU, PICK-IQ
• Supply: 10-30 V DC, 50 mA at 24 V DC, 1.35 W maximum
• Housing: ABS, polycarbonate indicator, acrylic lens, 110 x 35 x 33.1 mm
• Environment: IP54, -40...+50 °C
• Connection: two 150 mm PVC cables, M12 4-pin male and M12 4-pin female

The male and female pigtails let devices be daisy-chained along a picking shelf on one RS-485 line. The device needs a Modbus RTU host with PICK-IQ to set colours and read the sensor; it has no touch button and no display.

UL, CE and UKCA approved; FCC Part 15 Class B.
