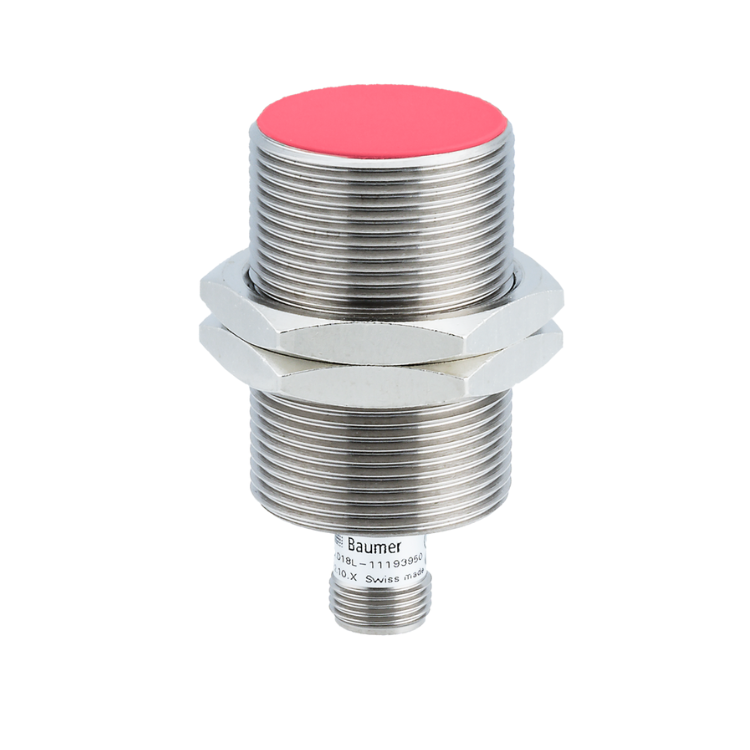

Inductive sensor IGYX 30P17B3/S14L, Sn=15mm, 10-30VDC, PNP NO, flush, M12 connector, L=60mm, IP67

IGYX 30P17B3/S14L is a Baumer inductive proximity sensor in an M30 barrel with a 15 mm nominal sensing distance and a PNP normally open (NO) output. The sensing face is flush mountable and the nickel-plated brass housing is 60 mm long.

• Sensing distance: 15 mm (Sn), assured 12 mm (Sa)
• Output: PNP, normally open (NO), 200 mA, with short-circuit and reverse-polarity protection
• Supply: 10...30 V DC, current consumption up to 15 mA with no load
• Housing: M30 thread, nickel-plated brass, PBT sensing face, 60 mm long, flush mountable
• Environment: IP 67, operating temperature -25...+75 °C
• Connection: M12 connector

The 15 mm sensing distance keeps the sensor clear of the moving part - end-position monitoring on hydraulic and pneumatic cylinders, gates and pallets. Switching frequency is 400 Hz, so this model is not suited to counting the teeth of a fast rotating gear. Tightening torque on the M30 thread must not exceed 60 Nm, and the switching point drifts by up to ±10 % of Sr across the temperature range, which matters when the target sits close to the 15 mm limit.

Complies with the EMC requirements of EN 60947-5-2:2007.
