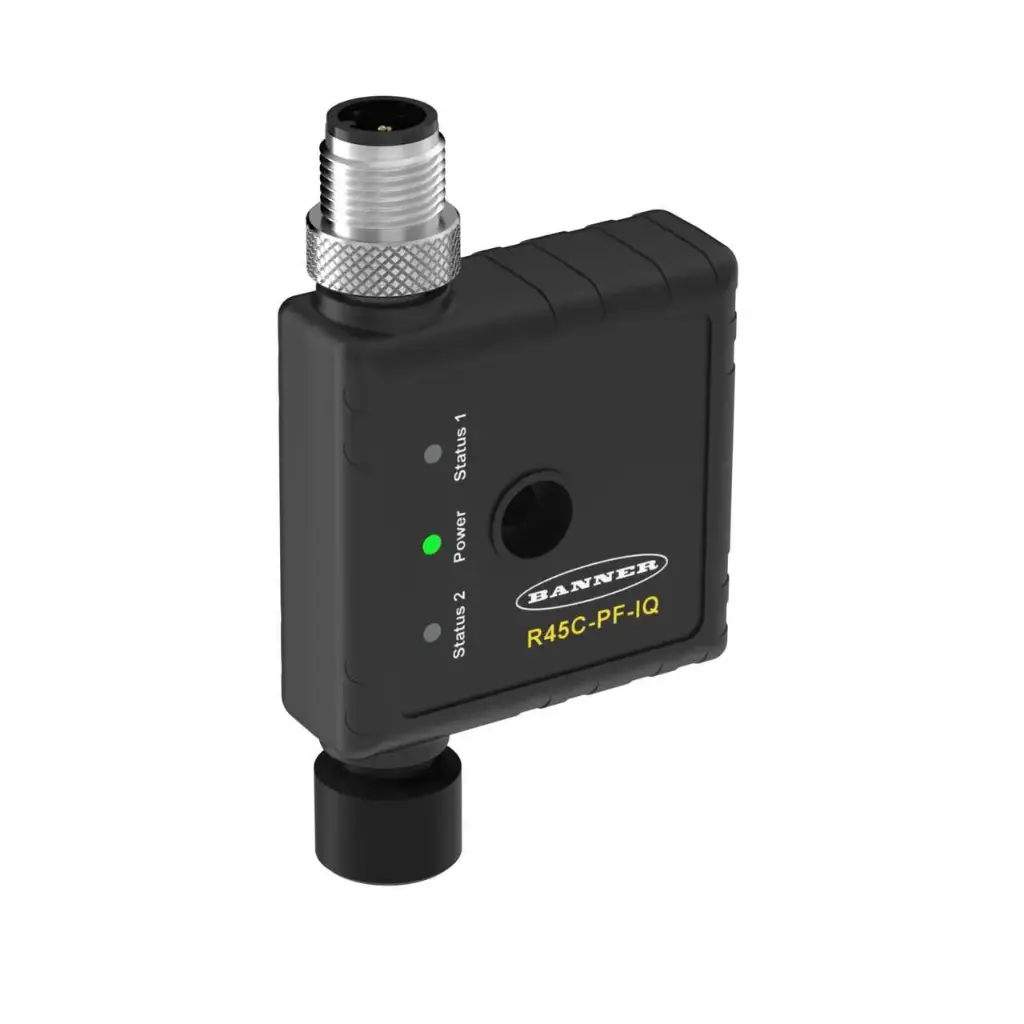

Signal converter R45C-PF-IQ, PFM to 4-20mA, 12-30VDC, M12 5-pin

R45C-PF-IQ is a Banner R45C series in-line converter that turns the pulse-frequency modulated (PFM) output of a sensor into a 4-20 mA analog current. It lets a sensor with a PFM output feed a standard analog input.

• Precision: accuracy 0.5 %, resolution 14 bit
• Input: PFM 100...600 Hz
• Output: analog current 4...20 mA
• Supply: 12...30 VDC, max. 50 mA
• Housing: over-moulded PVC body, nickel-plated brass coupling nuts
• Environment: IP65, IP67, IP68, -40...+70 °C
• Connection: integral 5-pin M12 male and female

Two amber LEDs show whether the PFM input and the analog output are within their valid range; both go off when no sensor is connected.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).
