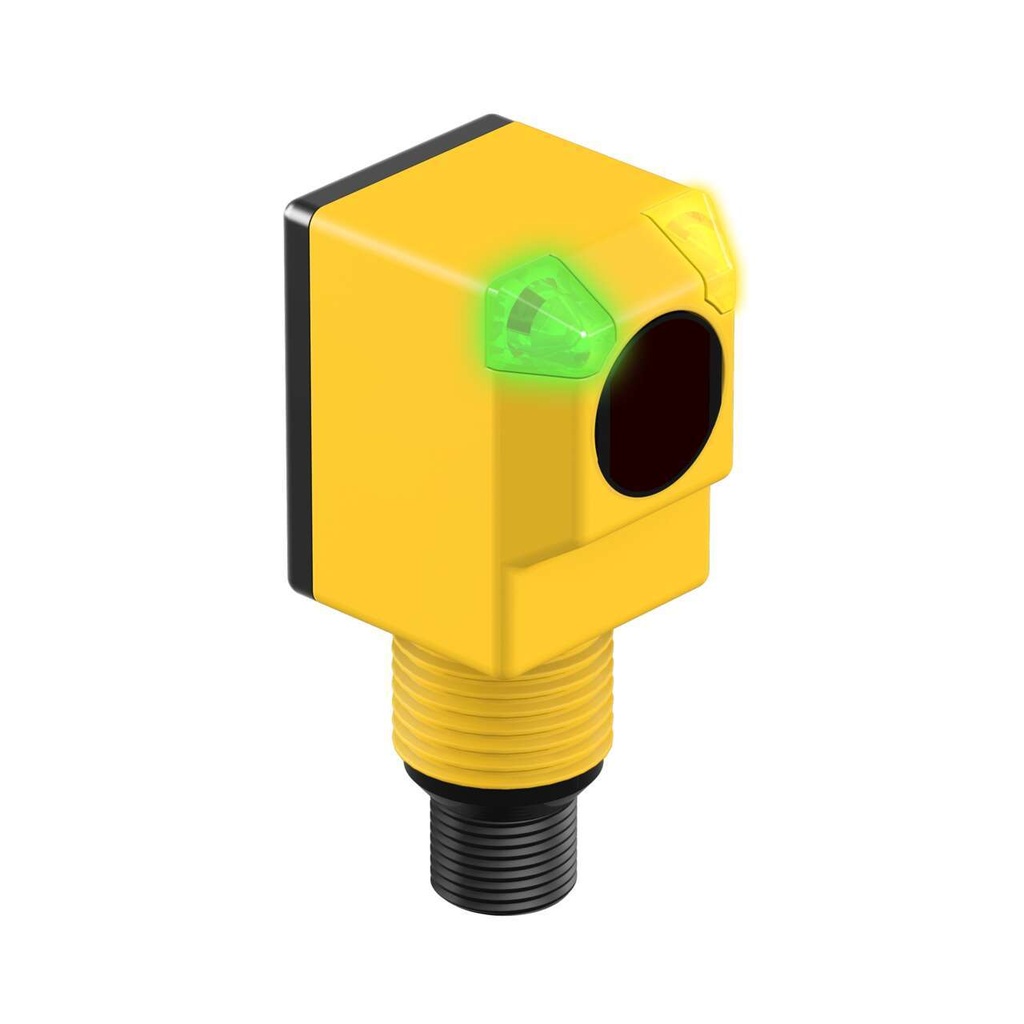

Photo sensor - emitter Q256EQ, 20 m, infrared, 10-30VDC, M12 4-pin

Q256EQ is the emitter of a Banner EZ-BEAM Q25 series opposed-mode photo sensor pair. It sends an infrared 950 nm beam to a separate Q25 receiver up to 20 m away; an object is detected when it breaks the beam.

• Sensing range: 20 m with a Q25 receiver
• Output: none (emitter)
• Supply: 10-30 V DC, 25 mA
• Housing: PBT polyester, polycarbonate lens, epoxy-encapsulated electronics
• Environment: IP69K, NEMA 6P, -40...+70 °C
• Connection: integral M12 4-pin male connector

The emitter has no output and needs a Q25 receiver, ordered separately.

Vibration tested to MIL-STD-202F, method 201A; shock to method 213B.
