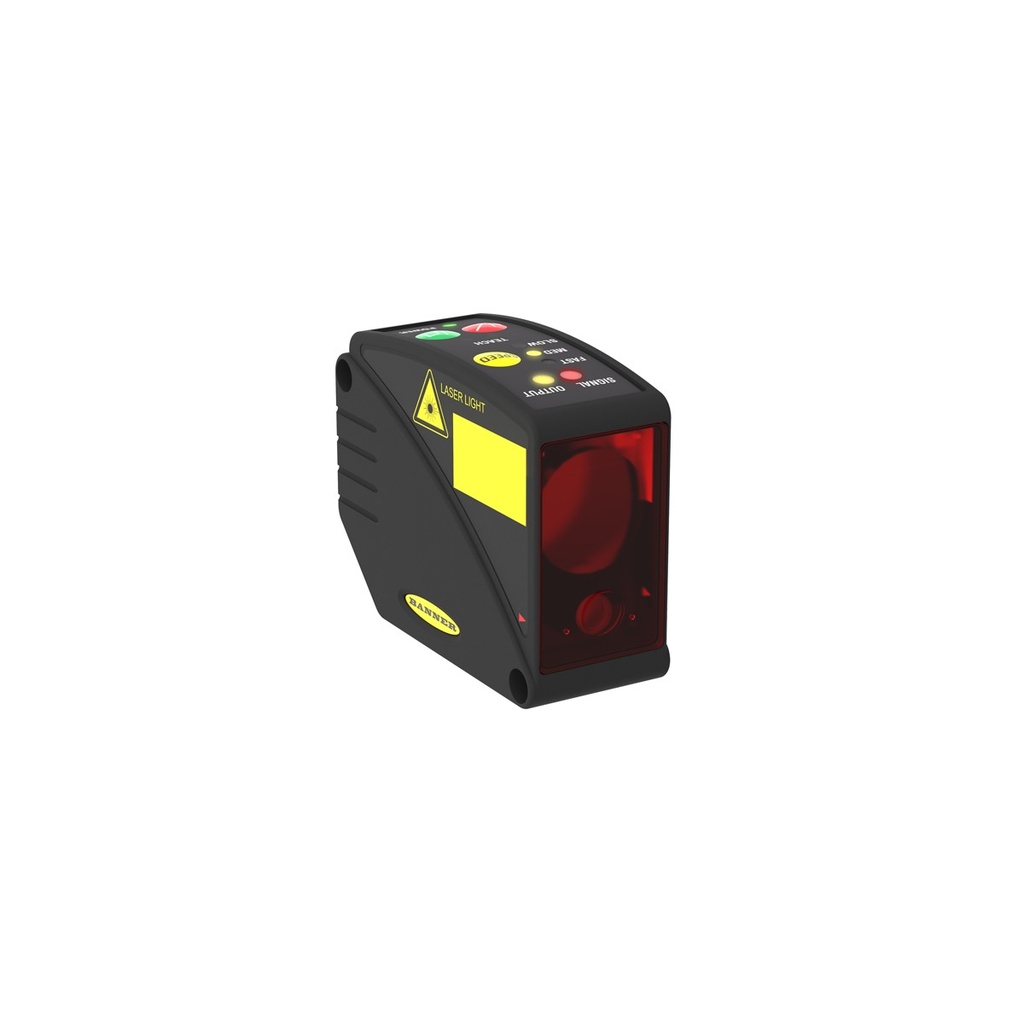

Laser distance sensor LT3PUQ-79783, 0.3...5 m, 0-10V, PNP, M12 8-pin

LT3PUQ-79783 is a Banner L-GAGE LT3 time-of-flight laser sensor with a 0-10 V analog output and a PNP discrete output, each with its own taught window. The analog signal is scaled across the programmed window, so a short window still uses the full 0-10 V.

• Accuracy: linearity ±30 mm (0.3...1.5 m), ±20 mm (1.5...5 m) at 24 V DC, 22 °C, white card; temperature effect < 2 mm/°C
• Measuring range: 0.3...5 m (90 % white), 0.3...3 m (18 % grey), 0.3...2 m (6 % black); minimum window 20 mm
• Outputs: analog 0-10 V; discrete PNP, 100 mA; response 1, 10 or 100 ms
• Supply: 12...24 V DC, max. 108 mA at 24 V DC; protected against reverse polarity
• Housing: ABS, acrylic window; Class 2 red laser 658 nm, beam Ø 6 mm
• Environment: IP67, NEMA 6, 0...+50 °C
• Connection: M12 8-pin swivel connector

Window limits are taught with the push buttons or the remote wire, and the red wire enables or disables the laser. Allow 30 minutes of warm-up before programming.
