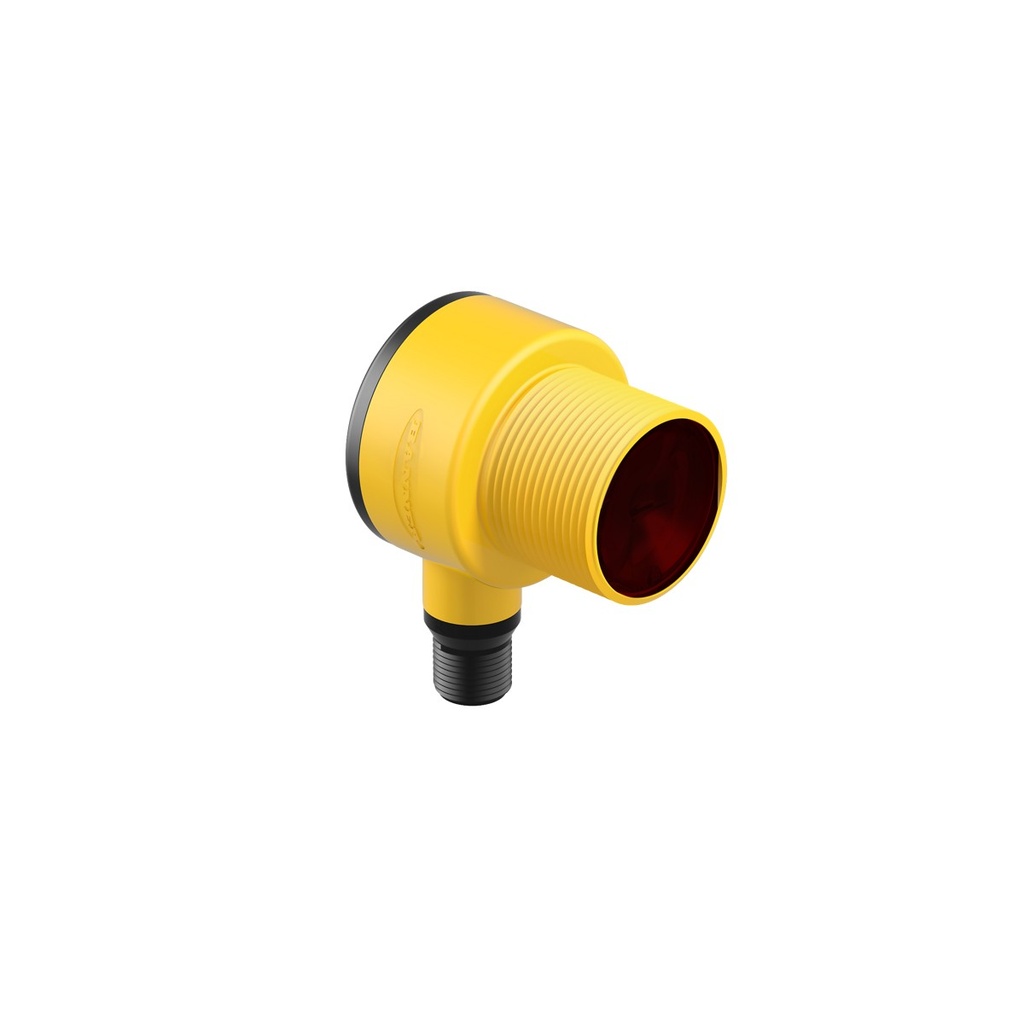

Photo sensor - emitter T306EQ, opposed 60 m, infrared, 10-30VDC, M12 4-pin, IP69K

T306EQ is the emitter of a Banner T30 series opposed-mode photo sensor pair, in a right-angle housing with a 30 mm threaded lens. Its infrared 950 nm beam reaches a separate T30 receiver up to 60 m away, so the pair can span wide conveyors and doorways.

• Sensing range: 60 m with a T30 receiver
• Output: none (emitter)
• Supply: 10-30 V DC, 25 mA
• Housing: right-angle, M30x1.5 thread, PBT polyester, epoxy-encapsulated, jam nut included
• Environment: IP69K, NEMA 4X, -40...+70 °C
• Connection: integral M12 4-pin male connector

The emitter uses only the brown and blue wires; pins 2 and 4 are not connected. A green LED shows power.

Vibration tested to MIL-STD-202F, method 201A; shock to method 213B (75 g operating). UL, CE and UKCA approved.
