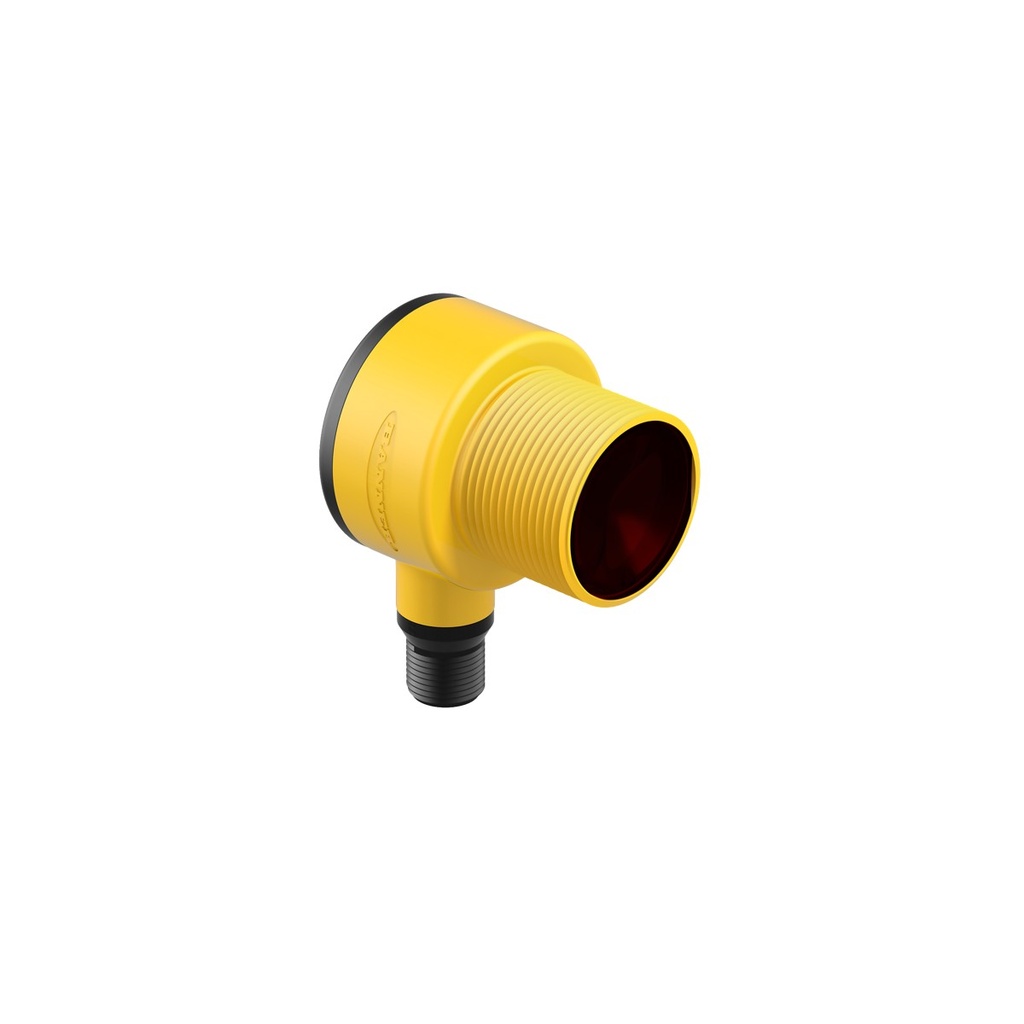

Photo sensor - receiver T30SP6RQ, opposed 60 m, PNP NO/NC, 10-30VDC, M12 4-pin, IP69K

T30SP6RQ is the receiver of a Banner T30 series opposed-mode photo sensor pair, in a right-angle housing with a 30 mm threaded lens. It switches when an object breaks the infrared beam from a separate T30 emitter up to 60 m away.

• Sensing range: 60 m with a T30 emitter
• Output: complementary PNP, Light Operate (black) and Dark Operate (white), 150 mA each
• Response: 3 ms ON, 1.5 ms OFF; repeatability 375 µs
• Supply: 10-30 V DC, 20 mA
• Housing: right-angle, M30x1.5 thread, PBT polyester, epoxy-encapsulated, jam nut included
• Environment: IP69K, NEMA 4X, -40...+70 °C
• Connection: integral M12 4-pin male connector

Needs a T30 emitter, ordered separately. The white-wire output can be wired as a normally open marginal-signal alarm instead of Dark Operate. A green LED shows power and flashes on output overload; the amber LED shows the NO output is on and flashes at marginal excess gain.

Vibration tested to MIL-STD-202F, method 201A; shock to method 213B (75 g operating). UL, CE and UKCA approved.
