T18-2VPFF100-Q8 is a Banner T18-2 series fixed-field photo sensor with a 100 mm cutoff and a visible red beam, in a right-angle 18 mm housing for washdown areas. It detects objects closer than the cutoff and ignores everything beyond it, so a background just behind the target does not switch the output.

• Sensing range: 100 mm cutoff, fixed
• Output: complementary PNP, Light Operate (black wire) and Dark Operate (white wire), 100 mA total (50 mA above +55 °C)
• Response: 2 ms ON, 2 ms OFF; repeatability 200 µs
• Supply: 10-30 V DC (10-24 V DC above +55 °C), < 16 mA
• Housing: right-angle, M18x1 thread, PBT polyester, PMMA window, epoxy-encapsulated electronics
• Environment: IP67, IP68, IP69K, -40...+70 °C
• Connection: integral M12 4-pin male connector

On dark targets the cutoff moves slightly closer: to 95 % of the nominal distance on an 18 % grey card and 90 % on a 6 % black card. There is no sensitivity adjustment. A green LED shows power and flashes at a marginal signal; the amber LED shows that the black-wire output is on.

ECOLAB certified chemical compatibility. Vibration tested to MIL-STD-202G, method 201A; shock to method 213B (75 g operating).

RSSD-RJ45S-4422-1M is a TURCK Industrial Ethernet cable with a straight M12 male connector on one end and a straight RJ45 male connector on the other (4-pin). The 4-wire CAT 5e cable carries 100 Mbit/s Ethernet and PROFINET.

• Connectors: M12 x 1 male, straight, D-coded / RJ45 male, straight; 4-pin
• Cable: 1 m, PUR, green, Ø 6.5 mm, 4 x 0.32 mm², core colours WH, YE, BU, OG, overall shield of aluminium foil and tinned copper braid
• Ratings: 1.5 A, 42 V DC; CAT 5e, impedance 100 Ω, capacitance 50 pF/m
• Housing: TPU, nickel-plated brass coupling nut
• Environment: M12 IP67 (only when screwed in), RJ45 IP20; -40...+80°C fixed, -30...+80°C mobile
• Drag chain: at least 5 million bending cycles, bending radius ≥15 x Ø, torsion ±180°/m

The green PUR jacket is halogen free (IEC 60754), oil resistant (IEC 60811-2-1) and flame retardant (IEC 60332-1-2); the cable is RoHS compliant and PNO compliant for PROFINET. Approval: UL Listed.

QS18VP6AF350Q5 is a Banner QS18 series photo sensor with adjustable background suppression and a visible red 640 nm LED beam. Objects up to the set cutoff are detected regardless of colour, while anything beyond it is ignored.

• Sensing range: cutoff adjustable 30-350 mm
• Output: complementary PNP, Light Operate and Dark Operate, 100 mA total
• Response: 2.8 ms ON/OFF; repeatability 250 µs
• Supply: 10-30 V DC, < 16 mA
• Housing: ABS, acrylic lens
• Environment: IP67, -20...+55 °C
• Connection: 150 mm PVC cable with M12 4-pin male connector

The cutoff distance is set with a five-turn adjustment screw. A crosstalk algorithm lets two sensors work close to each other. A green LED indicator shows power; the amber one shows light sensed and flashes at a marginal condition.

QS30FF200Q is a Banner QS30 series fixed-field photo sensor with a visible red 680 nm beam and a 200 mm cutoff. It compares the light returned to a near and a far detector, so it detects low-reflectivity objects in front of the cutoff and ignores the background behind it.

• Sensing range: 200 mm cutoff, tolerance ±5 %; spot 7 mm at cutoff
• Output: bipolar, one PNP and one NPN, Light or Dark Operate selected by the grey wire, 100 mA each
• Response: 2 ms; repeatability 500 µs
• Supply: 10-30 V DC, < 40 mA
• Housing: ABS, acrylic lens, M30x1.5 threaded barrel or side mounting, 3 mm hardware included
• Environment: IP67, NEMA 6, -20...+70 °C
• Connection: integral M12 5-pin male connector

The cutoff is fixed, so the sensor needs no sensitivity adjustment; backgrounds must sit beyond 200 mm, and mirror-like backgrounds can cause false switching. Grey wire open or high gives Light Operate, low gives Dark Operate. A large amber LED on the back shows the output state.

Vibration tested to MIL-STD-202F, method 201A; shock to IEC 60947-5-2.

SM312WQD is a Banner MINI-BEAM divergent diffuse photo sensor with an infrared 880 nm beam and a 130 mm range. The wide beam detects objects by the light they reflect back, without precise aiming at the target.

• Sensing range: 130 mm
• Output: bipolar, one PNP and one NPN, Light or Dark Operate selected by switch, 150 mA each (100 mA at +70 °C)
• Response: 1 ms; repeatability 0.3 ms
• Supply: 10-30 V DC, < 25 mA
• Housing: reinforced thermoplastic polyester, fully encapsulated, o-ring sealed, acrylic lens
• Environment: IP67, -20...+70 °C
• Connection: integral M12 4-pin male connector

Sensitivity is set with a 15-turn potentiometer and the LO/DO switch, both under a gasketed clear cover on the rear panel. The rear AID LED pulses faster as the received signal gets stronger, which helps when setting up.

RKS4.5T-5/TXY3013 is a TURCK shielded connection cable with a straight M12 female connector (5-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, straight, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, yellow, Ø 5.7 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, yellow, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

PKG3M-10-PSG3M/TXL is a TURCK connection cable with a black PUR jacket rated for drag chains.

• Connectors: M8 x 1 female (3-pin) and M8 x 1 male (3-pin), both straight, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Cable: 10 m, PUR, black, Ø 4.1 mm, 3 x 0.34 mm², PP core insulation, core colours BN, BU, BK
• Ratings: 4 A, 50 V AC/60 V DC
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

PKG4M-0.3-PSG3M/TXL is a TURCK connection cable with a black PUR jacket rated for drag chains. The female end is 4-pin and the male end 3-pin; the cable carries three cores (BN, BU, BK).

• Connectors: M8 x 1 female (4-pin) and M8 x 1 male (3-pin), both straight, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Cable: 0.3 m, PUR, black, Ø 4.1 mm, 3 x 0.34 mm², PP core insulation, core colours BN, BU, BK
• Ratings: 4 A, 50 V AC/60 V DC
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

PKG3M-8-PSG3M/TXL is a TURCK connection cable with a black PUR jacket rated for drag chains.

• Connectors: M8 x 1 female (3-pin) and M8 x 1 male (3-pin), both straight, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Cable: 8 m, PUR, black, Ø 4.1 mm, 3 x 0.34 mm², PP core insulation, core colours BN, BU, BK
• Ratings: 4 A, 50 V AC/60 V DC
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

RKC4.4T-2-PSG4M/TXL is a TURCK connection cable with a straight M12 female connector on one end and a straight M8 male connector on the other (4-pin).

• Connectors: M12 x 1 female, A-coded / M8 x 1 male, both straight, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC/60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nuts, FPM/FKM seal; M8 tightening torque 0.5...0.6 Nm
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

PKG3M-3-PSG3M/TXL is a TURCK connection cable with a black PUR jacket rated for drag chains.

• Connectors: M8 x 1 female (3-pin) and M8 x 1 male (3-pin), both straight, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Cable: 3 m, PUR, black, Ø 4.1 mm, 3 x 0.34 mm², PP core insulation, core colours BN, BU, BK
• Ratings: 4 A, 50 V AC/60 V DC
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

RKC4.4T-5-PSG4M/TXL is a TURCK connection cable with a straight M12 female connector on one end and a straight M8 male connector on the other (4-pin).

• Connectors: M12 x 1 female, A-coded / M8 x 1 male, both straight, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC/60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nuts, FPM/FKM seal; M8 tightening torque 0.5...0.6 Nm
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

PKG4M-8-PSG4M/TXL is a TURCK M8 connection cable with a black PUR jacket rated for drag chains.

• Connectors: M8 x 1 female and M8 x 1 male, both straight, 4-pin each, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Cable: 8 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², PP core insulation, core colours BN, WH, BU, BK
• Ratings: 4 A, 50 V AC/60 V DC
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

PKG4M-5-PSG4M/TXL is a TURCK M8 connection cable with a black PUR jacket rated for drag chains.

• Connectors: M8 x 1 female and M8 x 1 male, both straight, 4-pin each, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Cable: 5 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², PP core insulation, core colours BN, WH, BU, BK
• Ratings: 4 A, 50 V AC/60 V DC
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

LTF12KC2LDQ is a Banner LTF time-of-flight laser distance sensor with two discrete outputs and IO-Link, rated to 12 m on a white target. A two-line display shows the live distance in Run mode.

• Accuracy: ±10 mm to 12 m (90 % white), to 7 m (18 % grey), to 4 m (6 % black); temperature effect ±0.25 mm/°C
• Measuring range: 50...12000 mm (white), 50...11000 mm (grey), 50...7000 mm (black); resolution < 0.3...3 mm
• Outputs: 2 discrete, both NPN or both PNP, 100 mA; IO-Link (Smart Sensor Profile, 38.4 kbaud); response 1.5...256 ms
• Supply: 12...30 V DC, < 85 mA at 24 V DC
• Housing: die-cast zinc, acrylic window; Class 2 red laser 660 nm, ambient light immunity > 40000 lux
• Environment: IP67, -20...+55 °C
• Connection: rotatable M12 5-pin connector

Window limits are taught with the buttons or the remote wire, and the laser can be switched off through the remote input. Allow 15 minutes of warm-up for best performance.

Vibration per MIL-STD-202G method 201A, shock per method 213B (100 g). UL and CE; laser per IEC 60825-1:2014.

RKP54PLB-2/TXG is a TURCK M12 power cable with a straight L-coded female connector (4 pins + FE) on one end and open cores on the other. The L-coding and 2.5 mm² cores are made for supply runs of up to 16 A.

• Connector: M12 x 1, female, straight, L-coded, 4 pins + FE, gold-plated copper-nickel (CuNi) contacts
• Cable: 2 m, PUR, grey, Ø 9.8 mm, 5 x 2.5 mm², core colours BN, WH, BU, BK, PK
• Ratings: 16 A, 50 VAC/60 VDC, more than 100 mating cycles
• Housing: black TPE, PBT GF contact carrier, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP65, IP67, IP69K (only when screwed in); -40...+80°C fixed, -30...+80°C mobile, -20...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 10 million bending cycles, up to 5 m/s², bending radius ≥7 x Ø, torsion ±30°/m. It resists oils, coolants, lubricants and emulsions, vibration and shock, is flame retardant and halogen free.

Approval: cULus. RoHS compliant.

BWA-UCT-900 is a Banner Sure Cross adapter cable that connects a Gateway, a MultiHop radio or an RS-485 sensor to the USB port of a Windows PC for configuration. The supplied wall plug powers the connected device at 24 V DC, which a radio transmitting at 1 W needs and the USB port alone cannot supply.

• Connectors: USB 2.0 type A plug and M12 4-pin female for RS-485 (2-wire)
• Communication: 9600, 19200 or 38400 baud, 8 data bits, 1 stop bit, no parity
• Power: input 5 V DC from USB and 100...240 V AC from the wall plug; output 24 V DC for one device transmitting at 1 W
• Included: 1 m cable and MQDMC-401 cordset for DX80...C models
• Environment: 0...+50 °C, up to 95 % RH non-condensing

On first connection the driver installs automatically within 1-2 minutes. Connecting supply voltage to the communication pins causes permanent damage.

FCC Part 15 Class B and ICES-003(B); CE and UKCA marked.

STP-M12D-406 is a Banner double-ended cordset with a straight 4-pin D-coded M12 male connector at one end and a straight RJ45 plug at the other. The shield is tied to the M12 coupling nut.

• Connectors: M12x1, male, straight, D-coded, 4 pins, large body, nickel-plated brass nut / RJ45, male, straight, 8 pins
• Cable: 1.83 m, teal, Ø 6.2 mm, 24 AWG, shielded
• Ratings: 1.5 A, 60 V DC
• Environment: IP67, -40...+70 °C

CE marked.

MQDEC-406SS is a Banner double-ended M12 cordset with a straight 4-pin female connector at one end and a straight 4-pin male connector at the other.

• Connectors: M12x1, female straight / male straight, A-coded, 4 pins; nickel-plated brass coupling nuts, black PUR body
• Cable: 1.83 m, black PVC, Ø 5.21 mm, 4 x 22 AWG; wire colours brown, white, blue, black
• Ratings: 4 A; bend radius static 5x, dynamic 10x the outer diameter
• Environment: IP66, IP67, IP68, -40...+70 °C

UL and cUL listed (CYJV.E230439). Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).

MQDEC-430RS is a Banner double-ended M12 cordset with a straight 4-pin female connector at one end and a right-angle 4-pin male connector at the other.

• Connectors: M12x1, female straight / male right-angle, A-coded, 4 pins; nickel-plated brass coupling nuts, black PUR body
• Cable: 9.14 m, black PVC, Ø 5.21 mm, 4 x 22 AWG; wire colours brown, white, blue, black
• Ratings: 4 A; bend radius static 5x, dynamic 10x the outer diameter
• Environment: IP66, IP67, IP68, -40...+70 °C

UL and cUL listed (CYJV.E230439). Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).

PVS28D100QP is a Banner PVS28 parts verification sensor and multicolour indicator in one 28 mm wide, 100 mm long housing. Two infrared beams detect a hand or object up to a set distance and ignore everything beyond it, so a bin can be confirmed touchlessly.

• Sensing range: 20...500 mm, up to 1000 mm in retroreflective mode
• Output: PNP or NPN, 150 mA
• Response: 120 ms (240 ms in retroreflective mode)
• Supply: 12-30 V DC, 35 mA typical at 24 V DC
• Housing: polycarbonate, ABS end caps, 2 beams at 50 mm spacing
• Environment: IP54, -20...+50 °C
• Connection: 150 mm PVC cable with M12 5-pin male connector

The switch point is taught through the grey remote-input wire. Colours, flash patterns and output behaviour (latching, ON or OFF delay) are set with Banner Pro Editor software and the Pro Converter Cable, ordered separately.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27.

RKS4.4T-5-RSS4.4T/TXL is a TURCK shielded M12 connection cable with a straight female connector on one end and a straight male connector on the other (4-pin, A-coded). The cable shield is connected to the coupling nuts.

• Connectors: M12 x 1 female / male, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 5.3 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nuts, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

PKGH3M-15/TFE is a TURCK hygienic-design connection cable for food and beverage production, with a straight M8 female connector (3-pin) on one end and open cores on the other.

• Connector: M8 x 1, female, straight, 3-pin, gold-plated brass (CuZn) contacts
• Cable: 15 m, PVC, grey (RAL 7040), Ø 4 mm, 3 x 0.25 mm², core colours BN, BU, BK
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: grey PP, stainless steel (V4A) coupling nut, FPM/FKM seal
• Environment: IP65, IP67, IP68, IP69 (only when screwed in); -25...+80°C fixed, 0...+80°C mobile

The jacket resists acids, alkalis, oils and chemicals and is flame retardant per DIN EN 60332-1-2 and DIN EN 60332-2-2. RoHS and REACH compliant, approvals: Ecolab, GOST.

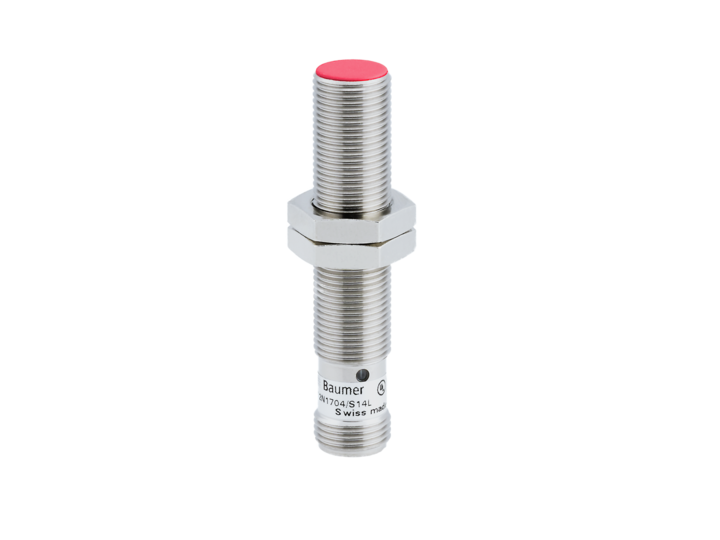

IGYX 12N17B1/S14L is a Baumer inductive proximity sensor in an M12 barrel with a 4 mm nominal sensing distance and a NPN normally open (NO) output. The sensing face is flush mountable and the nickel-plated brass housing is 60 mm long.

• Sensing distance: 4 mm (Sn), assured 3.2 mm (Sa)
• Output: NPN, normally open (NO), 200 mA, with short-circuit and reverse-polarity protection
• Supply: 10...30 V DC, current consumption up to 15 mA with no load
• Housing: M12 thread, nickel-plated brass, PBT sensing face, 60 mm long, flush mountable
• Environment: IP 67, operating temperature -25...+75 °C
• Connection: M12 connector

The sensor is intended for presence and end-position monitoring of metal parts on conveyors, pneumatic cylinders and indexing mechanisms. Switching frequency is 1.5 kHz. Tightening torque on the M12 thread must not exceed 10 Nm, and the switching point drifts by up to ±10 % of Sr across the temperature range, which matters when the target sits close to the 4 mm limit.

Complies with the EMC requirements of EN 60947-5-2:2007.

IGYX 12P17B1/S14L is a Baumer inductive proximity sensor in an M12 barrel with a 4 mm nominal sensing distance and a PNP normally open (NO) output. The sensing face is flush mountable and the nickel-plated brass housing is 60 mm long.

• Sensing distance: 4 mm (Sn), assured 3.2 mm (Sa)
• Output: PNP, normally open (NO), <200 mA, with short-circuit and reverse-polarity protection
• Supply: 10...30 V DC, current consumption up to 15 mA with no load
• Housing: M12 thread, nickel-plated brass, PBT sensing face, 60 mm long, flush mountable
• Environment: IP 67, operating temperature -25...+75 °C
• Connection: M12 connector

The sensor is intended for presence and end-position monitoring of metal parts on conveyors, pneumatic cylinders and indexing mechanisms. Switching frequency is <1.5 kHz. Tightening torque on the M12 thread must not exceed 10 Nm, and the switching point drifts by up to ±10 % of Sr across the temperature range, which matters when the target sits close to the 4 mm limit.

Complies with the EMC requirements of EN 60947-5-2:2007.

IM12-DI01-2S-2T-0/24VDC is a 2-channel TURCK isolating switching amplifier in a 12.5 mm housing with two potential-free transistor outputs up to 10 kHz. It runs either as two separate channels or with channel 1 doubled onto both outputs.

• Channels: 2 inputs for NAMUR sensors (EN 60947-5-6) or potential-free contacts
• Outputs: 2 potential-free, short-circuit-proof transistors, ≤30 V DC, 0.1 A, ≤10 kHz
• Supply: 10...30 V DC, ≤0.8 W
• Housing: polycarbonate/ABS, 120 x 12.5 x 117 mm, DIN rail (NS35)
• Connection: removable screw terminals, 0.2...2.5 mm²
• Environment: IP20, -25...+70 °C

DIP switches on the front set the output mode, input circuit monitoring and the operating mode. An input fault makes the red LED flash according to NE44 and blocks the transistor of that channel. Mechanical contacts need either monitoring switched off or the resistor wiring shown in the datasheet.

Approvals: ATEX, cULus; for use in ATEX Zone 2. Usable in safety circuits up to SIL 2 (IEC 61508).

IM12-TI02-2TCURTDR-2I-C0/24VDC is a 2-channel TURCK temperature measuring amplifier for thermocouples, RTDs, resistors and mV signals. It converts the inputs to galvanically isolated 0/4...20 mA outputs; cold junction compensation can be internal, external or a fixed value.

• Inputs: 2 x thermocouple (IEC 60584, DIN 43710), -150...+150 mV, RTD (IEC 60751, DIN 43760) or 0...5 kΩ, 2- or 3-wire
• Outputs: 2 x 0/4...20 mA, source or sink (15...28 V); inputs assignable as E1, E2, E1-E2 or E2-E1
• Configuration: PC via FDT and IODD
• Supply: 10...30 V DC, ≤2.7 W
• Housing: polycarbonate/ABS, 120 x 12.5 x 117 mm, DIN rail (NS35), removable screw terminals
• Environment: IP20, -25...+70 °C

Used where a mix of thermocouples and RTDs from a hazardous area has to reach the control system as current signals. With a 3-wire RTD connection, the lead resistances must be equal. Input faults are indicated according to NE44, and a PC connection is needed for parameterisation.

Approvals: ATEX, cULus; for use in ATEX Zone 2. SIL 2.

QS30EXSH2OQ5 is the super high-power emitter of a Banner QS30H2O opposed-mode water sensor pair, used with a QS30ARXSH2O or QS30RRXSH2O receiver over up to 8 m. The 1450 nm infrared beam is tuned to an absorption band of water: it passes through many plastic and glass containers but is attenuated by water-based liquids, so the pair sees whether a container is filled.

• Sensing range: 8 m with a super high-power receiver, 13 mm effective beam
• Output: none (emitter); beam inhibit input on the white wire
• Supply: 10-30 V DC, < 80 mA
• Housing: PC/ABS, PMMA window, M30x1.5 threaded barrel or side mounting
• Environment: IP67, NEMA 6, 1200 psi washdown per NEMA PW12, -20...+60 °C
• Connection: 150 mm PVC cable with M12 5-pin male connector

Works only with the super high-power QS30ARXSH2O (light operate) or QS30RRXSH2O (dark operate) receiver, ordered separately. Pulling the white wire low switches the beam off, so the receiver can be checked before the machine starts. Modulation frequency A or B is chosen with the grey wire and must match on emitter and receiver, so neighbouring pairs do not interfere.

QS30ARXSH2OQ5 is the super high-power receiver of a Banner QS30H2O opposed-mode water sensor pair, used with a QS30EXSH2O emitter over up to 8 m. The 1450 nm infrared beam is tuned to an absorption band of water: it passes through many plastic and glass containers but is attenuated by water-based liquids, so the pair sees whether a container is filled.

• Sensing range: 8 m with a QS30EXSH2O emitter
• Output: bipolar, one PNP and one NPN, Light Operate, 100 mA
• Response: 10 ms ON/OFF, repeatability 5 ms at 10x excess gain or more; 30 ms and 25 ms at 2-10x
• Supply: 10-30 V DC, < 65 mA
• Housing: PC/ABS, PMMA window, M30x1.5 threaded barrel or side mounting
• Environment: IP67, NEMA 6, 1200 psi washdown per NEMA PW12, -20...+60 °C
• Connection: 150 mm PVC cable with M12 5-pin male connector

The super high-power pair is meant for thick or opaque containers that need the most burn-through power, at a slower response than the standard models. It works only with a super high-power QS30EXSH2O emitter, ordered separately. The output is on while the beam is not blocked. Modulation frequency A or B is chosen with the grey wire and must match on emitter and receiver, so neighbouring pairs do not interfere. An amber AID indicator flashes faster as more light is received.

DMP 331 is a stainless steel pressure transmitter for universal industrial applications, provided the medium is compatible with stainless steel 1.4404 (316L) or 1.4435 (316L). Various elastomer seals and a helium-tested welded version are available. Its modular design allows combining different sensor elements, electronic modules, and electrical/mechanical connections, resulting in a wide range of configurations that meet almost all industrial requirements.

Level sensor LMP 331 0-10m H2O Art: 430-1001-1-1-1-1-100-3-000
