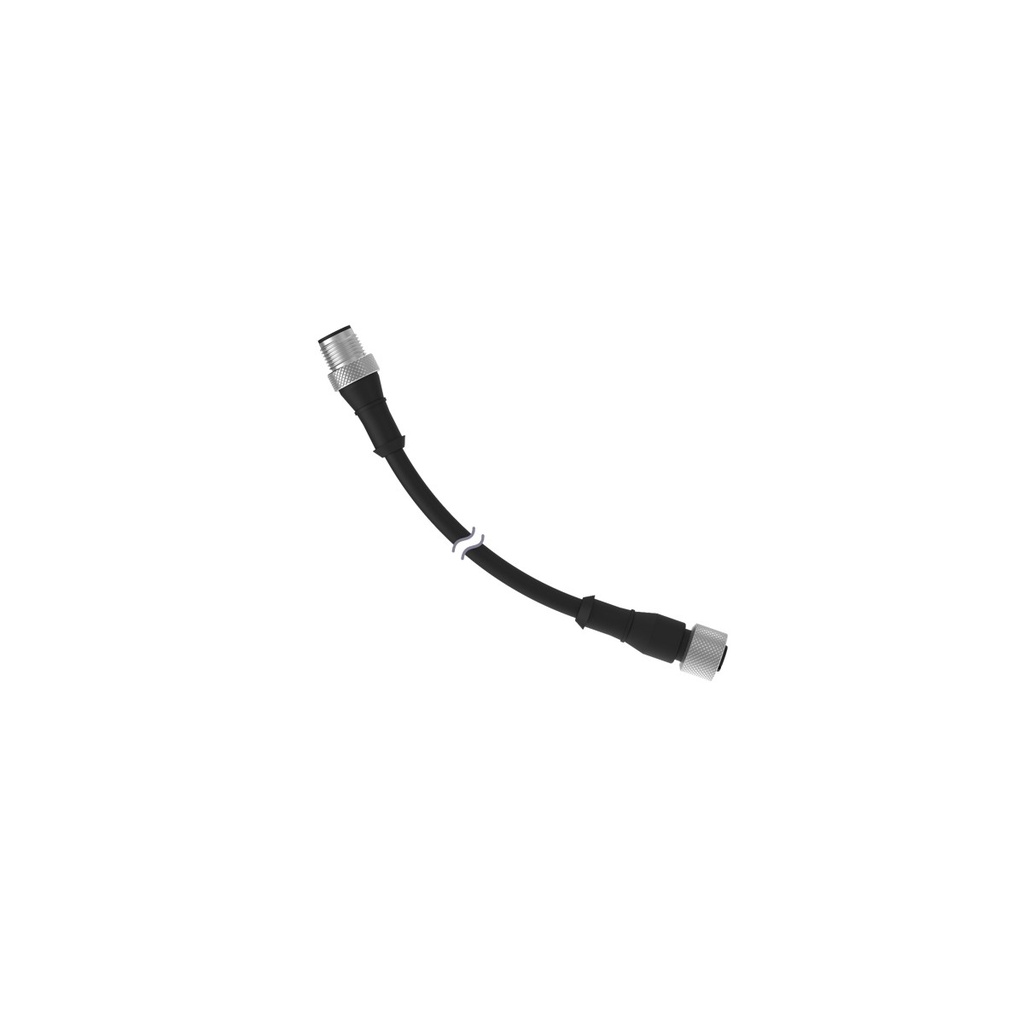

Connection cable MQDEC-406SS, M12 A-coded 4-pin, female / male straight, 1.83 m, PVC

MQDEC-406SS is a Banner double-ended M12 cordset with a straight 4-pin female connector at one end and a straight 4-pin male connector at the other.

• Connectors: M12x1, female straight / male straight, A-coded, 4 pins; nickel-plated brass coupling nuts, black PUR body
• Cable: 1.83 m, black PVC, Ø 5.21 mm, 4 x 22 AWG; wire colours brown, white, blue, black
• Ratings: 4 A; bend radius static 5x, dynamic 10x the outer diameter
• Environment: IP66, IP67, IP68, -40...+70 °C

UL and cUL listed (CYJV.E230439). Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).
