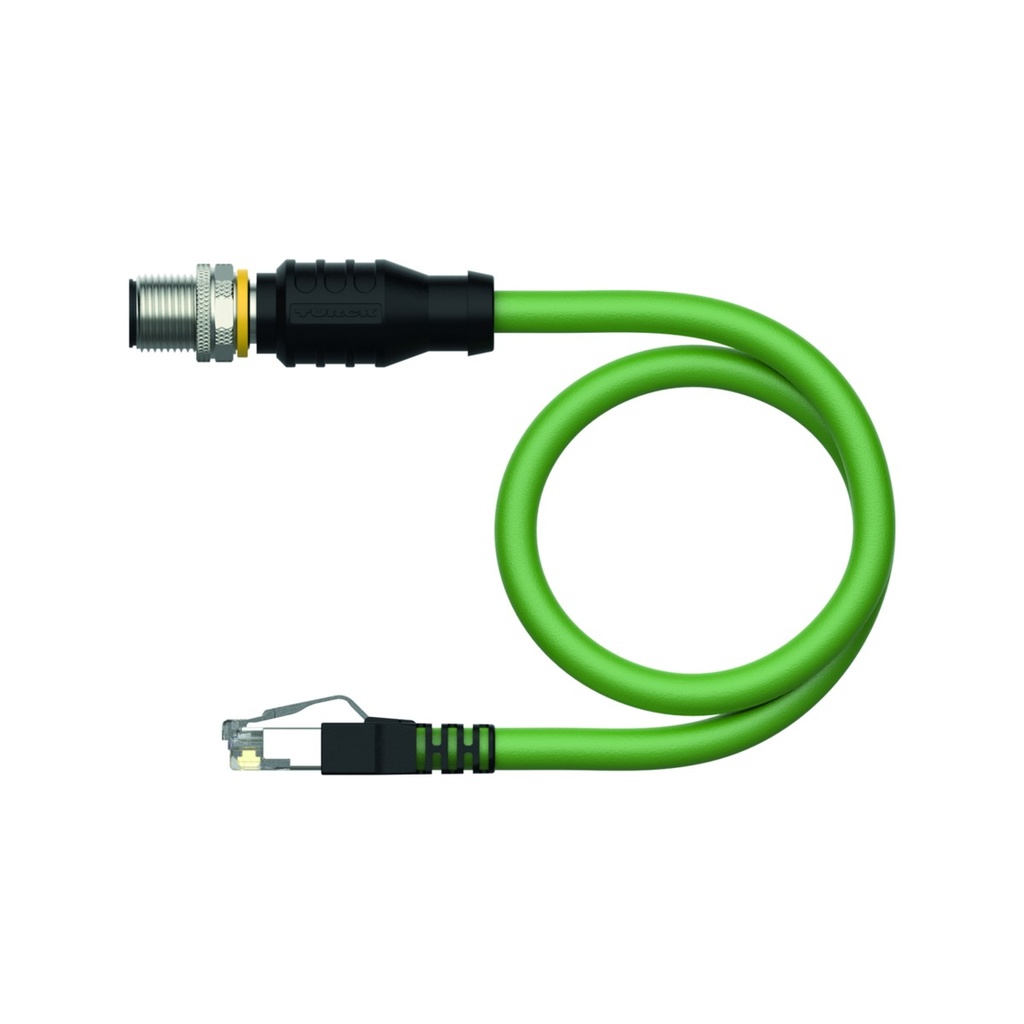

Connection cable RSSD-RJ45S-4422-1M, M12 D-coded male straight / RJ45 male straight, 4-pin, 1m PUR, shielded

RSSD-RJ45S-4422-1M is a TURCK Industrial Ethernet cable with a straight M12 male connector on one end and a straight RJ45 male connector on the other (4-pin). The 4-wire CAT 5e cable carries 100 Mbit/s Ethernet and PROFINET.

• Connectors: M12 x 1 male, straight, D-coded / RJ45 male, straight; 4-pin
• Cable: 1 m, PUR, green, Ø 6.5 mm, 4 x 0.32 mm², core colours WH, YE, BU, OG, overall shield of aluminium foil and tinned copper braid
• Ratings: 1.5 A, 42 V DC; CAT 5e, impedance 100 Ω, capacitance 50 pF/m
• Housing: TPU, nickel-plated brass coupling nut
• Environment: M12 IP67 (only when screwed in), RJ45 IP20; -40...+80°C fixed, -30...+80°C mobile
• Drag chain: at least 5 million bending cycles, bending radius ≥15 x Ø, torsion ±180°/m

The green PUR jacket is halogen free (IEC 60754), oil resistant (IEC 60811-2-1) and flame retardant (IEC 60332-1-2); the cable is RoHS compliant and PNO compliant for PROFINET. Approval: UL Listed.
