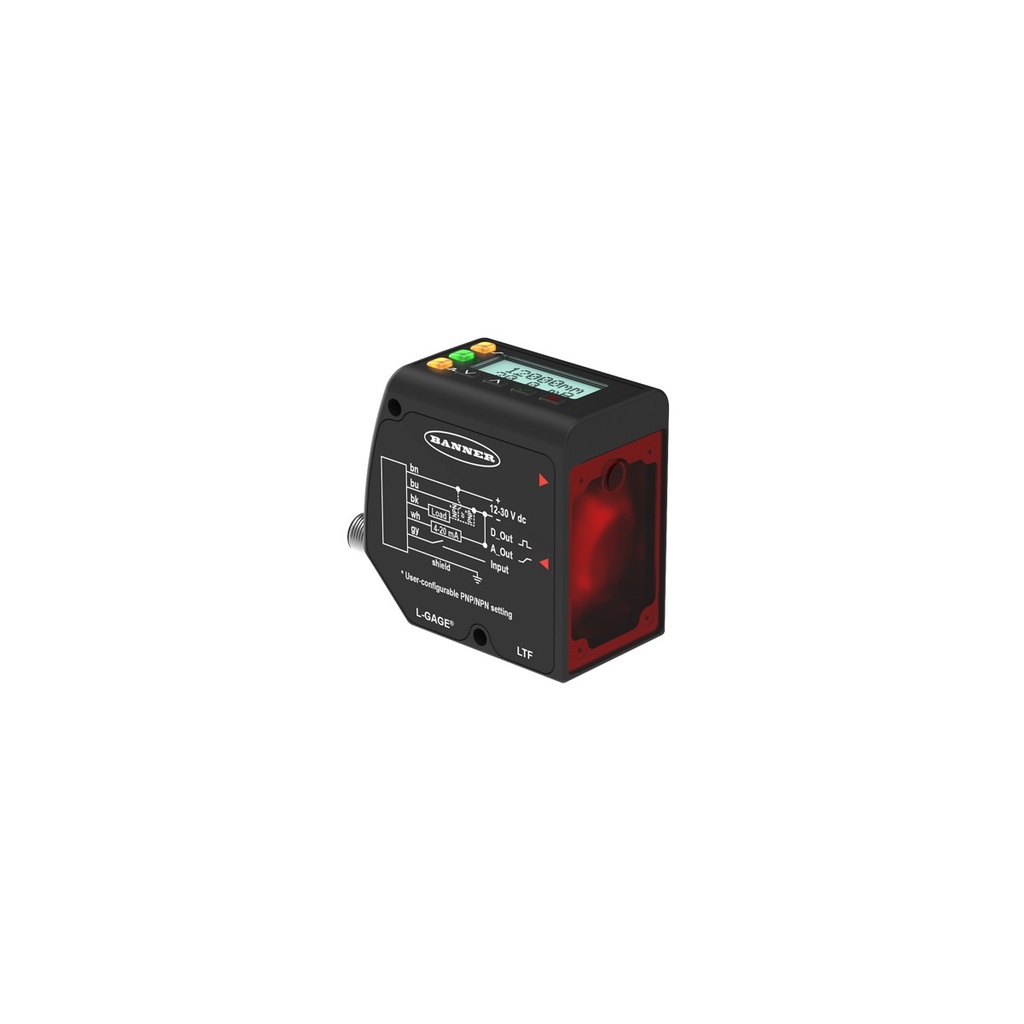

Laser distance sensor LTF12KC2LDQ, 50...12000mm, 2x PNP/NPN, IO-Link, M12 5-pin

LTF12KC2LDQ is a Banner LTF time-of-flight laser distance sensor with two discrete outputs and IO-Link, rated to 12 m on a white target. A two-line display shows the live distance in Run mode.

• Accuracy: ±10 mm to 12 m (90 % white), to 7 m (18 % grey), to 4 m (6 % black); temperature effect ±0.25 mm/°C
• Measuring range: 50...12000 mm (white), 50...11000 mm (grey), 50...7000 mm (black); resolution < 0.3...3 mm
• Outputs: 2 discrete, both NPN or both PNP, 100 mA; IO-Link (Smart Sensor Profile, 38.4 kbaud); response 1.5...256 ms
• Supply: 12...30 V DC, < 85 mA at 24 V DC
• Housing: die-cast zinc, acrylic window; Class 2 red laser 660 nm, ambient light immunity > 40000 lux
• Environment: IP67, -20...+55 °C
• Connection: rotatable M12 5-pin connector

Window limits are taught with the buttons or the remote wire, and the laser can be switched off through the remote input. Allow 15 minutes of warm-up for best performance.

Vibration per MIL-STD-202G method 201A, shock per method 213B (100 g). UL and CE; laser per IEC 60825-1:2014.
