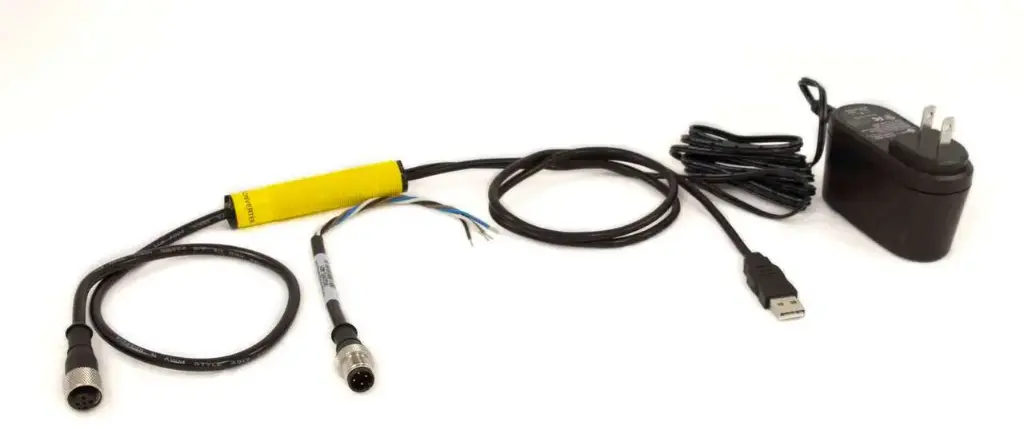

Adapter cable BWA-UCT-900, RS-485 to USB, M12 4-pin female, with AC wall plug, 1 m

BWA-UCT-900 is a Banner Sure Cross adapter cable that connects a Gateway, a MultiHop radio or an RS-485 sensor to the USB port of a Windows PC for configuration. The supplied wall plug powers the connected device at 24 V DC, which a radio transmitting at 1 W needs and the USB port alone cannot supply.

• Connectors: USB 2.0 type A plug and M12 4-pin female for RS-485 (2-wire)
• Communication: 9600, 19200 or 38400 baud, 8 data bits, 1 stop bit, no parity
• Power: input 5 V DC from USB and 100...240 V AC from the wall plug; output 24 V DC for one device transmitting at 1 W
• Included: 1 m cable and MQDMC-401 cordset for DX80...C models
• Environment: 0...+50 °C, up to 95 % RH non-condensing

On first connection the driver installs automatically within 1-2 minutes. Connecting supply voltage to the communication pins causes permanent damage.

FCC Part 15 Class B and ICES-003(B); CE and UKCA marked.
