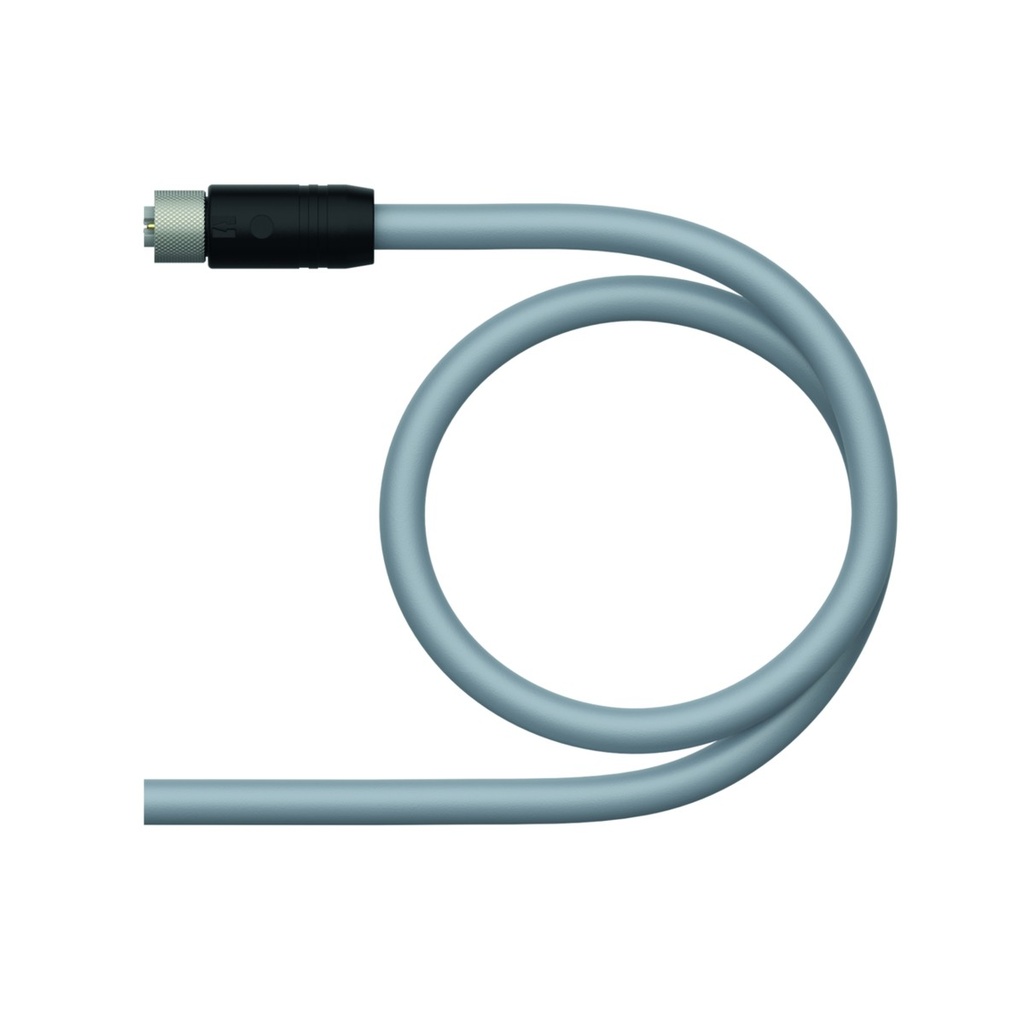

Connection cable RKP54PLB-2/TXG, M12 L-coded, female, straight, 4+FE, 2m PUR

RKP54PLB-2/TXG is a TURCK M12 power cable with a straight L-coded female connector (4 pins + FE) on one end and open cores on the other. The L-coding and 2.5 mm² cores are made for supply runs of up to 16 A.

• Connector: M12 x 1, female, straight, L-coded, 4 pins + FE, gold-plated copper-nickel (CuNi) contacts
• Cable: 2 m, PUR, grey, Ø 9.8 mm, 5 x 2.5 mm², core colours BN, WH, BU, BK, PK
• Ratings: 16 A, 50 VAC/60 VDC, more than 100 mating cycles
• Housing: black TPE, PBT GF contact carrier, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP65, IP67, IP69K (only when screwed in); -40...+80°C fixed, -30...+80°C mobile, -20...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 10 million bending cycles, up to 5 m/s², bending radius ≥7 x Ø, torsion ±30°/m. It resists oils, coolants, lubricants and emulsions, vibration and shock, is flame retardant and halogen free.

Approval: cULus. RoHS compliant.
