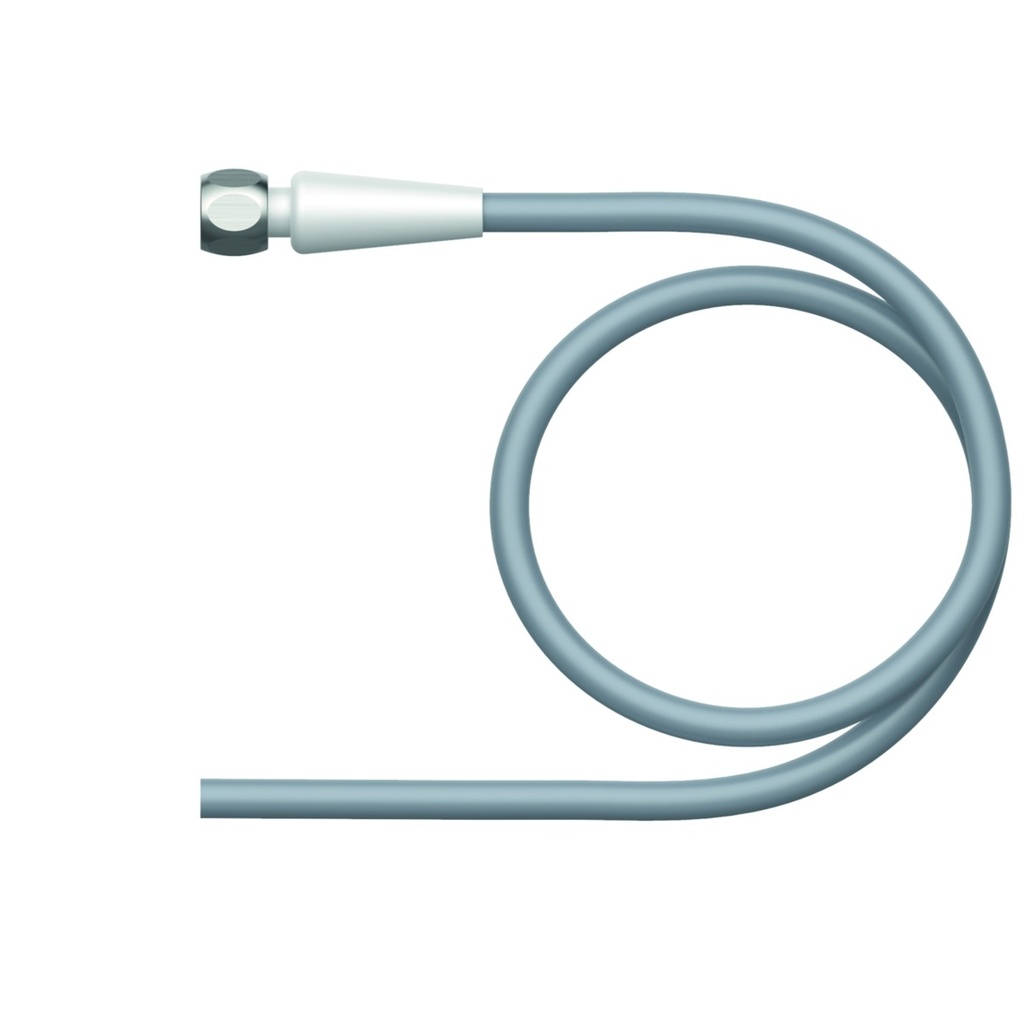

Connection cable PKGH3M-15/TFE, M8, female, straight, 3-pin, 15m PVC

PKGH3M-15/TFE is a TURCK hygienic-design connection cable for food and beverage production, with a straight M8 female connector (3-pin) on one end and open cores on the other.

• Connector: M8 x 1, female, straight, 3-pin, gold-plated brass (CuZn) contacts
• Cable: 15 m, PVC, grey (RAL 7040), Ø 4 mm, 3 x 0.25 mm², core colours BN, BU, BK
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: grey PP, stainless steel (V4A) coupling nut, FPM/FKM seal
• Environment: IP65, IP67, IP68, IP69 (only when screwed in); -25...+80°C fixed, 0...+80°C mobile

The jacket resists acids, alkalis, oils and chemicals and is flame retardant per DIN EN 60332-1-2 and DIN EN 60332-2-2. RoHS and REACH compliant, approvals: Ecolab, GOST.
