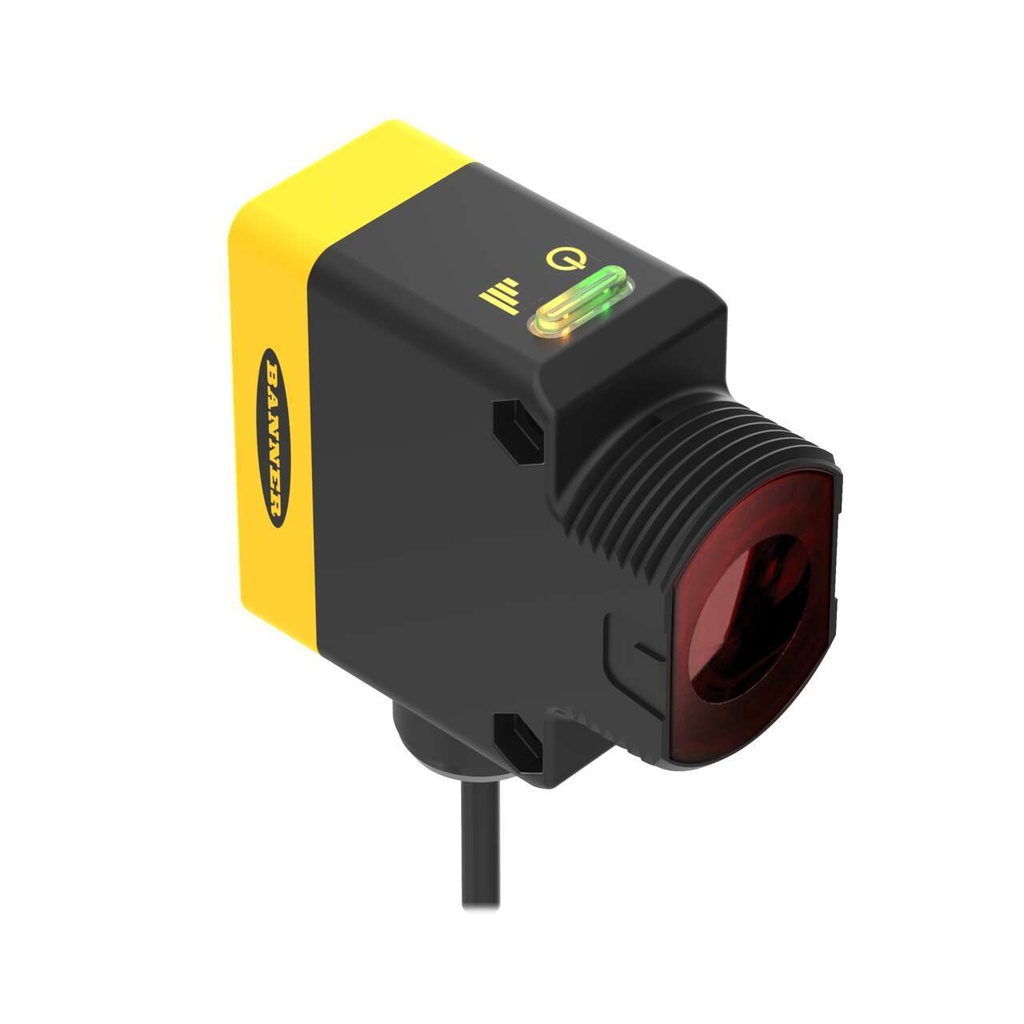

Photo sensor - receiver QS30ARXSH2OQ5, water detection, 8 m, PNP/NPN, light operate, 10-30VDC, M12 5-pin

QS30ARXSH2OQ5 is the super high-power receiver of a Banner QS30H2O opposed-mode water sensor pair, used with a QS30EXSH2O emitter over up to 8 m. The 1450 nm infrared beam is tuned to an absorption band of water: it passes through many plastic and glass containers but is attenuated by water-based liquids, so the pair sees whether a container is filled.

• Sensing range: 8 m with a QS30EXSH2O emitter
• Output: bipolar, one PNP and one NPN, Light Operate, 100 mA
• Response: 10 ms ON/OFF, repeatability 5 ms at 10x excess gain or more; 30 ms and 25 ms at 2-10x
• Supply: 10-30 V DC, < 65 mA
• Housing: PC/ABS, PMMA window, M30x1.5 threaded barrel or side mounting
• Environment: IP67, NEMA 6, 1200 psi washdown per NEMA PW12, -20...+60 °C
• Connection: 150 mm PVC cable with M12 5-pin male connector

The super high-power pair is meant for thick or opaque containers that need the most burn-through power, at a slower response than the standard models. It works only with a super high-power QS30EXSH2O emitter, ordered separately. The output is on while the beam is not blocked. Modulation frequency A or B is chosen with the grey wire and must match on emitter and receiver, so neighbouring pairs do not interfere. An amber AID indicator flashes faster as more light is received.
