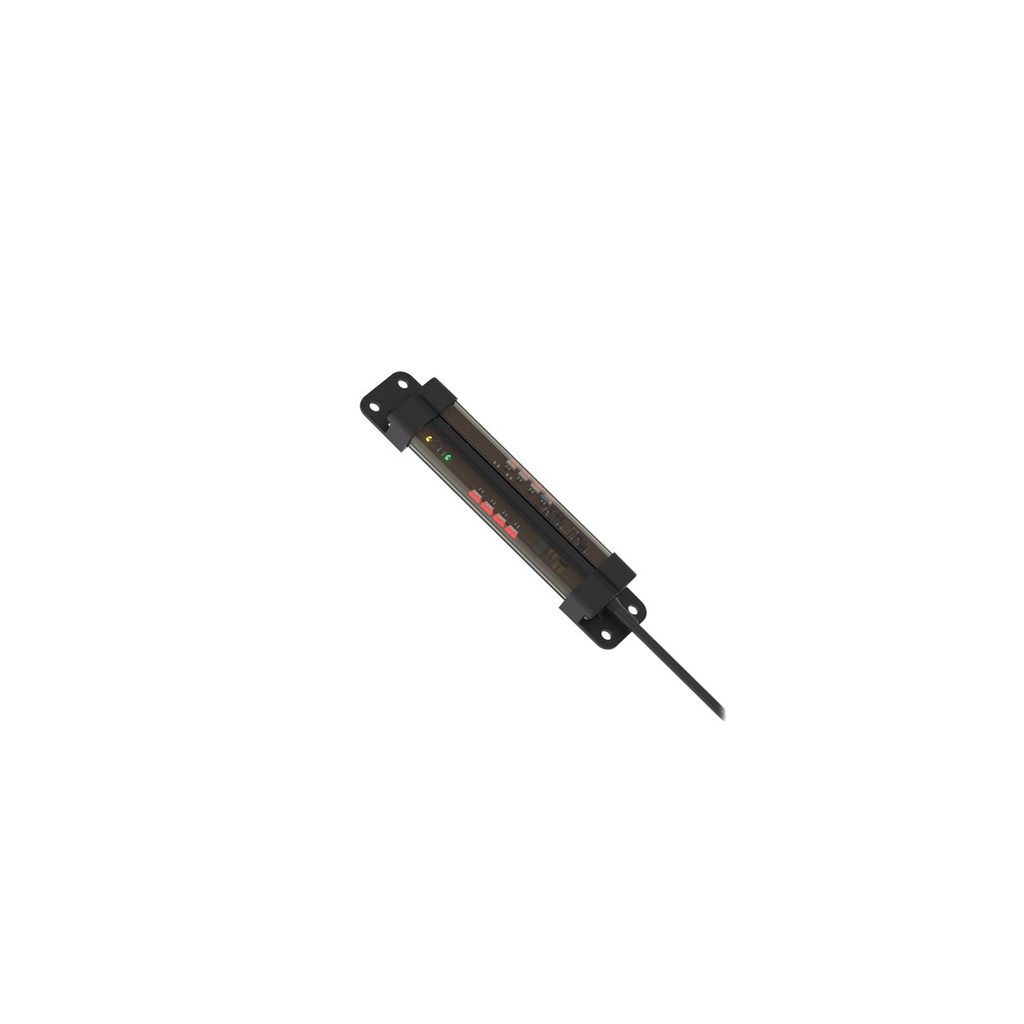

Photo sensor PVS28D100QP, pick-to-light, 100 mm, background suppression 20-500 mm, PNP/NPN, 12-30VDC, M12 5-pin

PVS28D100QP is a Banner PVS28 parts verification sensor and multicolour indicator in one 28 mm wide, 100 mm long housing. Two infrared beams detect a hand or object up to a set distance and ignore everything beyond it, so a bin can be confirmed touchlessly.

• Sensing range: 20...500 mm, up to 1000 mm in retroreflective mode
• Output: PNP or NPN, 150 mA
• Response: 120 ms (240 ms in retroreflective mode)
• Supply: 12-30 V DC, 35 mA typical at 24 V DC
• Housing: polycarbonate, ABS end caps, 2 beams at 50 mm spacing
• Environment: IP54, -20...+50 °C
• Connection: 150 mm PVC cable with M12 5-pin male connector

The switch point is taught through the grey remote-input wire. Colours, flash patterns and output behaviour (latching, ON or OFF delay) are set with Banner Pro Editor software and the Pro Converter Cable, ordered separately.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27.
