IGYX 08P17B3/S35L is a Baumer inductive proximity sensor in an M8 barrel with a 2 mm nominal sensing distance and a PNP normally open (NO) output. The sensing face is flush mountable and the stainless steel housing is 36 mm long.

• Sensing distance: 2 mm (Sn), assured 1.6 mm (Sa)
• Output: PNP, normally open (NO), 200 mA, with short-circuit and reverse-polarity protection
• Supply: 10...30 V DC, current consumption up to 15 mA with no load
• Housing: M8 thread, stainless steel, PBT sensing face, 36 mm long, flush mountable
• Environment: IP 67, operating temperature -25...+75 °C
• Connection: M8 connector

The Ø 8 mm body and 36 mm length fit the sensor into grippers, indexing tables and other positions where an M12 barrel does not fit. A 3 kHz switching frequency is enough for presence monitoring of fast moving metal parts. Tightening torque on the M8 thread must not exceed 5 Nm, and the switching point drifts by up to ±10 % of Sr across the temperature range, which matters when the target sits close to the 2 mm limit.

Complies with the EMC requirements of EN 60947-5-2:2007.

IM1-22EX-R/24VDC is a 2-channel TURCK isolating switching amplifier with intrinsically safe input circuits and two relay outputs, each with one NO contact. Six front switches set the output mode (NO/NC) and switch wire-break and short-circuit monitoring on or off separately for each channel.

• Channels: 2 inputs for NAMUR sensors (EN 60947-5-6) or potential-free contacts
• Outputs: 2 relays, 1 NO each, 30 V DC / 250 V AC, ≤2 A, ≤500 VA / 60 W
• Supply: 10...30 V DC (24 V DC nominal)
• Housing: polycarbonate/ABS, 104 x 18 x 110 mm, DIN rail (NS35) or panel mounting
• Connection: screw terminals, 1 x 2.5 mm² / 2 x 1.5 mm²
• Environment: IP20, -25...+60 °C

Used to pass NAMUR sensor or contact signals from a hazardous area to a relay input in the control cabinet. With monitoring switched on, an input fault turns the channel LED red and the output relay drops out. Mechanical contacts need either monitoring switched off or the resistor wiring shown in the datasheet.

Approvals: ATEX, CFMUS, TR CU.

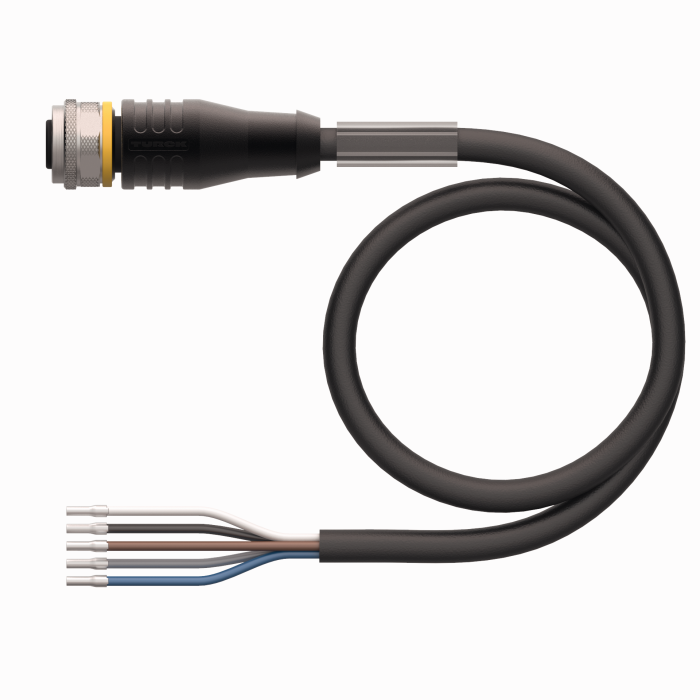

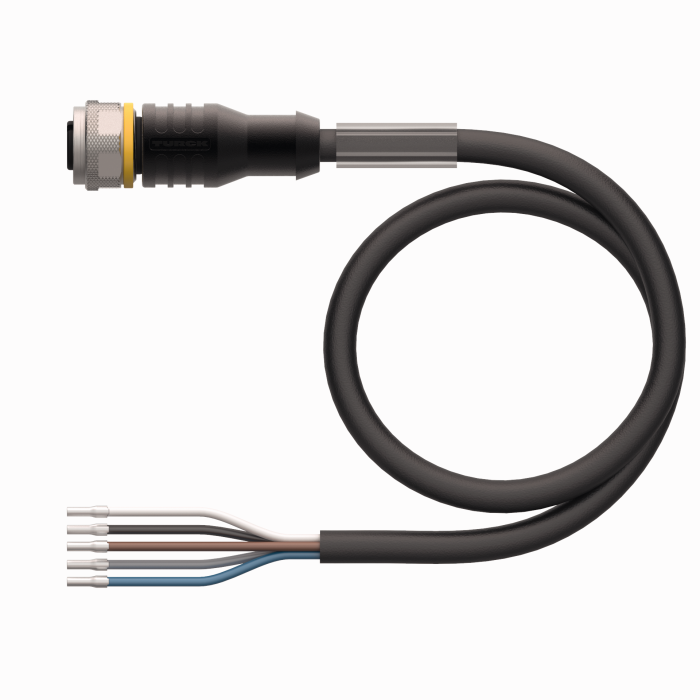

RKS4.5T-5/TEL is a TURCK shielded connection cable with a straight M12 female connector (5-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, straight, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PVC, black, Ø 6.1 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, 0...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS.

Approval: cULus.

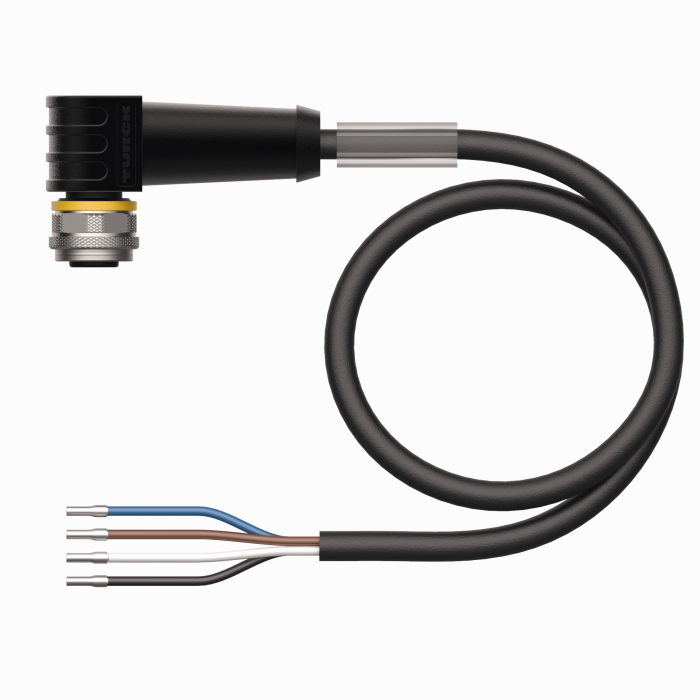

WKS4.4T-10/TXL is a TURCK shielded connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, angled, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PUR, black, Ø 5.3 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

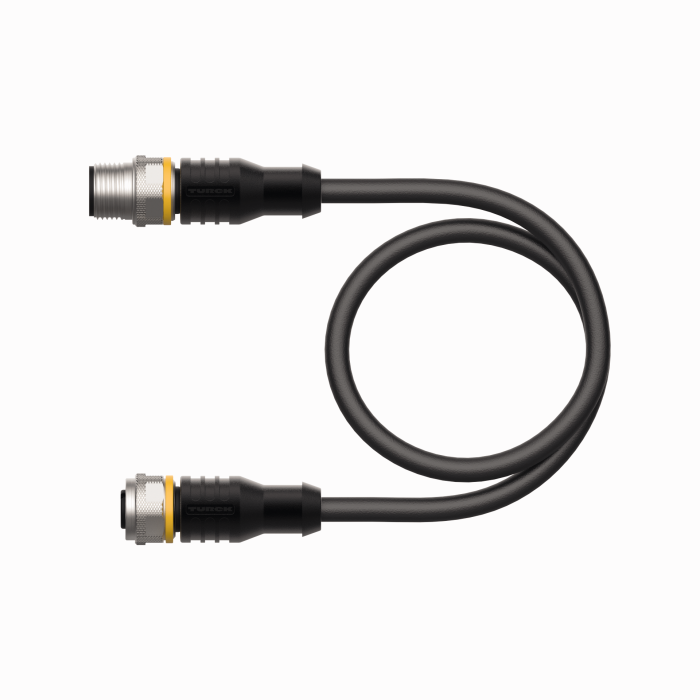

RSC-RKC5701-6M is a TURCK shielded CAN bus cable (DeviceNet, CANopen) with a straight M12 male connector on one end and a straight M12 female connector on the other (5-pin, A-coded). The cable carries a separate power pair and a data pair with 120 Ω impedance.

• Connectors: M12 x 1 male / female, straight, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 6 m, PUR, anthracite, Ø 6.7 mm, shielded; power pair AWG 22 (RD, BK), data pair AWG 24 (WH, BU)
• Electrical: 4 A, 60 V, impedance 120 Ω (1 MHz), capacitance 37 pF/m
• Housing: TPU, nickel-plated brass coupling nuts, FPM/FKM seal
• Environment: IP67 (only when screwed in); -40...+80°C fixed, -25...+60°C mobile

The cable is rated for drag chains (at least 5 million bending cycles, up to 3 m/s, bending radius ≥10 x Ø). It is oil resistant per VDE 0472-803, flame retardant per VDE 0472-804/B, UV resistant and free from halogen and LABS.

Approval: UL.

QS30RRXH2OQ5-83044 is the high-gain dark operate receiver of a Banner QS30H2O opposed-mode water sensor pair, used with a standard QS30EXH2O emitter over up to 4 m. The 1450 nm infrared beam is tuned to an absorption band of water: it passes through many plastic and glass containers but is attenuated by water-based liquids, so the pair sees whether a container is filled.

• Sensing range: 4 m with a QS30EXH2O emitter
• Output: bipolar, one PNP and one NPN, Dark Operate, 100 mA
• Response: 1 ms ON/OFF, repeatability 500 µs at 10x excess gain or more; 3 ms and 2.5 ms at 2-10x
• Supply: 10-30 V DC, < 65 mA
• Housing: PC/ABS, PMMA window, M30x1.5 threaded barrel or side mounting
• Environment: IP67, NEMA 6, 1200 psi washdown per NEMA PW12, -20...+60 °C
• Connection: 150 mm PVC cable with M12 5-pin male connector

The high-gain receiver suits translucent containers and thick liquid layers, such as HDPE milk containers or coloured PET bottles. The output is on while the beam is blocked. Works with a standard QS30EXH2O emitter, ordered separately. Modulation frequency A or B is chosen with the grey wire and must match on emitter and receiver, so neighbouring pairs do not interfere.

QS30EXH2OQ5-83043 is the standard emitter of a Banner QS30H2O opposed-mode water sensor pair, supplied with a stainless steel mounting nut. The 1450 nm infrared beam is tuned to an absorption band of water: it passes through many plastic and glass containers but is attenuated by water-based liquids, so the pair sees whether a container is filled.

• Sensing range: 2 m with a low-gain receiver, 4 m with a high-gain receiver
• Output: none (emitter); beam inhibit input on the white wire
• Supply: 10-30 V DC, < 80 mA
• Housing: PC/ABS, PMMA window, M30x1.5 threaded barrel with stainless steel nut, or side mounting
• Environment: IP67, NEMA 6, 1200 psi washdown per NEMA PW12, -20...+60 °C
• Connection: 150 mm PVC cable with M12 5-pin male connector

Works only with standard QS30H2O receivers, ordered separately: the low-gain models suit clear bottles and test tubes, the high-gain models translucent containers such as HDPE or coloured PET. Pulling the white wire low switches the beam off for a receiver check. Modulation frequency A or B is chosen with the grey wire and must match on emitter and receiver, so neighbouring pairs do not interfere.

Q12RB6RQ5 is the Dark Operate receiver of a Banner Q12 series opposed-mode pair and works with a Q12 emitter with a visible red 640 nm beam.

• Sensing range: 2 m with a Q12 emitter, effective beam 5.7 mm
• Output: bipolar, one PNP and one NPN, Dark Operate, 50 mA
• Response: 1.3 ms ON, 900 µs OFF; repeatability 125 µs
• Supply: 10-30 V DC, < 20 mA
• Housing: polyamide, polycarbonate lens, 8 mm thick
• Environment: IP67, -20...+55 °C
• Connection: 150 mm PVC cable with M12 4-pin male connector

A green LED indicator shows power; the amber one shows the received signal and flashes when the signal is marginal.

Q126EQ5 is the emitter of a Banner Q12 series opposed-mode pair and works with a Q12 receiver.

• Range: 2 m with a Q12 receiver
• Light source: visible red 640 nm
• Supply: 10-30 V DC, < 20 mA
• Housing: polyamide, polycarbonate lens, 8 mm thick
• Environment: IP67, -20...+55 °C
• Connection: 150 mm PVC cable with M12 4-pin male connector

A green LED indicator shows power.

T30SP6FF200Q is a Banner T30 series fixed-field photo sensor with a 200 mm cutoff and an infrared beam, in a right-angle housing with a 30 mm threaded lens. Two detectors compare the light returned from near and far, so the sensor detects objects up to 200 mm and ignores backgrounds beyond.

• Sensing range: 200 mm cutoff, fixed
• Output: complementary PNP, Light Operate (black) and Dark Operate (white), 150 mA each
• Response: 3 ms; repeatability 750 µs
• Supply: 10-30 V DC, 35 mA
• Housing: right-angle, M30x1.5 thread, PBT polyester, epoxy-encapsulated, jam nut included
• Environment: IP69K, NEMA 4X, -40...+70 °C
• Connection: integral M12 4-pin male connector

Backgrounds must sit beyond the cutoff; a mirror-like background can still switch the sensor, which is avoided by angling it or using a matte surface. Rotating the sensor 90° stops an object moving across the face beyond the cutoff from triggering it. The white-wire output can be wired as a normally open marginal-signal alarm instead of Dark Operate. There is no sensitivity adjustment.

Vibration tested to MIL-STD-202F, method 201A; shock to method 213B (75 g operating). UL, CE and UKCA approved.

MQDC-415RA is a Banner single-ended cordset with a right-angle 4-pin M12 female connector and flying leads, unshielded.

• Connector: M12x1, female, right-angle, A-coded, 4 pins; nickel-plated brass coupling nut, black PUR body
• Cable: 5 m, black PVC, Ø 5.21 mm, 4 x 22 AWG; wire colours brown, white, blue, black
• Ratings: 4 A, 30 V DC; bend radius static 5x, dynamic 10x the outer diameter
• Environment: IP67, IP68, operating -40...+60 °C

Pass-through current is derated with ambient temperature: 4 A at 45 °C, 2 A at 55 °C, 1 A at 60 °C.

UL listed to UL 60947-5-1 (NKCR.E71083). Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).

SMBQ5XFA is a Banner swivel bracket that fixes a sensor to the T-slot of an extruded aluminium profile. Tilt and pan adjustment lets the beam be aligned after the bracket is fixed.

• Fits: Banner Q5X, QM42, PD45, PD49, QC50
• Adjustment: tilt and pan
• Material: zinc die-cast (Zamak)
• Hardware: 3/8-16 x 4 in socket head cap screw included

Some sensors can also be side-mounted with the 3 mm screws supplied with the sensor.

QS18VP6AFF200Q5 is a Banner QS18 series photo sensor with adjustable foreground suppression and a visible red 640 nm LED beam. It is aimed at a fixed background up to 200 mm away and switches when an object blocks the light coming back from that background, whatever the object's colour or shape.

• Sensing range: cutoff adjustable 30-200 mm, objects detected up to the sensor face
• Output: complementary PNP, Light Operate and Dark Operate, 100 mA total
• Response: 2.8 ms ON/OFF; repeatability 250 µs
• Supply: 10-30 V DC, < 16 mA
• Housing: ABS, acrylic lens
• Environment: IP67, NEMA 6, -20...+55 °C
• Connection: 150 mm PVC cable with M12 4-pin male connector

Typical use is a sensor above a conveyor belt: the belt is the background, and boxes of any colour are detected once they are taller than the minimum separation, more than 10 mm on a black belt at 200 mm. The cutoff is set with a five-turn adjustment screw.

DELSE-81D is a Banner safety light curtain cordset with a straight 12-pin LS female connector at one end and a straight 8-pin M12 male connector at the other.

• Connectors: LS, female, straight, 12 pins, black PVC body / M12x1, male, straight, A-coded, 8 pins, black TPU body; nickel-plated brass coupling nuts
• Cable: 0.3 m, yellow PVC, Ø 6.0 mm, 8 x 22 AWG
• Ratings: 2 A, 30 V AC/DC
• Environment: IP67, -40...+70 °C

UL (CYJV/CYJV7) and CE marked.

EZLSA-MBK-16 is a Banner side-mount bracket for EZ-SCREEN LS safety light curtains, in black zinc die-cast, supplied as one bracket with hardware. The clamp turns 35° in total (+15°/-20°) for aligning the emitter and receiver.

• Fits: EZ-SCREEN LS safety light curtains
• Material: black zinc die-cast
• Dimensions: 74 x 55 mm, height 55 mm; 6.5 mm mounting holes, 58 mm spacing
• Tightening torque: M4 screws, max. 1.7 Nm and 2.3 Nm
• Included: 1 bracket with hardware

O300.GR-GW1T.72N is a miniature photoelectric sensor from the Baumer O300 series with background suppression and a 30...300 mm switching distance. The sensor detects an object from the angle of the reflected light, so the object's colour and surface gloss do not move the switching point, while everything beyond the taught distance is ignored.

• Switching distance: 30...300 mm, adjustable by qTeach
• Output: push-pull, light / dark operate, 100 mA
• Supply: 10...30 V DC, typical consumption 30 mA
• Housing: rectangular, plastic (ASA, PMMA), PMMA optics, 12.9 x 32.3 x 23 mm
• Environment: IP 67, -30...+60 °C
• Connection: M8 connector, 4 pin

The sensor suits presence and position checks on conveyors, packaging machines and assembly stations where mounting space is tight and the background sits close behind the object. Sensitivity is set with qTeach by holding a ferromagnetic tool against the housing, so there are no buttons and no mechanical adjusters on the body.

OR18.RR-PW1Z.71OV/0010 is a Baumer M18 retro-reflective photo sensor with a polarisation filter and a 3.5 m operating range. The polarisation filter lets the sensor tell the reflector from shiny objects, so glossy packaging or metal parts do not hold the output switched. It has no sensitivity adjustment, so the setting cannot be changed on the machine.

• Operating range: 3.5 m (nominal 4.5 m), red LED 660 nm, fixed sensitivity
• Output: PNP, max. 100 mA, light/dark operate; response time < 1 ms
• Supply: 12...30 V DC, max. 40 mA
• Housing: M18 x 1 threaded, 44.8 mm long, ABS plastic, PMMA lens
• Environment: IP67; -25...+55 °C
• Connection: M12 4-pin connector on a 100 mm flying lead

The short 44.8 mm body with a 100 mm lead fits where there is no room behind the mounting plate for a rear connector and cordset. Pin 2 (white) is a control input. A green LED shows alignment and lens soiling, a yellow LED shows the output state.

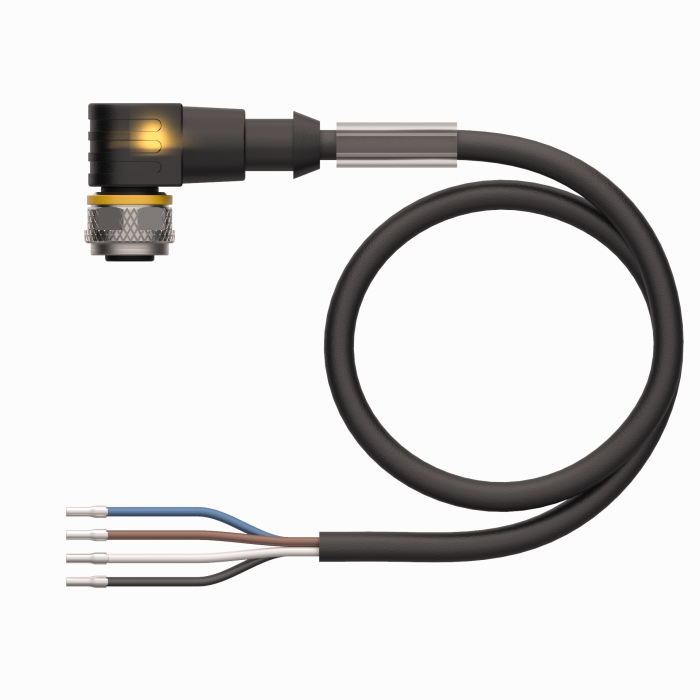

WKC4.4T-P7X2-5/TXL is a TURCK connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other. The connector has two built-in LED indicators: green shows the supply, yellow the PNP signal on pin 4.

• Connector: M12 x 1, female, angled, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 30 V DC, more than 100 mating cycles
• Housing: translucent TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

T183EQ1 is the emitter of a Banner T18 series AC-powered opposed-mode photo sensor pair, in a right-angle 18 mm housing. Its infrared 950 nm beam reaches a separate T18 AC receiver up to 20 m away; the emitter itself has no output.

• Sensing range: 20 m with a T18 AC receiver
• Output: none (emitter)
• Supply: 20-250 V AC, 50/60 Hz, 20 mA average
• Housing: right-angle, M18x1 thread, PBT polyester, polycarbonate lens, epoxy-encapsulated
• Environment: IP67, NEMA 6P, IP69K, -40...+70 °C
• Connection: integral 1/2"-20UNF Micro 4-pin male connector

The AC supply suits machines without a 24 V DC circuit. The connector is the 1/2" Micro type, not M12, so it needs a matching Micro cordset. A green LED shows power.

Vibration tested to MIL-STD-202F, method 201A; shock to method 213B (75 g operating). UL, CE and UKCA approved.

Q5XKULAF3000-Q8 is a Banner Q5X series Class 2 laser triangulation sensor that outputs distance over 95...3000 mm as a 0...10 V signal and has a second channel for switching or IO-Link. It detects black targets below 6 % reflectance and shows the distance on its display.

• Repeatability (switching output): ±0.5 mm at 95...300 mm, ±0.25 % at 300...1000 mm, ±0.5 % at 1000...2000 mm, ±1 % at 2000...3000 mm
• Measuring range: 95...3000 mm
• Output 1: analog 0...10 V, min. load 1 kΩ; response time 0.5...2270 ms depending on measurement rate and averaging
• Output 2: PNP/NPN switching or IO-Link push/pull, 50 mA; IO-Link v1.1, 38.4 kbit/s, Smart Sensor Profile
• Supply: 12...30 V DC, < 1 W; protected against reverse polarity and transient overvoltage
• Housing: ABS, PMMA lens cover, polycarbonate display window; side mounting
• Environment: IP67, -10...+50 °C
• Connection: integral M12 male connector, 5-pin, rotatable through 270°

The analog span and the switch point are taught separately, so one sensor can feed a continuous distance value to the controller and signal a limit at the same time. The sensor reaches full performance after 10 minutes of warm-up.

CE, UKCA and UL listed (Industrial Control Equipment). Vibration per MIL-STD-202G method 201A, shock per MIL-STD-202G method 213B (100 G).

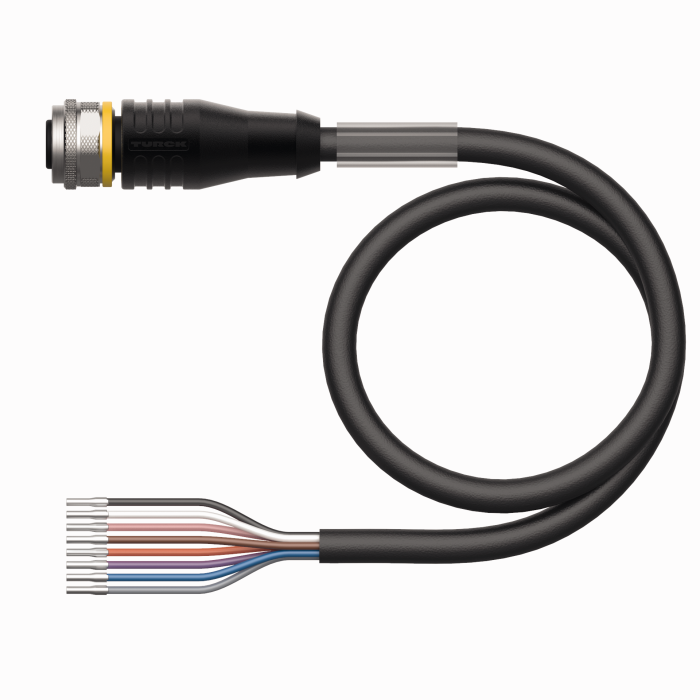

RKS8T-25/TXL is a TURCK shielded connection cable with a straight M12 female connector (8-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, straight, A-coded, 8-pin, gold-plated brass (CuZn) contacts
• Cable: 25 m, PUR, black, Ø 6.3 mm, 8 x 0.25 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG
• Shield: aluminium foil and tinned copper wire
• Ratings: 2 A, 30 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

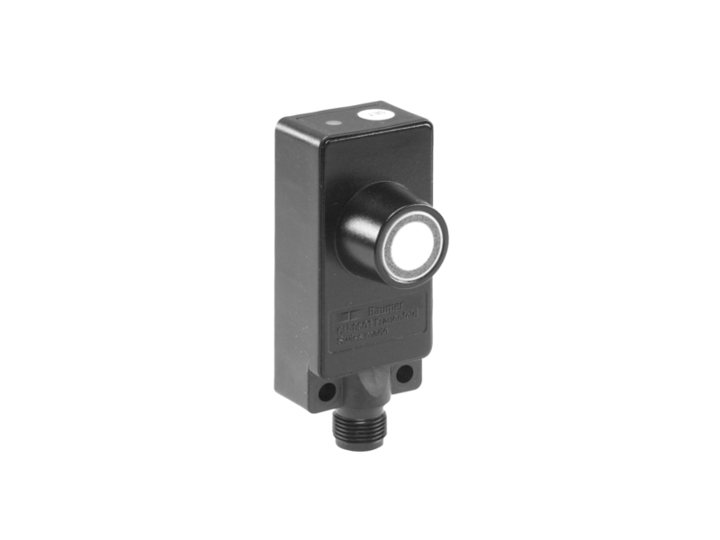

UNDK 30U6103/S14 is a Baumer ultrasonic distance sensor in a rectangular housing with a 100...1000 mm measuring range and a 0...10 V analog output. The start and end of the range are taught with the teach-in button on the housing.

• Accuracy: repeatability < 0.5 mm; resolution < 0.3 mm; temperature drift < 2 % of distance to target
• Measuring range: 100...1000 mm, start and end point adjustable; response time < 80 ms; sonic frequency 240 kHz
• Output: analog 0...10 V / 10...0 V, up to 20 mA
• Supply: 15...30 V DC, consumption up to 35 mA; short-circuit and reverse-polarity protected
• Housing: polyester / die-cast zinc, 30 x 65 x 31 mm
• Environment: IP67, operating temperature -10...+60 °C
• Connection: M12 connector

Suited to level and distance measurement up to 1 m where a plain analog signal to a controller without a digital interface is needed. Yellow and red LEDs show the status, and the display flashes when a target is inside the range, which helps with alignment.

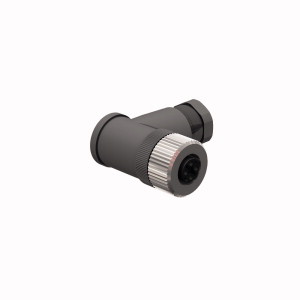

B8251-0 is a TURCK field-wireable M12 female connector, angled, 5-pin, A-coded, for 4...6 mm cable with screw-clamp terminals.

• Connector: M12, female, angled, A-coded, 5-pin, CuZn contacts with Optalloy coating, more than 50 mating cycles
• Ratings: 4 A, 60 V
• Connection: screw-clamp terminals, conductors up to 0.75 mm², cable diameter 4...6 mm, PG7 screw-in thread
• Housing: black PA body and plastic (PA) coupling nut, FPM/FKM seals
• Environment: IP67 (screwed together); -40...+85°C fixed

Approval: cULus recognized.

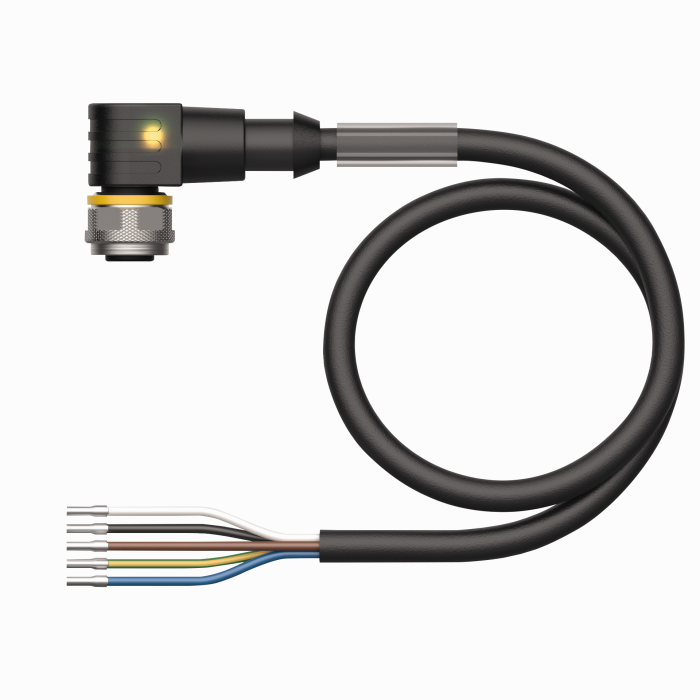

WKC5T-P7X3.1-2/TXL is a TURCK connection cable with an angled M12 female connector (4-pin + PE) on one end and open cores on the other. Pin 5 is the protective earth (PE). The connector has three built-in LED indicators: green shows the supply, yellow and red the state of the PNP signals.

• Connector: M12 x 1, female, angled, A-coded, 4-pin + PE, gold-plated brass (CuZn) contacts
• Cable: 2 m, PUR, black, Ø 4.8 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GNYE
• Ratings: 4 A, 30 V DC, more than 100 mating cycles
• Housing: translucent TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

WKC5T-P7X3.1-5/TXL is a TURCK connection cable with an angled M12 female connector (4-pin + PE) on one end and open cores on the other. Pin 5 is the protective earth (PE). The connector has three built-in LED indicators: green shows the supply, yellow and red the state of the PNP signals.

• Connector: M12 x 1, female, angled, A-coded, 4-pin + PE, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 4.8 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GNYE
• Ratings: 4 A, 30 V DC, more than 100 mating cycles
• Housing: translucent TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

BS4140-0/9 is a TURCK field-wireable 7/8" male connector, straight, 4-pin, for 6...8 mm cable with screw-clamp terminals. It is intended for PROFIBUS-PA and FOUNDATION fieldbus and as an auxiliary supply connector for DeviceNet slaves.

• Connector: 7/8", male, straight, 4-pin, gold-plated CuZn contacts, more than 100 mating cycles
• Ratings: 9 A, 250 V
• Connection: screw-clamp terminals, conductors 0.14...1.5 mm², cable diameter 6...8 mm, PG9 screw-in thread
• Housing: black PBT body, black TPU contact carrier, anodised aluminium coupling nut
• Environment: IP67; -40...+90°C fixed

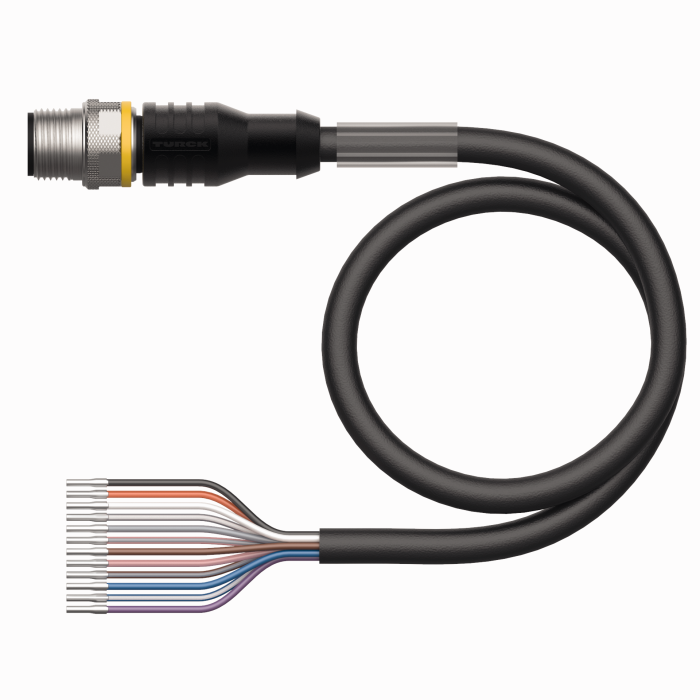

RSC12T-2/TEL is a TURCK connection cable with a straight M12 male connector (A-coded, 12-pin) on one end and open cores on the other.

• Connector: M12 x 1, male, straight, A-coded, 12-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PVC, black, Ø 5.9 mm, 12 x 0.14 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG, GY/PK, WH/BU, WH/GY, GY/BN
• Ratings: 1.5 A, 30 V, test voltage 2000 V, more than 100 mating cycles
• Housing: black TPU, nickel-plated brass coupling nut
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

Core colours follow DIN EN 60947-5-2 on cables produced from CW16/2017; earlier cables used DIN 47100 colours, so check the pin-to-colour table in the datasheet when replacing an existing cable.

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and LABS free. Approval: cULus.

RKS4.5T-2/TXL is a TURCK shielded connection cable with a straight M12 female connector (5-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, straight, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PUR, black, Ø 5.7 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.
