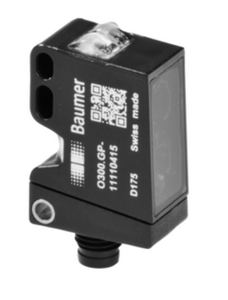

Photo sensor O300.GR-GW1T.72N, BGS 30...300 mm, push-pull, M8, IP67

O300.GR-GW1T.72N is a miniature photoelectric sensor from the Baumer O300 series with background suppression and a 30...300 mm switching distance. The sensor detects an object from the angle of the reflected light, so the object's colour and surface gloss do not move the switching point, while everything beyond the taught distance is ignored.

• Switching distance: 30...300 mm, adjustable by qTeach
• Output: push-pull, light / dark operate, 100 mA
• Supply: 10...30 V DC, typical consumption 30 mA
• Housing: rectangular, plastic (ASA, PMMA), PMMA optics, 12.9 x 32.3 x 23 mm
• Environment: IP 67, -30...+60 °C
• Connection: M8 connector, 4 pin

The sensor suits presence and position checks on conveyors, packaging machines and assembly stations where mounting space is tight and the background sits close behind the object. Sensitivity is set with qTeach by holding a ferromagnetic tool against the housing, so there are no buttons and no mechanical adjusters on the body.
