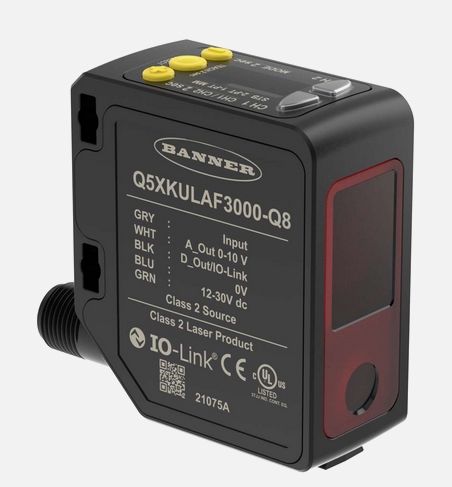

Laser distance sensor Q5XKULAF3000-Q8, 95-3000mm, 0-10V + PNP/NPN, IO-Link, 12-30VDC, IP67, M12 5-pin

Q5XKULAF3000-Q8 is a Banner Q5X series Class 2 laser triangulation sensor that outputs distance over 95...3000 mm as a 0...10 V signal and has a second channel for switching or IO-Link. It detects black targets below 6 % reflectance and shows the distance on its display.

• Repeatability (switching output): ±0.5 mm at 95...300 mm, ±0.25 % at 300...1000 mm, ±0.5 % at 1000...2000 mm, ±1 % at 2000...3000 mm
• Measuring range: 95...3000 mm
• Output 1: analog 0...10 V, min. load 1 kΩ; response time 0.5...2270 ms depending on measurement rate and averaging
• Output 2: PNP/NPN switching or IO-Link push/pull, 50 mA; IO-Link v1.1, 38.4 kbit/s, Smart Sensor Profile
• Supply: 12...30 V DC, < 1 W; protected against reverse polarity and transient overvoltage
• Housing: ABS, PMMA lens cover, polycarbonate display window; side mounting
• Environment: IP67, -10...+50 °C
• Connection: integral M12 male connector, 5-pin, rotatable through 270°

The analog span and the switch point are taught separately, so one sensor can feed a continuous distance value to the controller and signal a limit at the same time. The sensor reaches full performance after 10 minutes of warm-up.

CE, UKCA and UL listed (Industrial Control Equipment). Vibration per MIL-STD-202G method 201A, shock per MIL-STD-202G method 213B (100 G).
