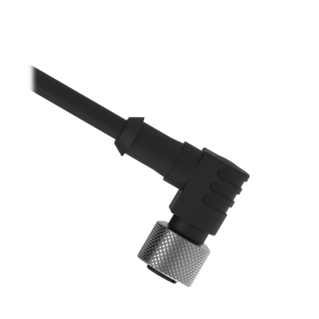

Connection cable MQDC-415RA, M12 A-coded 4-pin, female, angled, 5 m, PVC

MQDC-415RA is a Banner single-ended cordset with a right-angle 4-pin M12 female connector and flying leads, unshielded.

• Connector: M12x1, female, right-angle, A-coded, 4 pins; nickel-plated brass coupling nut, black PUR body
• Cable: 5 m, black PVC, Ø 5.21 mm, 4 x 22 AWG; wire colours brown, white, blue, black
• Ratings: 4 A, 30 V DC; bend radius static 5x, dynamic 10x the outer diameter
• Environment: IP67, IP68, operating -40...+60 °C

Pass-through current is derated with ambient temperature: 4 A at 45 °C, 2 A at 55 °C, 1 A at 60 °C.

UL listed to UL 60947-5-1 (NKCR.E71083). Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).
