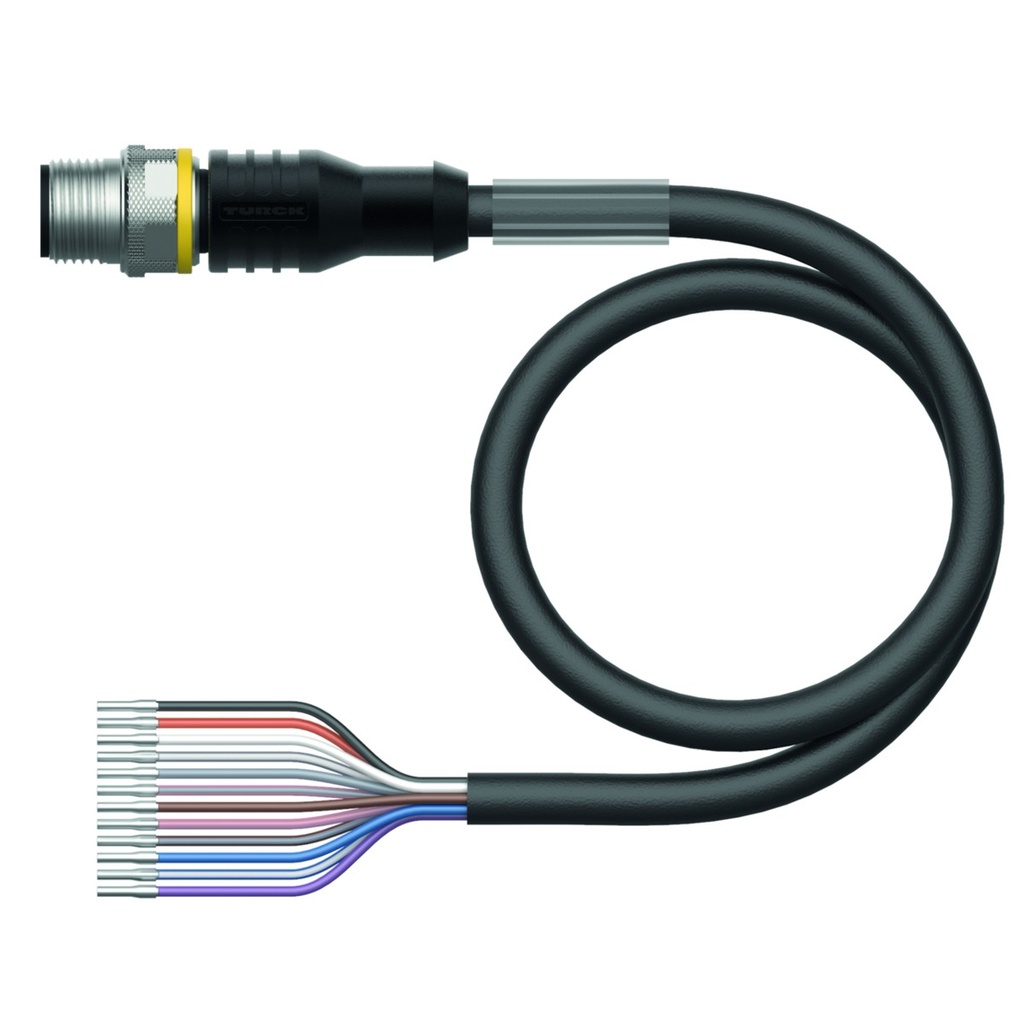

Connection cable RSC12T-2/TEL, M12, male, straight, 12-pin, 2m PVC

RSC12T-2/TEL is a TURCK connection cable with a straight M12 male connector (A-coded, 12-pin) on one end and open cores on the other.

• Connector: M12 x 1, male, straight, A-coded, 12-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PVC, black, Ø 5.9 mm, 12 x 0.14 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG, GY/PK, WH/BU, WH/GY, GY/BN
• Ratings: 1.5 A, 30 V, test voltage 2000 V, more than 100 mating cycles
• Housing: black TPU, nickel-plated brass coupling nut
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

Core colours follow DIN EN 60947-5-2 on cables produced from CW16/2017; earlier cables used DIN 47100 colours, so check the pin-to-colour table in the datasheet when replacing an existing cable.

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and LABS free. Approval: cULus.
