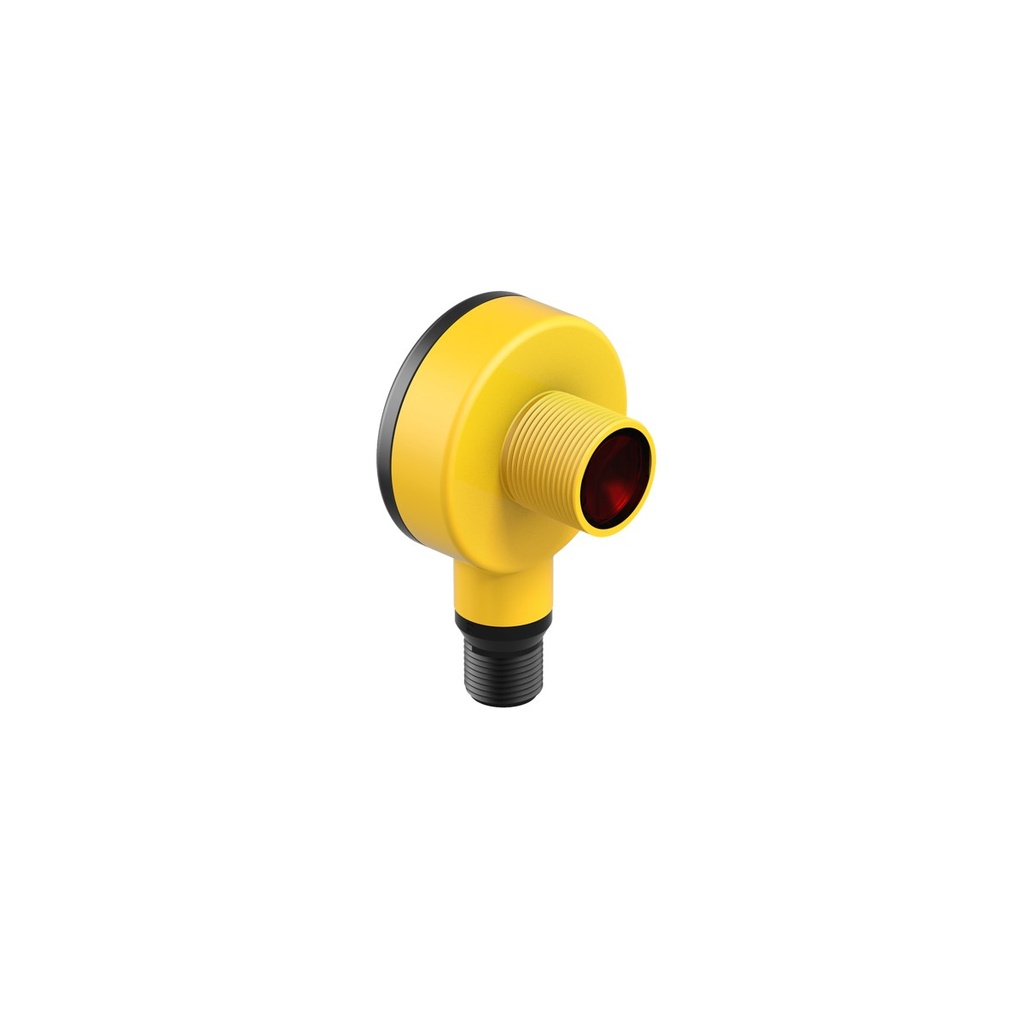

Photo sensor - emitter T183EQ1, opposed 20 m, infrared, 20-250VAC, 1/2" Micro 4-pin, IP69K

T183EQ1 is the emitter of a Banner T18 series AC-powered opposed-mode photo sensor pair, in a right-angle 18 mm housing. Its infrared 950 nm beam reaches a separate T18 AC receiver up to 20 m away; the emitter itself has no output.

• Sensing range: 20 m with a T18 AC receiver
• Output: none (emitter)
• Supply: 20-250 V AC, 50/60 Hz, 20 mA average
• Housing: right-angle, M18x1 thread, PBT polyester, polycarbonate lens, epoxy-encapsulated
• Environment: IP67, NEMA 6P, IP69K, -40...+70 °C
• Connection: integral 1/2"-20UNF Micro 4-pin male connector

The AC supply suits machines without a 24 V DC circuit. The connector is the 1/2" Micro type, not M12, so it needs a matching Micro cordset. A green LED shows power.

Vibration tested to MIL-STD-202F, method 201A; shock to method 213B (75 g operating). UL, CE and UKCA approved.
