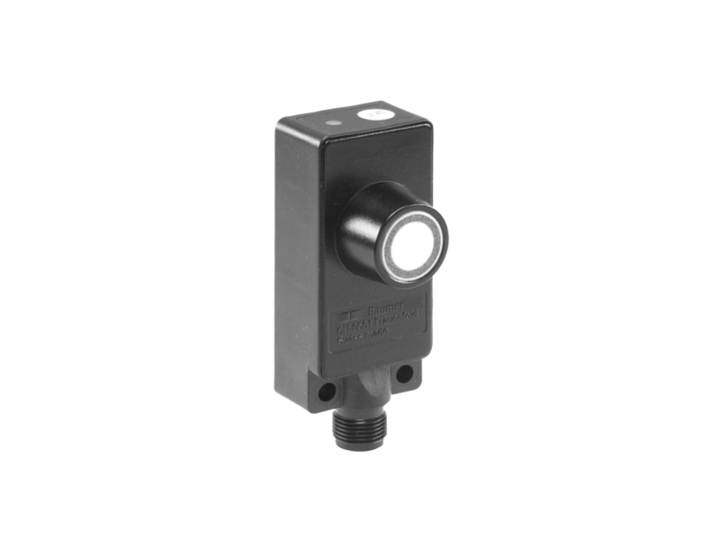

Ultrasonic sensor UNDK 30U6103/S14, 100...1000 mm, 0-10V, M12

UNDK 30U6103/S14 is a Baumer ultrasonic distance sensor in a rectangular housing with a 100...1000 mm measuring range and a 0...10 V analog output. The start and end of the range are taught with the teach-in button on the housing.

• Accuracy: repeatability < 0.5 mm; resolution < 0.3 mm; temperature drift < 2 % of distance to target
• Measuring range: 100...1000 mm, start and end point adjustable; response time < 80 ms; sonic frequency 240 kHz
• Output: analog 0...10 V / 10...0 V, up to 20 mA
• Supply: 15...30 V DC, consumption up to 35 mA; short-circuit and reverse-polarity protected
• Housing: polyester / die-cast zinc, 30 x 65 x 31 mm
• Environment: IP67, operating temperature -10...+60 °C
• Connection: M12 connector

Suited to level and distance measurement up to 1 m where a plain analog signal to a controller without a digital interface is needed. Yellow and red LEDs show the status, and the display flashes when a target is inside the range, which helps with alignment.
