RuuviTag Pro is a rugged IP certified environmental sensor for temperature, air humidity, air pressure and acceleration monitoring. The RuuviTag Pro is based on RuuviTag’s successful concept and additionally brings several outstanding features to the table. RuuviTag Pro is the toughest open source sensor on the market and it fits perfectly with demanding industrial and serious home uses.

RuuviTag Pro monitors environmental conditions and sends the data directly to your mobile device. Ruuvi Station mobile app allows you to view real-time accurate measurements and historical graphs. The app also provides customisable alerts to notify you of critical conditions, such as a melting freezer, excessively high bedroom temperatures that could disrupt sleep, or elevated humidity levels in your basement.

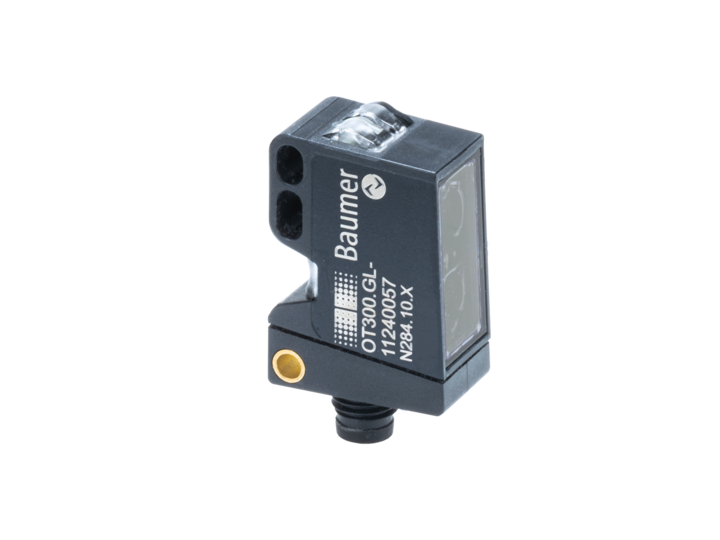

OT300.GL-GLZZJ.72N is a background suppression photo sensor from the Baumer OT300 series in a miniature housing, measuring by time of flight over a 100...1800 mm switching range. A red laser diode (680 nm, laser class 1) focused at 700 mm forms a narrow point beam, and the measured distance value is available over IO-Link.

• Switching range: 100...1800 mm (Tw), set by teach-in or IO-Link
• Output: push-pull (PNP/NPN) and IO-Link V1.1.3, Class A, Light operate, switchable
• Repeat accuracy: ≤ 1400...5500 µm, linearity error ± 10 mm
• Supply: 12...30 V DC, consumption max. 60 mA
• Housing: plastic (ASA, PMMA), 12.9 x 32.3 x 23 mm
• Environment: IP 67, -20...+50 °C
• Connection: M8 connector, 4 pin

Response time is selected over IO-Link: < 4 ms in High Speed, < 8 ms in Standard and < 50 ms in Long Range mode, so the same sensor suits both a fast sorting line and a longer distance with weak remission. Operating hours, operating cycles, supply voltage and device temperature are also readable over IO-Link.

Vibration and shock resistance tested to IEC 60068-2-6:2008 (10 g, 10...2000 Hz) and IEC 60068-2-27:2009 (50 g / 11 ms).

O200.SL.T-GW1J.72NV/F160_H006 is a Baumer O200 miniature SmartReflect light barrier tuned for transparent objects. It forms the barrier between itself and a fixed machine surface, so no reflector is mounted opposite, and an object is detected by the 5% signal attenuation that even a clear bottle or film produces.

• Background position Sde: 15...180 mm, teachable; scanning range 90%...85% Sde
• Detection: minimum signal attenuation 5%, focus at 160 mm
• Output: push-pull, light/dark operate, 50 mA
• Communication: IO-Link V1.1, port class A, 230.4 kBaud, cycle ≥ 0.6 ms
• Supply: 10...30 VDC, typ. 10 mA at 24 VDC; response time < 0.25 ms in High Speed mode
• Housing: rectangular 8 x 25.1 x 15.8 mm, ASA plastic, PMMA optics, M3 stainless steel threaded sleeves; laser class 1, 680 nm
• Environment: IP 67, -20...+50 °C; connection M8 4-pin flylead connector, 200 mm

It is used on filling and labelling lines for PET bottles, glass containers, clear film and blister packs, and wherever there is no room or no mounting point for a reflector on the far side. Background tracking compensates for lens contamination and slow changes in the reference surface, so the threshold stays usable between cleaning intervals; the compensation and the switching point are also readable and settable over IO-Link.

O200.GL-GW1J.72NV/F040_H006 is a Baumer O200 miniature background suppression sensor with a focused laser beam converging at 40 mm, where it resolves objects down to 0.05 mm. Switching point, hysteresis, time filters and counter are set by qTeach, line teach or over IO-Link V1.1, and the same interface returns a 16-bit distance measurement, excess gain, quality and alarm bits.

• Sensing distance Tw: 20...120 mm, teachable; sensing range Tb 3...132 mm
• Output: push-pull, light/dark operate, 50 mA
• Communication: IO-Link V1.1, port class A, 230.4 kBaud, cycle ≥ 0.6 ms
• Supply: 10...30 VDC, typ. 10 mA at 24 VDC
• Response time: ≤ 0.25 ms in High Speed mode, jitter ≤ 0.06 ms
• Housing: rectangular 8 x 25.1 x 15.8 mm, ASA plastic, PMMA optics, M3 stainless steel threaded sleeves; laser class 1, 680 nm
• Environment: IP 67, -20...+50 °C; connection M8 4-pin flylead connector, 200 mm

The focused beam suits small targets and narrow gaps - wire ends, thin edges, holes in a moving strip, or the boundary between stacked sheets. The distance value returned over IO-Link lets a controller follow signal drift long before the switching output starts to fail.

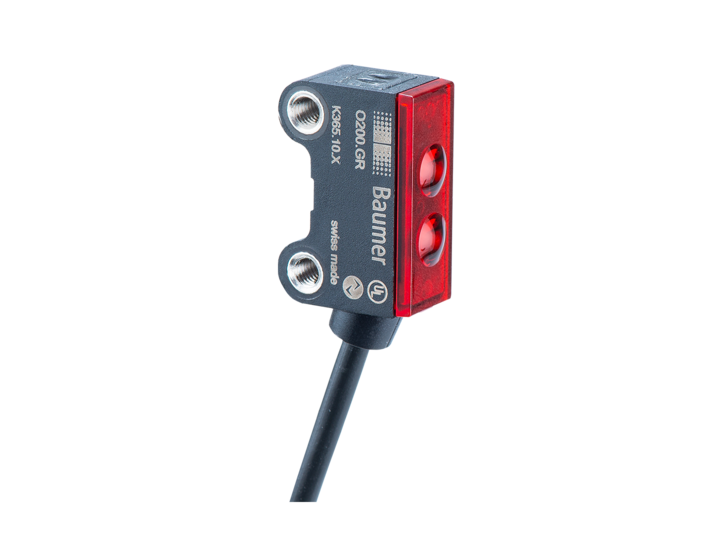

O200.GR.F-PV1Z.72NV/H006_BX15 is a Baumer O200 miniature background suppression sensor with a fixed 15 mm switching distance and V-optics, in which the emitted and received beams cross on the object itself. That geometry gives a repeatable switching point on shiny and transparent surfaces, where coaxial optics read the specular reflection instead of the object.

• Sensing distance Tw: 15 mm, fixed, no adjustment; sensing range Tb 3...15 mm
• Detection: smallest object typ. 0.05 mm at 10 mm
• Output: PNP complementary, light/dark operate, 50 mA
• Supply: 10...30 VDC, typ. 16 mA at 24 VDC; response time < 1 ms
• Housing: rectangular 8 x 25.1 x 14.1 mm, ASA plastic, PMMA optics, M3 stainless steel threaded sleeves; red LED 644 nm
• Environment: IP 67, -30...+50 °C
• Connection: M8 4-pin flylead connector, 200 mm

The fixed preset means commissioning is mounting and wiring only - there is nothing to teach and nothing that can be turned later. It is used at short fixed distances against glass, film, foil and polished metal: edge detection on packaging film, presence of a vial or ampoule, label and blister checks.

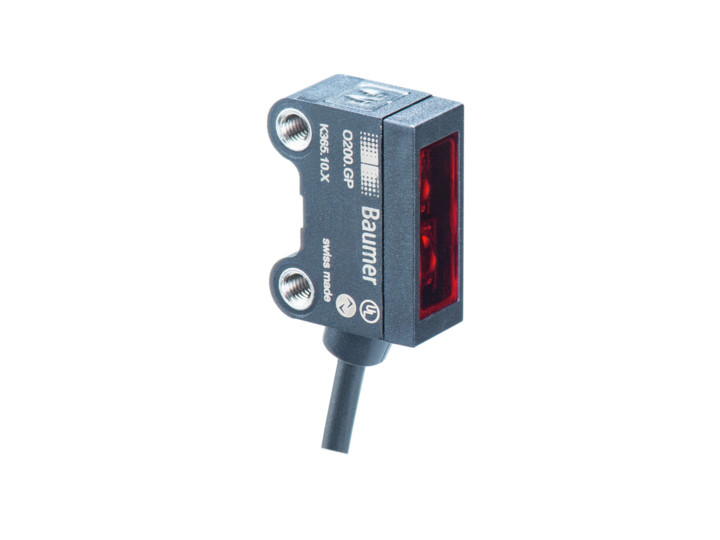

O200.GP-GW1J.72NV/E022_H006 is a Baumer O200 miniature background suppression sensor whose PinPoint LED light is shaped into a line beam. The line covers the full width of an irregular or perforated object, so a part with holes, slots or a ragged edge gives one switching signal instead of a burst of short pulses.

• Sensing distance Tw: 20...120 mm, teachable; sensing range Tb 3...132 mm
• Detection: line beam, smallest object typ. 8 mm at 60 mm
• Output: push-pull, light/dark operate, 50 mA
• Communication: IO-Link V1.1, port class A, 230.4 kBaud, cycle ≥ 0.6 ms
• Supply: 10...30 VDC, typ. 16 mA at 24 VDC; response time < 0.25 ms in High Speed mode
• Housing: rectangular 8 x 25.1 x 15.8 mm, ASA plastic, PMMA optics, M3 stainless steel threaded sleeves; 644 nm
• Environment: IP 67, -30...+50 °C; connection M8 4-pin flylead connector, 200 mm

Typical positions are perforated trays, mesh baskets, crates with gaps and bottle cases on a conveyor, where a point beam would drop out each time it passes an opening. Teach-in is by qTeach or line teach and every parameter is also reachable over IO-Link, so a format change can be loaded from the controller instead of being set by hand at the machine.

U500.PA0.2-GP1J.72F is a Baumer U500 series ultrasonic proximity sensor with a 20...1000 mm operating range, a push-pull switching output and an IO-Link interface. A multiplex version lets several sensors run side by side without mutual interference.

• Accuracy: repeatability 0.5 mm; hysteresis typ. 4 % Sde; temperature drift < 2 % Sde; power-up drift compensated after 15 min
• Sensing distance: 20...1000 mm; response time < 40 ms; sonic frequency 200 kHz
• Outputs: push-pull (works as PNP or NPN), up to 100 mA; IO-Link V1.1, COM 2 (38.4 kBaud), cycle time ≥ 12 ms, port type Class A, also transmits distance
• Supply: 12...30 V DC, typical consumption 35 mA; short-circuit and reverse-polarity protected
• Housing: rectangular, ASA/PMMA plastic, PEEK-coated sensor face, 18 x 45 x 32 mm
• Environment: IP67, operating temperature -25...+65 °C
• Connection: M12 connector, 5-pin

Suited to presence and level detection up to 1 m regardless of colour and transparency. The switching point is set by qTeach, Line-Teach or over IO-Link, which also configures output logic, time filters, beam forming and the function of pin 5.

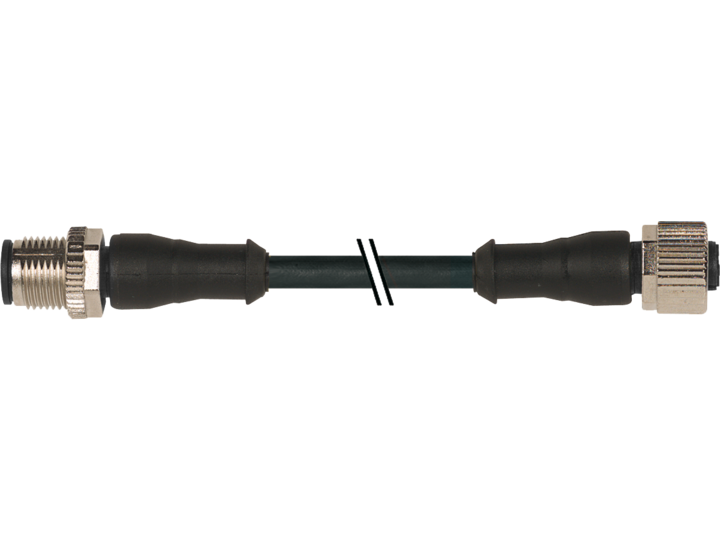

CAM12.A5-11235915 is a Baumer M12 male-to-female cable with an unshielded PUR jacket rated for drag chains and for robot use with torsion up to ±180°/m.

• Connectors: M12 male and M12 female, straight, A-coded, 5-pin, nickel-plated zinc knurled nut
• Cable: PUR, black, Ø 4.5 mm, 5 × 0.34 mm² (AWG 22), unshielded, 1 m
• Rating: max. 4 A per contact, max. 125 V AC/DC (UL: 30 V AC/DC)
• Flexing: approx. 10 million C-track bending cycles, min. bending radius 10 × Ø when moving
• Protection: IP65, IP66K, IP67
• Temperature: -25...+80 °C moving, -40...+80 °C fixed

The cable is halogen-free and silicone-free, flame-retardant to UL 1581 §1090 (H), CSA FT2 and IEC 60332-2-2, and oil-resistant to DIN EN 60811-404.

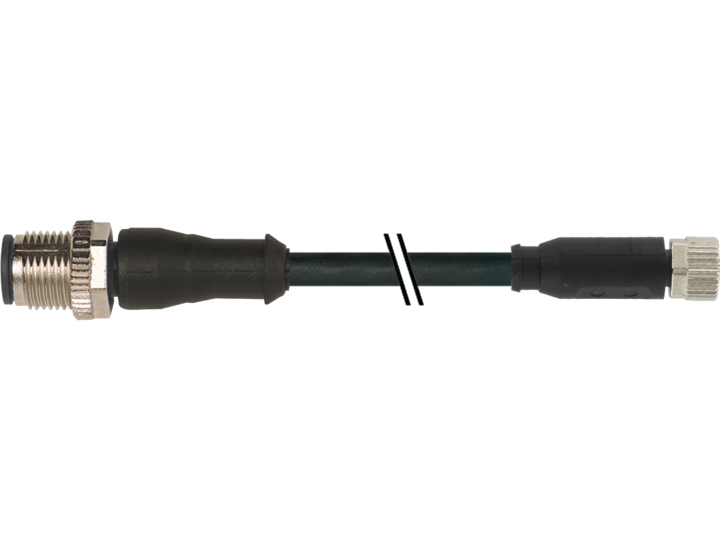

CAM12.A4-11230429 is a Baumer adapter cable from an M12 male to an M8 female connector, both A-coded and 4-pin, for connecting an M8 sensor to an M12 port. The unshielded PUR jacket is rated for drag chains and torsion up to ±180°/m.

• Connectors: M12 male (AF13, 0.6 Nm) and M8 female (AF9, 0.4 Nm), straight, A-coded, 4-pin
• Cable: PUR, black, Ø 4.5 mm, 4 × 0.25 mm² (AWG 24), unshielded, 1 m
• Rating: max. 4 A per contact, max. 50 V AC / 60 V DC
• Flexing: approx. 10 million C-track bending cycles, min. bending radius 10 × Ø when moving
• Protection: IP65, IP66K, IP67
• Temperature: -25...+80 °C moving, -40...+80 °C fixed

Wire colours BN, WH, BU, BK on pins 1-4 at both ends. The cable is halogen-free and flame-retardant to UL 1581 §1090 (H), CSA FT2 and IEC 60332-2-2.

RKC4.4T-0.3-RSC4.4T/TXL is a TURCK extension cable with a straight M12 female connector on one end and a straight M12 male connector on the other (4-pin). The PUR jacket is rated for moving installation, including drag chains.

• Connectors: M12 x 1 female and M12 x 1 male, both straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 0.3 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

PKG4M-0.2-PSG4M/TXL is a TURCK M8 connection cable with a black PUR jacket rated for drag chains.

• Connectors: M8 x 1 female and M8 x 1 male, both straight, 4-pin each, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Cable: 0.2 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², PP core insulation, core colours BN, WH, BU, BK
• Ratings: 4 A, 50 V AC/60 V DC
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

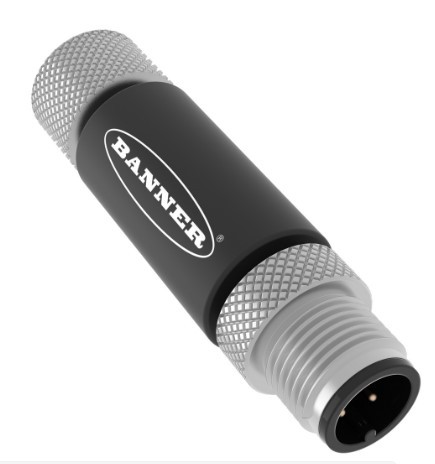

Signal Converter 4-20 mA to Modbus

Voltage: 10-30 V dc; IP65/IP67/IP68

Input: Analog Current, Output: Modbus

Female-Male 4-pin M12 QD

O300.RP-PV1T.72CU is a miniature photoelectric sensor from the Baumer O300 series working against a reflector over a 5 m range. A polarisation filter lets the sensor respond only to the light returned by the reflector, so shiny metal or film in the object's place is not read as a reflector.

• Range: 5 m actual, 6 m nominal, with polarisation filter
• Output: PNP complementary, NO and NC at the same time, light / dark operate, < 100 mA
• Supply: 10...30 V DC, typical consumption 25 mA
• Housing: rectangular, plastic (ASA, PMMA), PMMA optics, 12.9 x 32.3 x 23 mm
• Environment: IP 67, -25...+60 °C
• Connection: 2 m cable, 4 cores

The sensor suits counting and presence checks on conveyors and packaging lines where the sensor and the reflector can face each other. Sensitivity is set with qTeach by holding a ferromagnetic tool against the housing, and mutual interference between sensors mounted side by side is suppressed.

FW-ERKPM0414-PS-S-0810 is a TURCK field-wireable M12 Power female connector with S-coding (3+PE) for power connections up to 12 A and 630 V. The cores are terminated in screw terminals.

• Connector: M12 x 1 female, straight, S-coded, 3+PE, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Ratings: 12 A, 630 V
• Connection: screw terminals, cores up to 1.5 mm² (AWG 16) with ferrule or up to 2.5 mm² (AWG 14) without; cable outer diameter 8...10 mm
• Housing: black plastic, nickel-plated GD-Zn coupling nut, FPM/FKM seal
• Environment: IP67 (assembled and screwed in); -40...+85°C

Approval: cULus recognized.

16 Configurable Digital PNP Channels

• • FLC/ARGEE programmable
  • EtherNet/IP™ Slave
  • Modbus TCP Slave
  • PROFINET Slave
  • Integrated Ethernet Switch
  • 10 Mbps / 100 Mbps supported
  • 2 x RJ45 Sockets for Fieldbus Connection
  • DIN rail mount housing
  • 3 I/O power supply groups each galvanically separated
  • 16 configurable PNP channels, DI or DO
  • 24 VDC
  • Up to 1 A outputs
  • Protection class IP20
