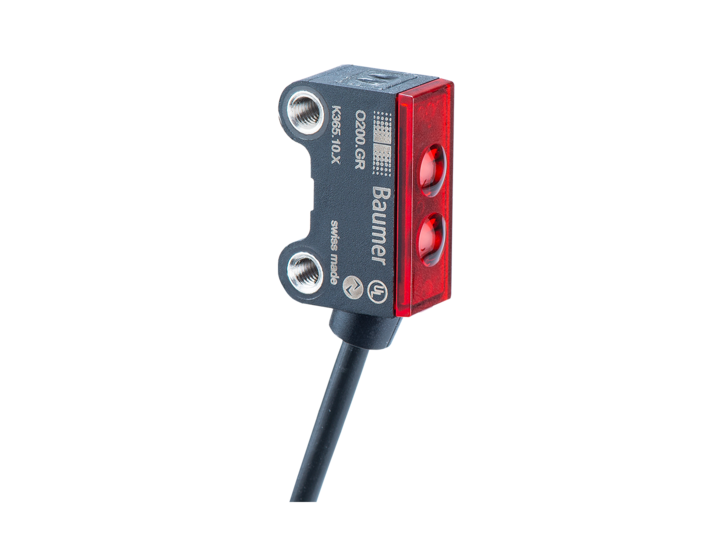

Photo sensor O200.GR.F-PV1Z.72NV/H006_BX15, BGS fixed 15mm, 10-30VDC, PNP NO/NC, M8 pigtail, IP67

O200.GR.F-PV1Z.72NV/H006_BX15 is a Baumer O200 miniature background suppression sensor with a fixed 15 mm switching distance and V-optics, in which the emitted and received beams cross on the object itself. That geometry gives a repeatable switching point on shiny and transparent surfaces, where coaxial optics read the specular reflection instead of the object.

• Sensing distance Tw: 15 mm, fixed, no adjustment; sensing range Tb 3...15 mm
• Detection: smallest object typ. 0.05 mm at 10 mm
• Output: PNP complementary, light/dark operate, 50 mA
• Supply: 10...30 VDC, typ. 16 mA at 24 VDC; response time < 1 ms
• Housing: rectangular 8 x 25.1 x 14.1 mm, ASA plastic, PMMA optics, M3 stainless steel threaded sleeves; red LED 644 nm
• Environment: IP 67, -30...+50 °C
• Connection: M8 4-pin flylead connector, 200 mm

The fixed preset means commissioning is mounting and wiring only - there is nothing to teach and nothing that can be turned later. It is used at short fixed distances against glass, film, foil and polished metal: edge detection on packaging film, presence of a vial or ampoule, label and blister checks.
