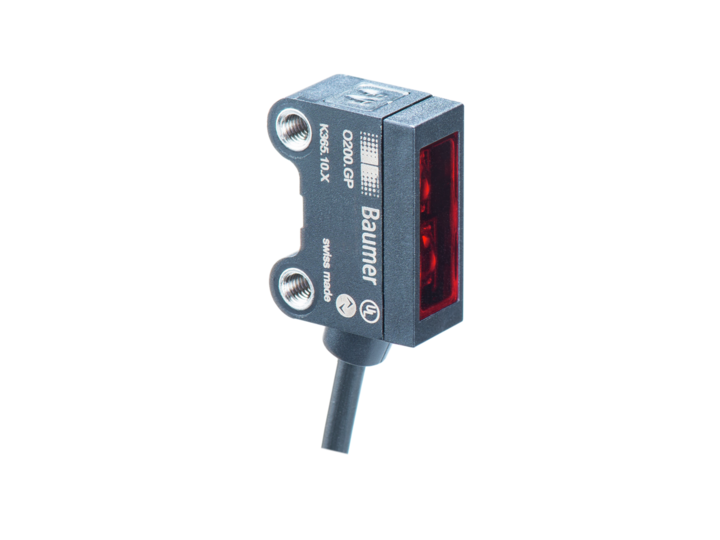

Photo sensor O200.GP-GW1J.72NV/E022_H006, BGS 20-120mm line beam, 10-30VDC, push-pull, IO-Link, M8

O200.GP-GW1J.72NV/E022_H006 is a Baumer O200 miniature background suppression sensor whose PinPoint LED light is shaped into a line beam. The line covers the full width of an irregular or perforated object, so a part with holes, slots or a ragged edge gives one switching signal instead of a burst of short pulses.

• Sensing distance Tw: 20...120 mm, teachable; sensing range Tb 3...132 mm
• Detection: line beam, smallest object typ. 8 mm at 60 mm
• Output: push-pull, light/dark operate, 50 mA
• Communication: IO-Link V1.1, port class A, 230.4 kBaud, cycle ≥ 0.6 ms
• Supply: 10...30 VDC, typ. 16 mA at 24 VDC; response time < 0.25 ms in High Speed mode
• Housing: rectangular 8 x 25.1 x 15.8 mm, ASA plastic, PMMA optics, M3 stainless steel threaded sleeves; 644 nm
• Environment: IP 67, -30...+50 °C; connection M8 4-pin flylead connector, 200 mm

Typical positions are perforated trays, mesh baskets, crates with gaps and bottle cases on a conveyor, where a point beam would drop out each time it passes an opening. Teach-in is by qTeach or line teach and every parameter is also reachable over IO-Link, so a format change can be loaded from the controller instead of being set by hand at the machine.
