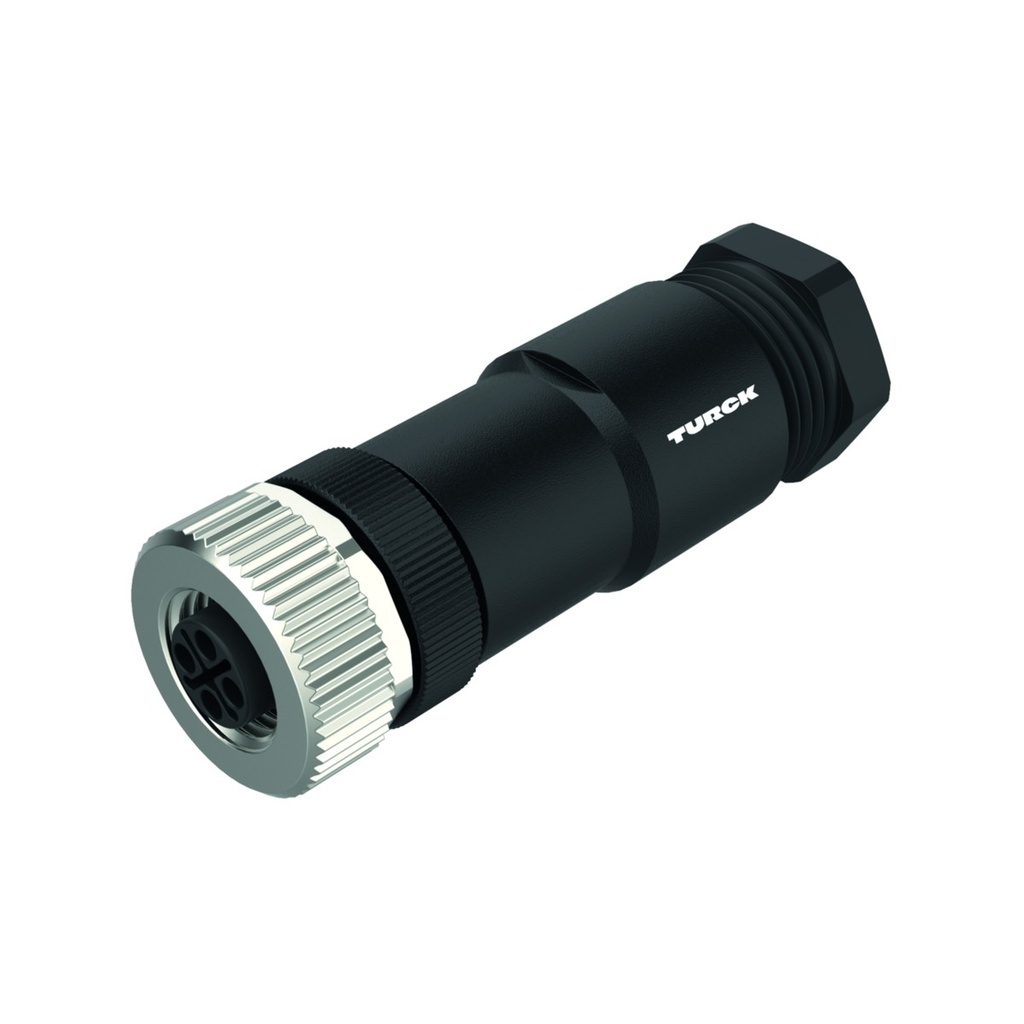

Connector FW-ERKPM0414-PS-S-0810, M12 female straight, S-coded 3+PE, 12A 630V, screw terminals, 8...10mm cable, IP67

FW-ERKPM0414-PS-S-0810 is a TURCK field-wireable M12 Power female connector with S-coding (3+PE) for power connections up to 12 A and 630 V. The cores are terminated in screw terminals.

• Connector: M12 x 1 female, straight, S-coded, 3+PE, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Ratings: 12 A, 630 V
• Connection: screw terminals, cores up to 1.5 mm² (AWG 16) with ferrule or up to 2.5 mm² (AWG 14) without; cable outer diameter 8...10 mm
• Housing: black plastic, nickel-plated GD-Zn coupling nut, FPM/FKM seal
• Environment: IP67 (assembled and screwed in); -40...+85°C

Approval: cULus recognized.
