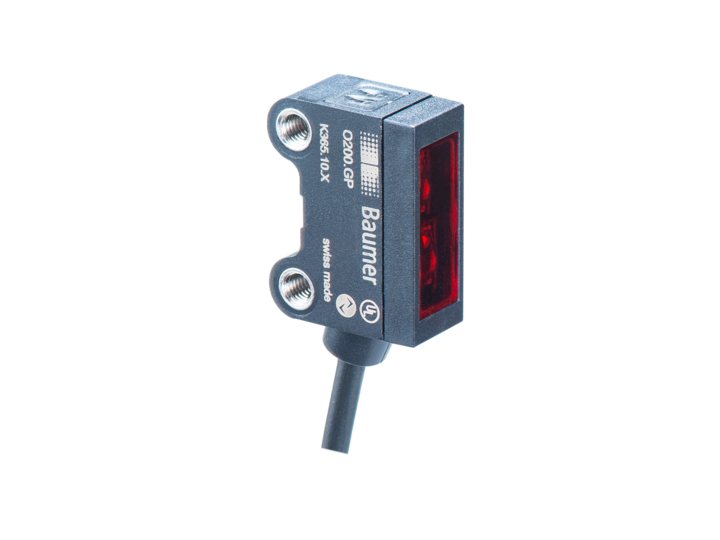

Photo sensor O200.SL.T-GW1J.72NV/F160_H006, SmartReflect 15-180mm, transparent objects, push-pull, IO-Link, M8

O200.SL.T-GW1J.72NV/F160_H006 is a Baumer O200 miniature SmartReflect light barrier tuned for transparent objects. It forms the barrier between itself and a fixed machine surface, so no reflector is mounted opposite, and an object is detected by the 5% signal attenuation that even a clear bottle or film produces.

• Background position Sde: 15...180 mm, teachable; scanning range 90%...85% Sde
• Detection: minimum signal attenuation 5%, focus at 160 mm
• Output: push-pull, light/dark operate, 50 mA
• Communication: IO-Link V1.1, port class A, 230.4 kBaud, cycle ≥ 0.6 ms
• Supply: 10...30 VDC, typ. 10 mA at 24 VDC; response time < 0.25 ms in High Speed mode
• Housing: rectangular 8 x 25.1 x 15.8 mm, ASA plastic, PMMA optics, M3 stainless steel threaded sleeves; laser class 1, 680 nm
• Environment: IP 67, -20...+50 °C; connection M8 4-pin flylead connector, 200 mm

It is used on filling and labelling lines for PET bottles, glass containers, clear film and blister packs, and wherever there is no room or no mounting point for a reflector on the far side. Background tracking compensates for lens contamination and slow changes in the reference surface, so the threshold stays usable between cleaning intervals; the compensation and the switching point are also readable and settable over IO-Link.
