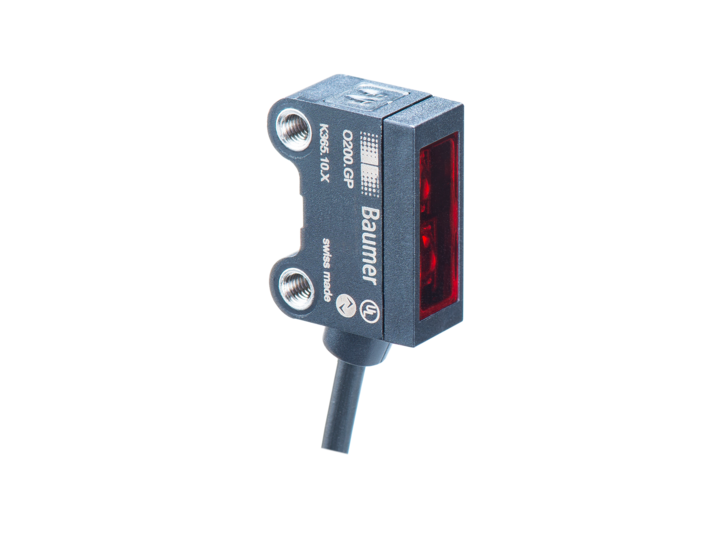

Photo sensor O200.GL-GW1J.72NV/F040_H006, BGS 20-120mm laser, 10-30VDC, push-pull, IO-Link, M8 pigtail

O200.GL-GW1J.72NV/F040_H006 is a Baumer O200 miniature background suppression sensor with a focused laser beam converging at 40 mm, where it resolves objects down to 0.05 mm. Switching point, hysteresis, time filters and counter are set by qTeach, line teach or over IO-Link V1.1, and the same interface returns a 16-bit distance measurement, excess gain, quality and alarm bits.

• Sensing distance Tw: 20...120 mm, teachable; sensing range Tb 3...132 mm
• Output: push-pull, light/dark operate, 50 mA
• Communication: IO-Link V1.1, port class A, 230.4 kBaud, cycle ≥ 0.6 ms
• Supply: 10...30 VDC, typ. 10 mA at 24 VDC
• Response time: ≤ 0.25 ms in High Speed mode, jitter ≤ 0.06 ms
• Housing: rectangular 8 x 25.1 x 15.8 mm, ASA plastic, PMMA optics, M3 stainless steel threaded sleeves; laser class 1, 680 nm
• Environment: IP 67, -20...+50 °C; connection M8 4-pin flylead connector, 200 mm

The focused beam suits small targets and narrow gaps - wire ends, thin edges, holes in a moving strip, or the boundary between stacked sheets. The distance value returned over IO-Link lets a controller follow signal drift long before the switching output starts to fail.
