IGYX 08P17B3/S35L is a Baumer inductive proximity sensor in an M8 barrel with a 2 mm nominal sensing distance and a PNP normally open (NO) output. The sensing face is flush mountable and the stainless steel housing is 36 mm long.

• Sensing distance: 2 mm (Sn), assured 1.6 mm (Sa)
• Output: PNP, normally open (NO), 200 mA, with short-circuit and reverse-polarity protection
• Supply: 10...30 V DC, current consumption up to 15 mA with no load
• Housing: M8 thread, stainless steel, PBT sensing face, 36 mm long, flush mountable
• Environment: IP 67, operating temperature -25...+75 °C
• Connection: M8 connector

The Ø 8 mm body and 36 mm length fit the sensor into grippers, indexing tables and other positions where an M12 barrel does not fit. A 3 kHz switching frequency is enough for presence monitoring of fast moving metal parts. Tightening torque on the M8 thread must not exceed 5 Nm, and the switching point drifts by up to ±10 % of Sr across the temperature range, which matters when the target sits close to the 2 mm limit.

Complies with the EMC requirements of EN 60947-5-2:2007.

IM1-22EX-R/24VDC is a 2-channel TURCK isolating switching amplifier with intrinsically safe input circuits and two relay outputs, each with one NO contact. Six front switches set the output mode (NO/NC) and switch wire-break and short-circuit monitoring on or off separately for each channel.

• Channels: 2 inputs for NAMUR sensors (EN 60947-5-6) or potential-free contacts
• Outputs: 2 relays, 1 NO each, 30 V DC / 250 V AC, ≤2 A, ≤500 VA / 60 W
• Supply: 10...30 V DC (24 V DC nominal)
• Housing: polycarbonate/ABS, 104 x 18 x 110 mm, DIN rail (NS35) or panel mounting
• Connection: screw terminals, 1 x 2.5 mm² / 2 x 1.5 mm²
• Environment: IP20, -25...+60 °C

Used to pass NAMUR sensor or contact signals from a hazardous area to a relay input in the control cabinet. With monitoring switched on, an input fault turns the channel LED red and the output relay drops out. Mechanical contacts need either monitoring switched off or the resistor wiring shown in the datasheet.

Approvals: ATEX, CFMUS, TR CU.

RKS4.5T-5/TEL is a TURCK shielded connection cable with a straight M12 female connector (5-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, straight, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PVC, black, Ø 6.1 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, 0...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS.

Approval: cULus.

RSC-RKC5701-6M is a TURCK shielded CAN bus cable (DeviceNet, CANopen) with a straight M12 male connector on one end and a straight M12 female connector on the other (5-pin, A-coded). The cable carries a separate power pair and a data pair with 120 Ω impedance.

• Connectors: M12 x 1 male / female, straight, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 6 m, PUR, anthracite, Ø 6.7 mm, shielded; power pair AWG 22 (RD, BK), data pair AWG 24 (WH, BU)
• Electrical: 4 A, 60 V, impedance 120 Ω (1 MHz), capacitance 37 pF/m
• Housing: TPU, nickel-plated brass coupling nuts, FPM/FKM seal
• Environment: IP67 (only when screwed in); -40...+80°C fixed, -25...+60°C mobile

The cable is rated for drag chains (at least 5 million bending cycles, up to 3 m/s, bending radius ≥10 x Ø). It is oil resistant per VDE 0472-803, flame retardant per VDE 0472-804/B, UV resistant and free from halogen and LABS.

Approval: UL.

O300.GR-GW1T.72N is a miniature photoelectric sensor from the Baumer O300 series with background suppression and a 30...300 mm switching distance. The sensor detects an object from the angle of the reflected light, so the object's colour and surface gloss do not move the switching point, while everything beyond the taught distance is ignored.

• Switching distance: 30...300 mm, adjustable by qTeach
• Output: push-pull, light / dark operate, 100 mA
• Supply: 10...30 V DC, typical consumption 30 mA
• Housing: rectangular, plastic (ASA, PMMA), PMMA optics, 12.9 x 32.3 x 23 mm
• Environment: IP 67, -30...+60 °C
• Connection: M8 connector, 4 pin

The sensor suits presence and position checks on conveyors, packaging machines and assembly stations where mounting space is tight and the background sits close behind the object. Sensitivity is set with qTeach by holding a ferromagnetic tool against the housing, so there are no buttons and no mechanical adjusters on the body.

OR18.RR-PW1Z.71OV/0010 is a Baumer M18 retro-reflective photo sensor with a polarisation filter and a 3.5 m operating range. The polarisation filter lets the sensor tell the reflector from shiny objects, so glossy packaging or metal parts do not hold the output switched. It has no sensitivity adjustment, so the setting cannot be changed on the machine.

• Operating range: 3.5 m (nominal 4.5 m), red LED 660 nm, fixed sensitivity
• Output: PNP, max. 100 mA, light/dark operate; response time < 1 ms
• Supply: 12...30 V DC, max. 40 mA
• Housing: M18 x 1 threaded, 44.8 mm long, ABS plastic, PMMA lens
• Environment: IP67; -25...+55 °C
• Connection: M12 4-pin connector on a 100 mm flying lead

The short 44.8 mm body with a 100 mm lead fits where there is no room behind the mounting plate for a rear connector and cordset. Pin 2 (white) is a control input. A green LED shows alignment and lens soiling, a yellow LED shows the output state.

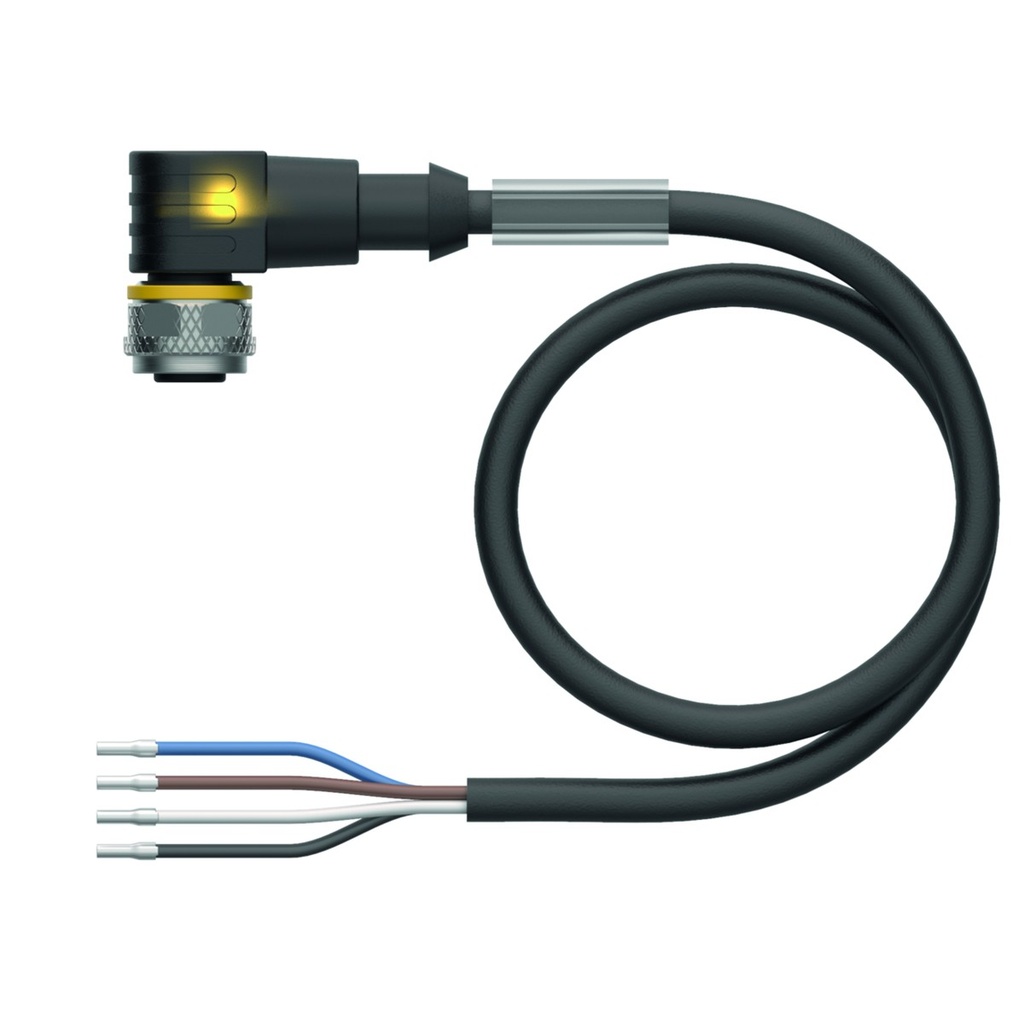

WKC4.4T-P7X2-5/TXL is a TURCK connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other. The connector has two built-in LED indicators: green shows the supply, yellow the PNP signal on pin 4.

• Connector: M12 x 1, female, angled, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 30 V DC, more than 100 mating cycles
• Housing: translucent TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

RKS8T-25/TXL is a TURCK shielded connection cable with a straight M12 female connector (8-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, straight, A-coded, 8-pin, gold-plated brass (CuZn) contacts
• Cable: 25 m, PUR, black, Ø 6.3 mm, 8 x 0.25 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG
• Shield: aluminium foil and tinned copper wire
• Ratings: 2 A, 30 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

UNDK 30U6103/S14 is a Baumer ultrasonic distance sensor in a rectangular housing with a 100...1000 mm measuring range and a 0...10 V analog output. The start and end of the range are taught with the teach-in button on the housing.

• Accuracy: repeatability < 0.5 mm; resolution < 0.3 mm; temperature drift < 2 % of distance to target
• Measuring range: 100...1000 mm, start and end point adjustable; response time < 80 ms; sonic frequency 240 kHz
• Output: analog 0...10 V / 10...0 V, up to 20 mA
• Supply: 15...30 V DC, consumption up to 35 mA; short-circuit and reverse-polarity protected
• Housing: polyester / die-cast zinc, 30 x 65 x 31 mm
• Environment: IP67, operating temperature -10...+60 °C
• Connection: M12 connector

Suited to level and distance measurement up to 1 m where a plain analog signal to a controller without a digital interface is needed. Yellow and red LEDs show the status, and the display flashes when a target is inside the range, which helps with alignment.

RKS4.5T-2/TXL is a TURCK shielded connection cable with a straight M12 female connector (5-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, straight, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PUR, black, Ø 5.7 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

PKW3M-P7X2-10/TEL is a TURCK connection cable with an angled M8 female connector (3-pin) on one end and open cores on the other. A two-colour LED is built into the connector.

• Connector: M8 x 1, female, angled, 3-pin, gold-plated brass (CuZn) contacts
• Indication: two-colour LED (PNP) – green shows supply, yellow shows switching state
• Cable: 10 m, PVC, black, Ø 4.3 mm, 3 x 0.34 mm², core colours BN, BU, BK
• Ratings: 4 A, 30 VDC, more than 100 mating cycles
• Housing: translucent TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.
