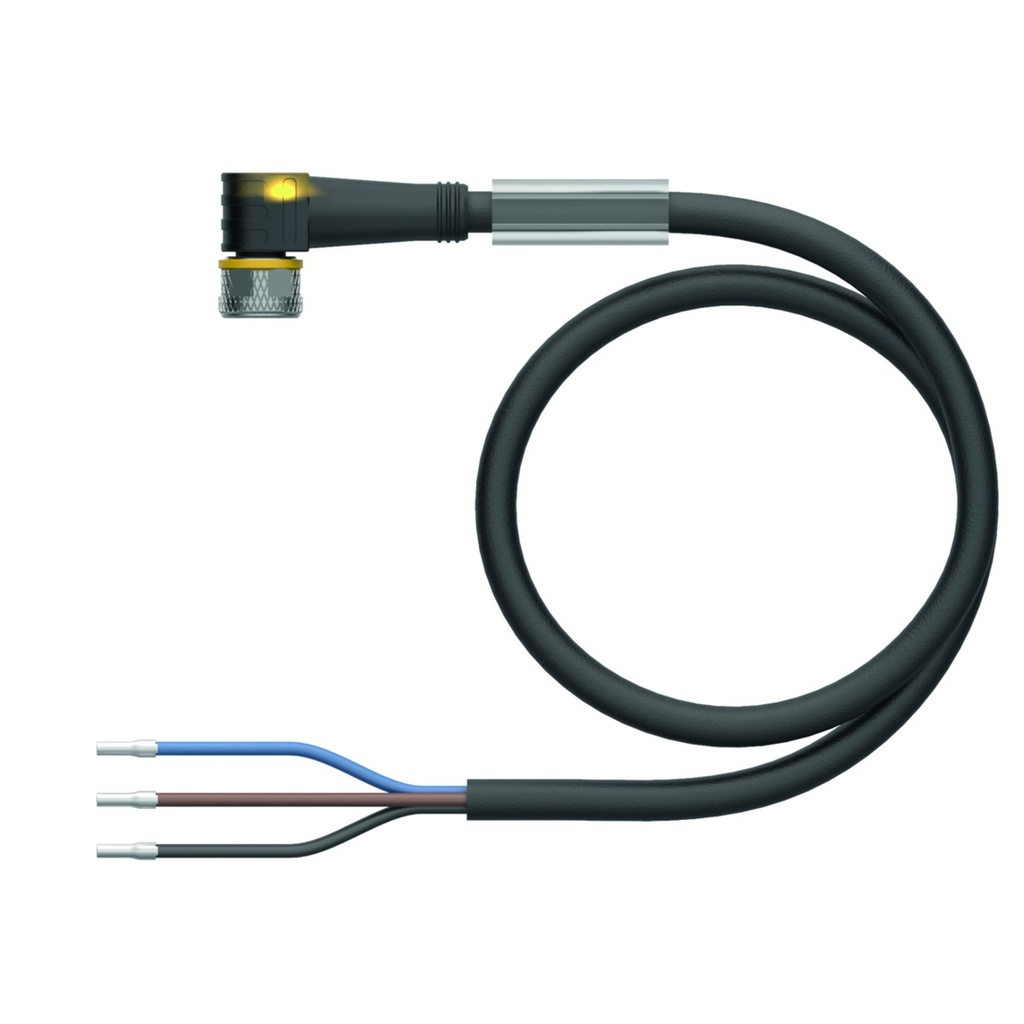

Connection cable PKW3M-P7X2-10/TEL, M8, female, angled, 3-pin, 10m PVC, LED

PKW3M-P7X2-10/TEL is a TURCK connection cable with an angled M8 female connector (3-pin) on one end and open cores on the other. A two-colour LED is built into the connector.

• Connector: M8 x 1, female, angled, 3-pin, gold-plated brass (CuZn) contacts
• Indication: two-colour LED (PNP) – green shows supply, yellow shows switching state
• Cable: 10 m, PVC, black, Ø 4.3 mm, 3 x 0.34 mm², core colours BN, BU, BK
• Ratings: 4 A, 30 VDC, more than 100 mating cycles
• Housing: translucent TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.
