RKC8T-30/TXL is a TURCK connection cable with a straight M12 female connector (8-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M12 x 1, female, straight, A-coded, 8-pin, gold-plated brass (CuZn) contacts
• Cable: 30 m, PUR, black, Ø 5.8 mm, 8 x 0.25 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG
• Ratings: 2 A, 30 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

RKC4.4T-0.3-RSC4.4T/TEL is a TURCK extension cable with a straight M12 female connector on one end and a straight M12 male connector on the other (4-pin). The cable has a black PVC jacket.

• Connectors: M12 x 1 female and M12 x 1 male, both straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 0.3 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

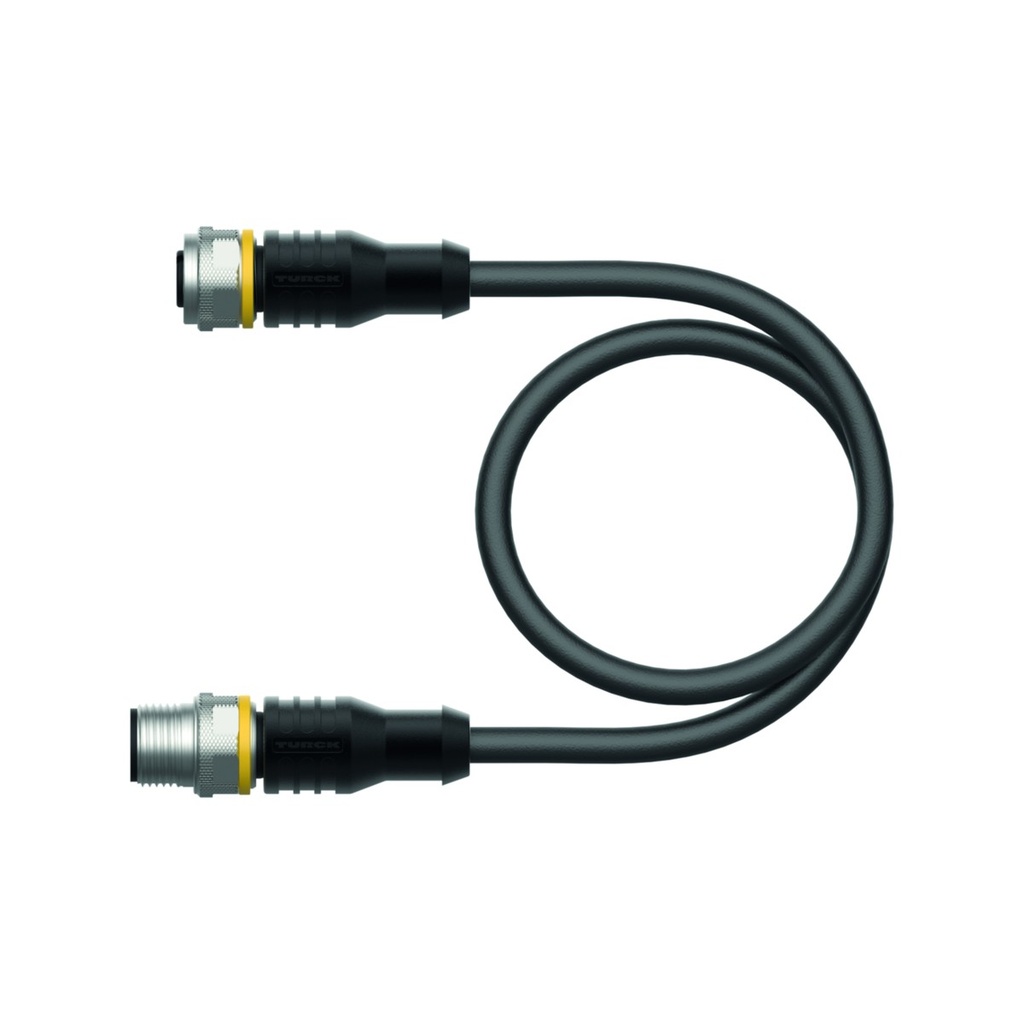

RKC4.4T-10-RSC4.4T/TEL is a TURCK extension cable with a straight M12 female connector on one end and a straight M12 male connector on the other (4-pin). The cable has a black PVC jacket.

• Connectors: M12 x 1 female and M12 x 1 male, both straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

RKC4.4T-2-RSC4.4T/TEL is a TURCK extension cable with a straight M12 female connector on one end and a straight M12 male connector on the other (4-pin). The cable has a black PVC jacket.

• Connectors: M12 x 1 female and M12 x 1 male, both straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

RKC8T-0.5-RSC8T/TXL is a TURCK extension cable with a straight M12 female connector on one end and a straight M12 male connector on the other (8-pin). The PUR jacket is rated for moving installation, including drag chains.

• Connectors: M12 x 1 female and M12 x 1 male, both straight, A-coded, 8-pin, gold-plated brass (CuZn) contacts
• Cable: 0.5 m, PUR, black, Ø 5.8 mm, 8 x 0.25 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG
• Ratings: 2 A, 30 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

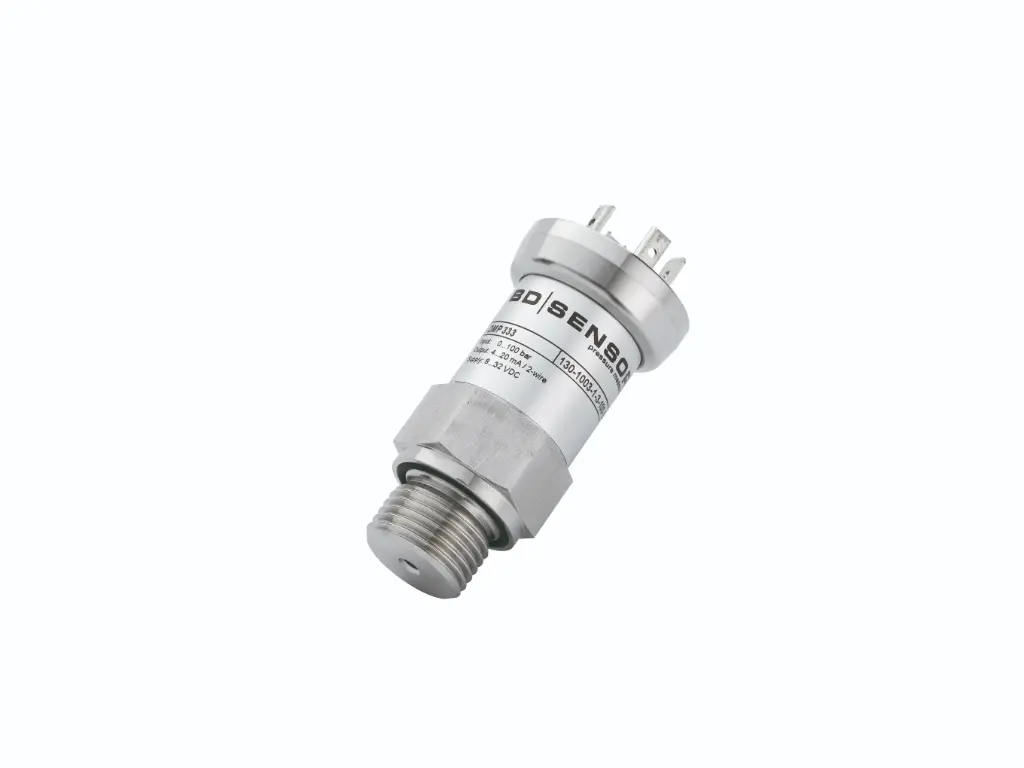

DMP 333 is a stainless steel pressure transmitter specially designed for hydraulic applications with high static and dynamic pressure. It offers excellent long-term stability, even under rapidly changing pressures and both positive and negative pressure peaks. Thanks to its modular design, different stainless steel sensors and electronic modules can be combined with a wide range of electrical and mechanical connections, creating many variants to meet almost all hydraulic application requirements. Typical fields of use include mechanical and plant engineering, refrigeration technology, utility vehicles and mobile hydraulics.

PKG 3M-2-PSG 3M is a TURCK M8 connection cable with a straight female connector on one end and a straight male connector on the other, 3-pin, with a yellow PVC jacket and yellow TPU connector bodies.

• Connectors: M8 x 1 female (3-pin) and M8 x 1 male (3-pin), both straight, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Cable: 2 m, PVC, yellow, Ø 4.39 mm, 3 x 24 AWG (approx. 0.25 mm²), tinned copper conductors, core colours BN, BU, BK
• Ratings: 4 A, 125 V AC/DC
• Housing: TPU, nickel-plated brass coupling nut, FKM/FPM O-ring
• Environment: female IP67, male IP68, NEMA 1, 3, 4, 6P; -40...+105°C fixed, 5...+105°C mobile

Rated for C-track use: 10 million bending cycles at a bending radius of 20 x Ø (20 °C, 50 % RH, up to 0.5 cycles per second); cold flexibility down to -40°C.

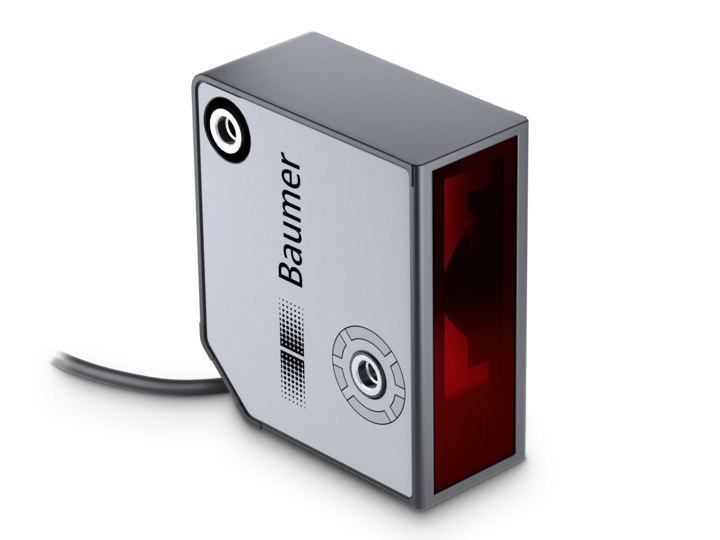

OM60-PR0135.HH.YUFV is a Baumer OM60 laser distance sensor with a 70 mm measuring range at 65...135 mm and a spot beam. The distance is output as an analogue 0...10 V or 0...5 V signal, and at the same time the 32-bit measured value and the sensor settings are available over IO-Link 1.1.3.

• Measuring range: 65...135 mm (70 mm); repeatability 0.7 µm, linearity ±30 µm
• Output: 0...10 V / 0...5 V analogue, IO-Link V1.1.3 (Class A, COM3)
• Supply: 18...30 V DC, max. 100 mA
• Housing: 27.2 x 66 x 57 mm, PBT-ASA plastic, PMMA front; red laser 660 nm, laser class 1
• Environment: IP67; -10...+50 °C; ambient light up to 15 klx
• Connection: M12 5-pin connector on a 300 mm cable

A measuring frequency of 2000 Hz and a response time of 1 ms allow measurement on moving parts. Exposure time adjusts automatically, so the reading stays stable when the material colour or surface changes. The IO-Link process data follow the Smart Sensor Profile and carry, besides the measured value, two switching channels and quality and alarm bits.

Vibration resistance tested to IEC 60068-2-6, shock resistance to IEC 60068-2-27.

OM60-LR0060.HH.TXFV is a Baumer OM60 laser distance sensor with a 20 mm measuring range at 40...60 mm and a line-shaped beam. The line beam is intended for structured surfaces, where a spot beam would follow individual grooves or fibres. The measured value is read over RS485 with the Modbus RTU protocol.

• Measuring range: 40...60 mm (20 mm); repeatability 0.27 µm, linearity ±6 µm
• Output: RS485, Modbus RTU, 115200 Bd (adjustable)
• Supply: 18...30 V DC, max. 100 mA
• Housing: 27.2 x 66 x 57 mm, PBT-ASA plastic, PMMA front; red laser 660 nm, laser class 1
• Environment: IP67; -10...+50 °C; ambient light up to 15 klx
• Connection: M12 5-pin connector on a 300 mm cable

A measuring frequency of 3300 Hz and a response time of 0.65 ms allow measurement on moving parts. Exposure time adjusts automatically, so the reading stays stable when the material colour or surface changes. Settings are made on the display, over RS485 or through the external input.

Vibration resistance tested to IEC 60068-2-6, shock resistance to IEC 60068-2-27.

RKS4.4T-5/TEL is a TURCK shielded connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PVC, black, Ø 5.4 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, 0...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS.

Approval: cULus.

RKS4.4T-10/TXL is a TURCK shielded connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PUR, black, Ø 5.3 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

PKG4M-10/TXL is a TURCK connection cable with a straight M8 female connector (4-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M8 x 1, female, straight, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

TX710-P3CV01 is a 10.1" touch display from the TURCK TX700 series with a built-in CODESYS V3 PLC, TARGET and WEB VISU visualisation. The PLC program and the screens are built in CODESYS V3 and loaded into the device over Ethernet.

• Display: 10.1" TFT, 1280 x 800 (WXGA), 16:9, 16M colours, 500 cd/m², capacitive glass front, dimmable to 0 %
• Communication: 3 x RJ45 Ethernet 10/100 Mbit, 1 x RS232/RS485/RS422, 2 x USB host (v2.0, max. 500 mA), SD card slot
• Expansion: 2 slots for up to 4 plug-in modules (I/O, CANopen, PROFIBUS DP, RS485, RS232, LTE/Wi-Fi)
• PLC: CODESYS V3.5.12.10, IEC 61131-3 (IL, LD, FBD, SFC, ST), 20000 kB program memory, 63 kB retain memory; ARM Cortex A9, Dual core 800 MHz, 1024 MB RAM, 4 GB Flash, battery-backed clock
• Supply: 24 VDC (10...32 VDC), max. 1.0 A
• Housing: metal, front 282 x 197 x 56 mm, cut-out 271 x 186 mm, mounting depth 56+8 mm
• Environment: IP66 front, IP20 rear, NEMA 12/4X; -20...+60 °C, 5...85 % RH non-condensing

Built into a cabinet door or control desk. Mounting brackets and the power connector come in the 10.1" TX700 mounting kit, available as an accessory; I/O and fieldbus modules plug into the expansion slots and are ordered separately.

PKG3M-2/TEL is a TURCK connection cable with a straight M8 female connector (3-pin) on one end and open cores on the other.

• Connector: M8 x 1, female, straight, 3-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PVC, black, Ø 4.3 mm, 3 x 0.34 mm², core colours BN, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

TBIL-M1-16DIP is a TURCK I/O Hub that adds 16 digital PNP inputs to an IO-Link master through a single IO-Link connection. Field sensors wire directly to the hub's 8 M12 ports, and the hub reports their states to the master as one process data telegram.

• Channels: 8x M12 sensor ports, 2 inputs per port (16 digital PNP inputs)
• Inputs: max. 7 mA, low level -3...5 VDC, high level 11...30 VDC (EN 61131-2, type 1/3), group diagnostics
• Communication: IO-Link V1.1 Class A, COM2 / 38.4 kbps, 1x M12 IO-Link connection
• Power: 24 VDC (18...30 VDC), M12 connection, max. 4 A per module
• Housing: glass-fibre reinforced PA6-GF30, 150 x 54 x 27.4 mm
• Environment: IP65/IP67/IP69K, -40...+70°C

The hub extends an IO-Link master with additional digital inputs in a control cabinet or field junction box, without using a separate master port for each sensor. Input signal inversion is set through the IO-Link master's ISDU parameters, so no separate configuration tool is needed.

Complies with CE, UKCA, ATEX zone 2/22 and CCC-Ex requirements, as well as the cULus certificate (LISTED 21 W2). MTTF 139 years per SN 29500 (Ed. 99) at 20°C.

RKC12T-20/TXL is a TURCK connection cable with a straight M12 female connector (12-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M12 x 1, female, straight, A-coded, 12-pin, gold-plated brass (CuZn) contacts
• Cable: 20 m, PUR, black, Ø 5.4 mm, 12 x 0.14 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG, GY/PK, WH/BU, WH/GY, GY/BN
• Ratings: 1.5 A, 30 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

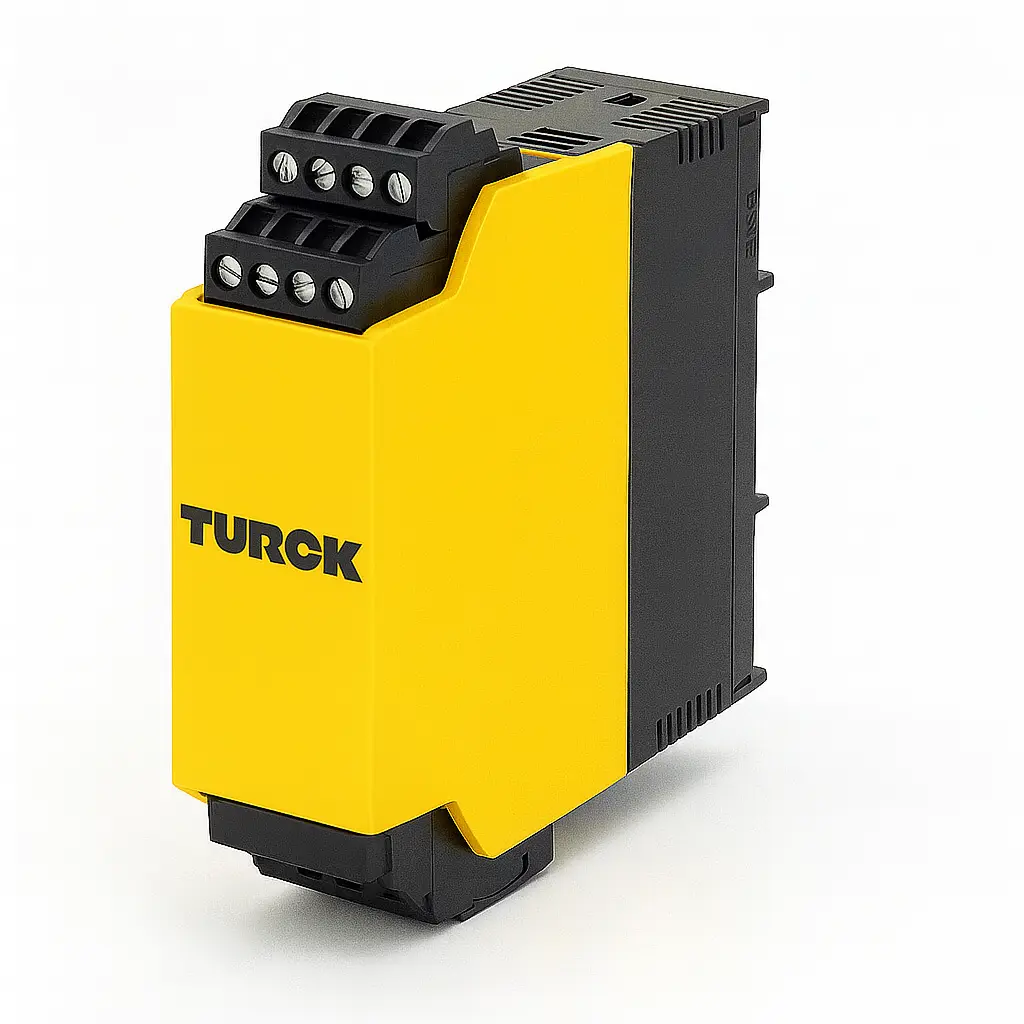

IM1-22EX-R is a 2-channel TURCK isolating switching amplifier with intrinsically safe input circuits and two relay outputs, each with one NO contact. Six front switches set the output mode (NO/NC) and switch wire-break and short-circuit monitoring on or off separately for each channel.

• Channels: 2 inputs for NAMUR sensors (EN 60947-5-6) or potential-free contacts
• Outputs: 2 relays, 1 NO each, 30 V DC / 250 V AC, ≤2 A, ≤500 VA / 60 W
• Supply: 20...125 V DC / 20...250 V AC (40...70 Hz)
• Housing: polycarbonate/ABS, 104 x 18 x 110 mm, DIN rail (NS35) or panel mounting
• Connection: screw terminals, 1 x 2.5 mm² / 2 x 1.5 mm²
• Environment: IP20, -25...+70 °C

Used to pass NAMUR sensor or contact signals from a hazardous area to a relay input in the control cabinet. With monitoring switched on, an input fault turns the channel LED red and the output relay drops out. Mechanical contacts need either monitoring switched off or the resistor wiring shown in the datasheet.

Approvals: ATEX, IECEx, UL, CFMUS, CSA, TR CU; for use in Zone 2. SIL 2 according to exida FMEDA.

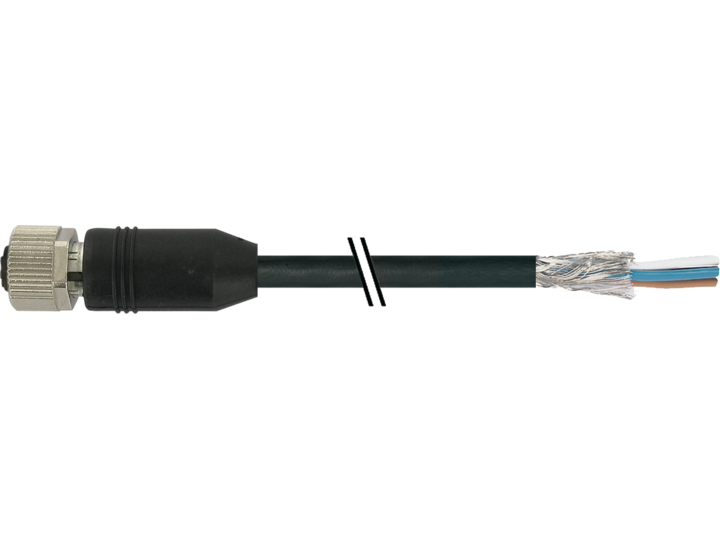

CAM12.A12-11230359 is a Baumer shielded M12 female cordset, 12-pin A-coded, with open-ended wires on the other end. The tinned-copper braid gives approx. 80 % coverage, and the wire ends carry a labelling sleeve.

• Connector: M12 female, straight, A-coded, 12-pin, FKM seal, nickel-plated zinc knurled nut
• Cable: PUR, black, Ø 6.5 mm, 12 × 0.14 mm² (AWG 26), shielded, 5 m, 80 mm stripped
• Rating: max. 1.5 A per contact, max. 30 V AC/DC
• Flexing: approx. 5 million C-track bending cycles, torsion ±30°/m
• Protection: IP65, IP66K, IP67
• Temperature: -25...+80 °C moving, -40...+80 °C fixed

Wire colours on pins 1-12: BN, BU, WH, GN, PK, YE, BK, GY, RD, VT, GYPK, RDBU. The cable is halogen-free, silicone-free and UV-resistant, flame-retardant to UL 1581 §1090 (H), CSA FT2 and IEC 60332-2-2.

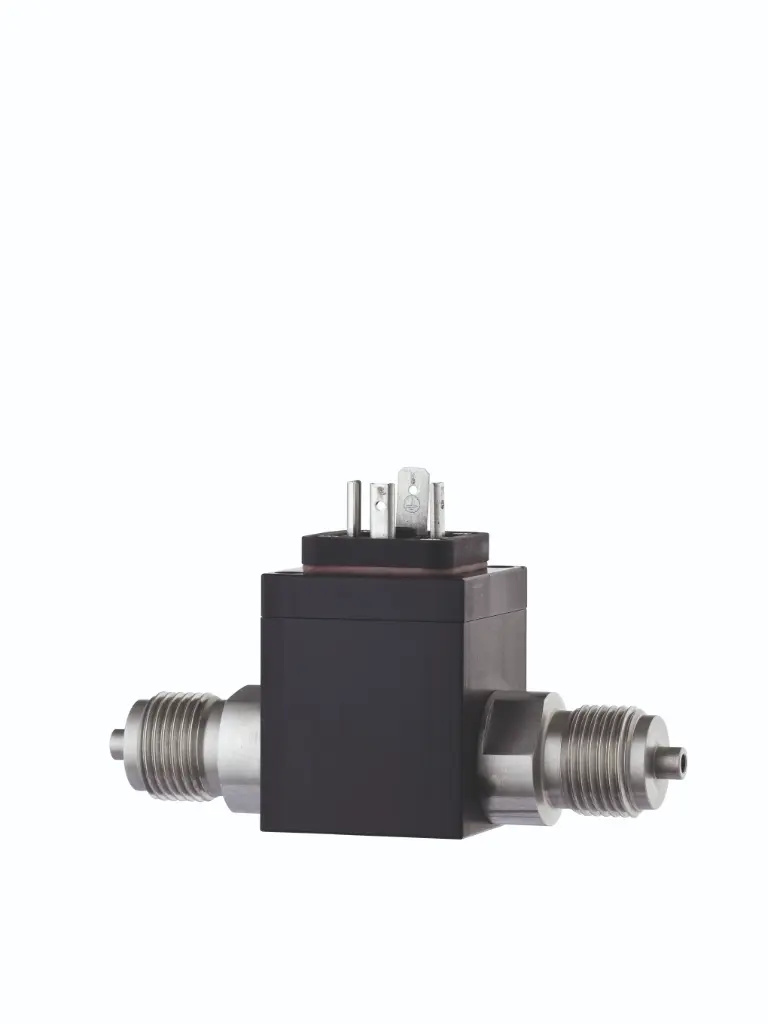

The BD Sensors DMD331 is a compact differential pressure transmitter designed for precise monitoring of gases and non-aggressive liquids. It delivers stable, high-accuracy measurements even at low pressure ranges, making it ideal for HVAC, filtration, cleanroom, and process control applications. Reliable, robust, and easy to integrate.
