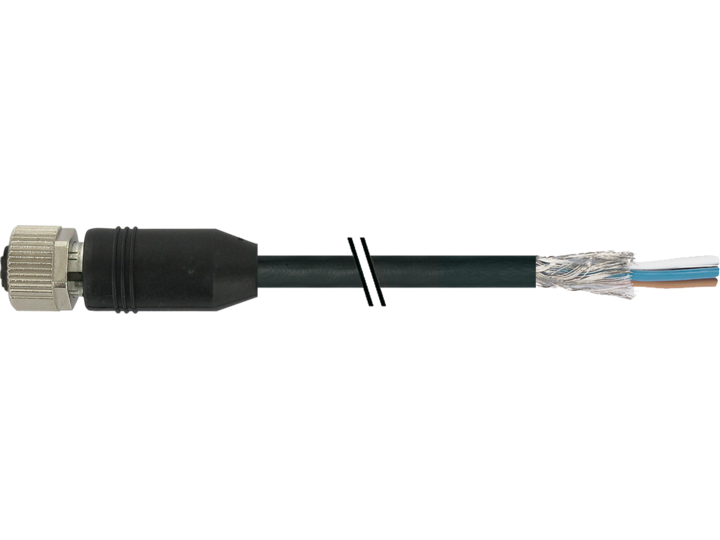

Connection cable CAM12.A12-11230359, M12 female, 12-pin, A-coded, straight, 5m PUR cable, shielded

CAM12.A12-11230359 is a Baumer shielded M12 female cordset, 12-pin A-coded, with open-ended wires on the other end. The tinned-copper braid gives approx. 80 % coverage, and the wire ends carry a labelling sleeve.

• Connector: M12 female, straight, A-coded, 12-pin, FKM seal, nickel-plated zinc knurled nut
• Cable: PUR, black, Ø 6.5 mm, 12 × 0.14 mm² (AWG 26), shielded, 5 m, 80 mm stripped
• Rating: max. 1.5 A per contact, max. 30 V AC/DC
• Flexing: approx. 5 million C-track bending cycles, torsion ±30°/m
• Protection: IP65, IP66K, IP67
• Temperature: -25...+80 °C moving, -40...+80 °C fixed

Wire colours on pins 1-12: BN, BU, WH, GN, PK, YE, BK, GY, RD, VT, GYPK, RDBU. The cable is halogen-free, silicone-free and UV-resistant, flame-retardant to UL 1581 §1090 (H), CSA FT2 and IEC 60332-2-2.
