I/O Hub TBIL-M1-16DIP, 16 digital PNP inputs, IO-Link, M12

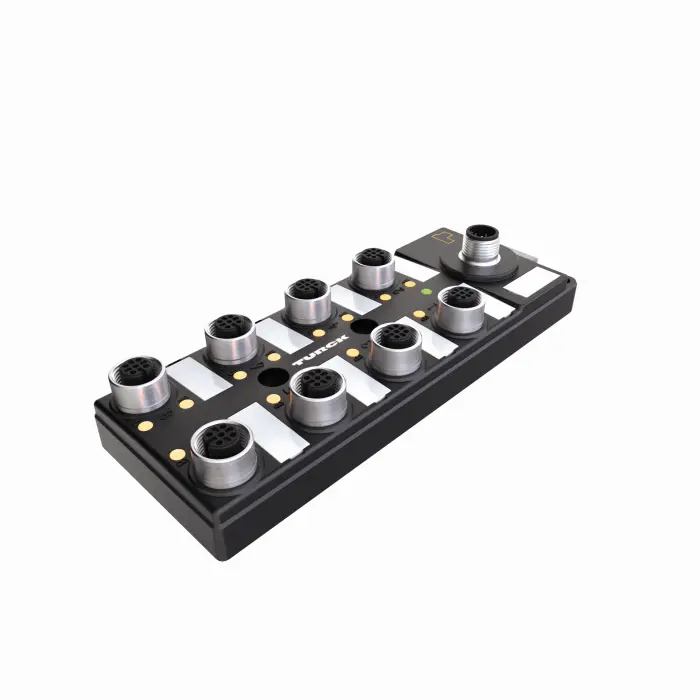

TBIL-M1-16DIP is a TURCK I/O Hub that adds 16 digital PNP inputs to an IO-Link master through a single IO-Link connection. Field sensors wire directly to the hub's 8 M12 ports, and the hub reports their states to the master as one process data telegram.

• Channels: 8x M12 sensor ports, 2 inputs per port (16 digital PNP inputs)
• Inputs: max. 7 mA, low level -3...5 VDC, high level 11...30 VDC (EN 61131-2, type 1/3), group diagnostics
• Communication: IO-Link V1.1 Class A, COM2 / 38.4 kbps, 1x M12 IO-Link connection
• Power: 24 VDC (18...30 VDC), M12 connection, max. 4 A per module
• Housing: glass-fibre reinforced PA6-GF30, 150 x 54 x 27.4 mm
• Environment: IP65/IP67/IP69K, -40...+70°C

The hub extends an IO-Link master with additional digital inputs in a control cabinet or field junction box, without using a separate master port for each sensor. Input signal inversion is set through the IO-Link master's ISDU parameters, so no separate configuration tool is needed.

Complies with CE, UKCA, ATEX zone 2/22 and CCC-Ex requirements, as well as the cULus certificate (LISTED 21 W2). MTTF 139 years per SN 29500 (Ed. 99) at 20°C.
