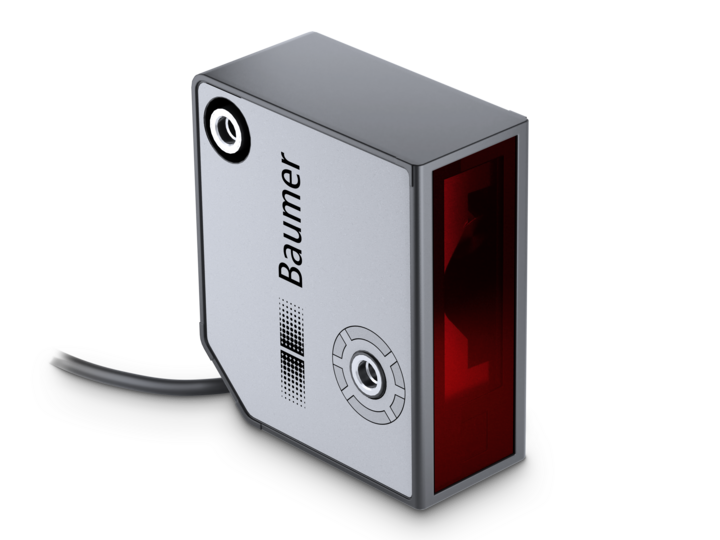

Laser distance sensor OM60-LR0060.HH.TXFV, 40...60 mm, RS485 Modbus RTU, 18-30VDC, M12 5-pin, 0.3 m cable

OM60-LR0060.HH.TXFV is a Baumer OM60 laser distance sensor with a 20 mm measuring range at 40...60 mm and a line-shaped beam. The line beam is intended for structured surfaces, where a spot beam would follow individual grooves or fibres. The measured value is read over RS485 with the Modbus RTU protocol.

• Measuring range: 40...60 mm (20 mm); repeatability 0.27 µm, linearity ±6 µm
• Output: RS485, Modbus RTU, 115200 Bd (adjustable)
• Supply: 18...30 V DC, max. 100 mA
• Housing: 27.2 x 66 x 57 mm, PBT-ASA plastic, PMMA front; red laser 660 nm, laser class 1
• Environment: IP67; -10...+50 °C; ambient light up to 15 klx
• Connection: M12 5-pin connector on a 300 mm cable

A measuring frequency of 3300 Hz and a response time of 0.65 ms allow measurement on moving parts. Exposure time adjusts automatically, so the reading stays stable when the material colour or surface changes. Settings are made on the display, over RS485 or through the external input.

Vibration resistance tested to IEC 60068-2-6, shock resistance to IEC 60068-2-27.
