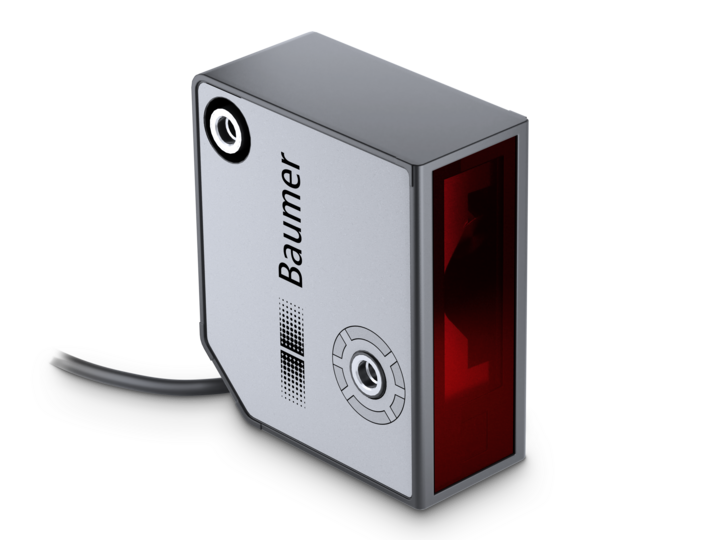

Laser distance sensor OM60-PR0135.HH.YUFV, 65...135 mm, IO-Link, 0-10V, 18-30VDC, M12 5-pin, 0.3 m cable

OM60-PR0135.HH.YUFV is a Baumer OM60 laser distance sensor with a 70 mm measuring range at 65...135 mm and a spot beam. The distance is output as an analogue 0...10 V or 0...5 V signal, and at the same time the 32-bit measured value and the sensor settings are available over IO-Link 1.1.3.

• Measuring range: 65...135 mm (70 mm); repeatability 0.7 µm, linearity ±30 µm
• Output: 0...10 V / 0...5 V analogue, IO-Link V1.1.3 (Class A, COM3)
• Supply: 18...30 V DC, max. 100 mA
• Housing: 27.2 x 66 x 57 mm, PBT-ASA plastic, PMMA front; red laser 660 nm, laser class 1
• Environment: IP67; -10...+50 °C; ambient light up to 15 klx
• Connection: M12 5-pin connector on a 300 mm cable

A measuring frequency of 2000 Hz and a response time of 1 ms allow measurement on moving parts. Exposure time adjusts automatically, so the reading stays stable when the material colour or surface changes. The IO-Link process data follow the Smart Sensor Profile and carry, besides the measured value, two switching channels and quality and alarm bits.

Vibration resistance tested to IEC 60068-2-6, shock resistance to IEC 60068-2-27.
