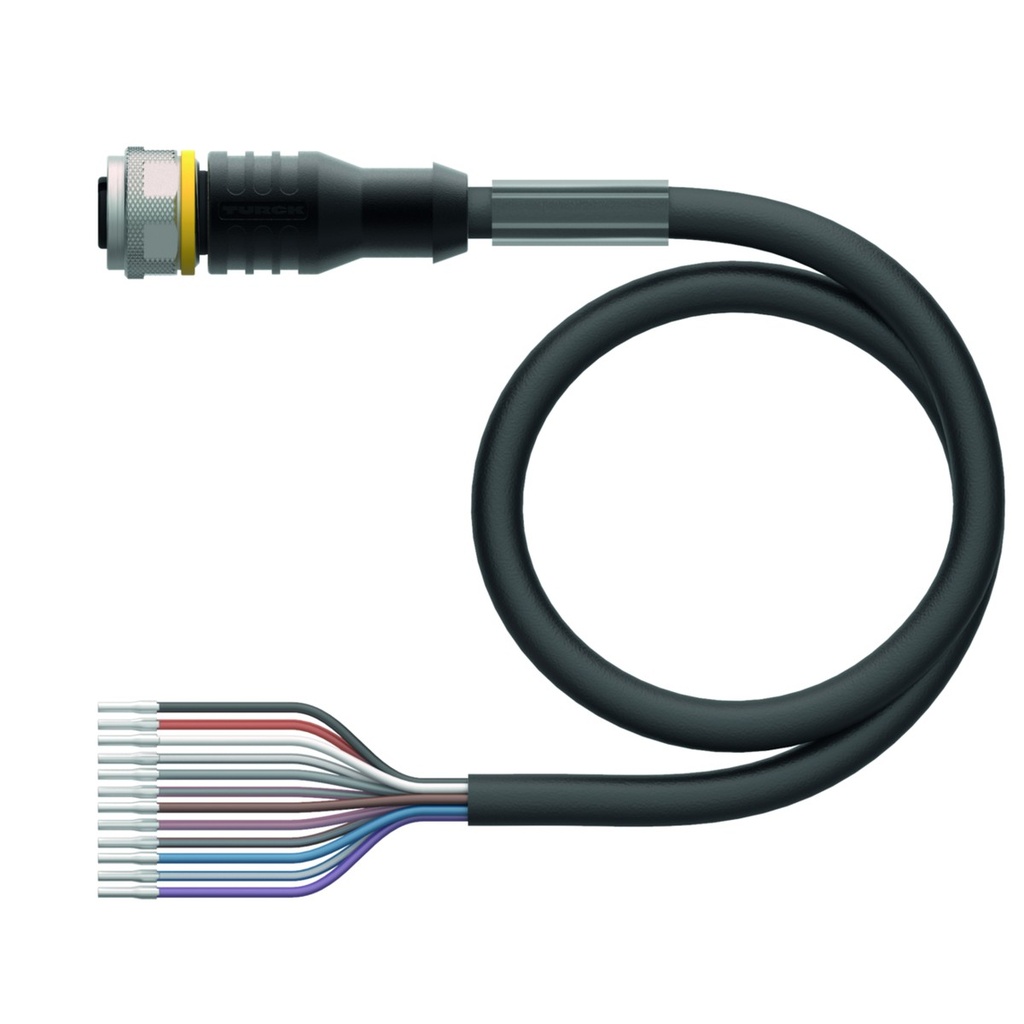

Connection cable RKC12T-20/TXL, M12, female, straight, 12-pin, 20m PUR

RKC12T-20/TXL is a TURCK connection cable with a straight M12 female connector (12-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M12 x 1, female, straight, A-coded, 12-pin, gold-plated brass (CuZn) contacts
• Cable: 20 m, PUR, black, Ø 5.4 mm, 12 x 0.14 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG, GY/PK, WH/BU, WH/GY, GY/BN
• Ratings: 1.5 A, 30 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.
