Connection cable PKG 3M-2-PSG 3M, M8, female/male, straight, 3-pin, 2m PVC

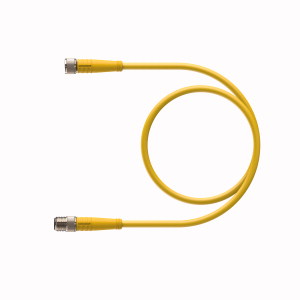

PKG 3M-2-PSG 3M is a TURCK M8 connection cable with a straight female connector on one end and a straight male connector on the other, 3-pin, with a yellow PVC jacket and yellow TPU connector bodies.

• Connectors: M8 x 1 female (3-pin) and M8 x 1 male (3-pin), both straight, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Cable: 2 m, PVC, yellow, Ø 4.39 mm, 3 x 24 AWG (approx. 0.25 mm²), tinned copper conductors, core colours BN, BU, BK
• Ratings: 4 A, 125 V AC/DC
• Housing: TPU, nickel-plated brass coupling nut, FKM/FPM O-ring
• Environment: female IP67, male IP68, NEMA 1, 3, 4, 6P; -40...+105°C fixed, 5...+105°C mobile

Rated for C-track use: 10 million bending cycles at a bending radius of 20 x Ø (20 °C, 50 % RH, up to 0.5 cycles per second); cold flexibility down to -40°C.
