Power supply: 11...30 VDC Range 0...100% LEL (0...5 %vol) CH4 Resolution 0,1 %LEL (50 ppm) CH4 Default alarm set-points 20 / 50 %LEL 2 × 4-20 mA / 0-10 V, RS485

Receiver SMR3215TBJ

TX107-00VPST is a 7" touch display from the TURCK TX100 series with TX VisuPro runtime, a plastic housing and a resistive touchscreen behind a plastic front film. It works as an operator panel only and has no built-in PLC.

• Display: 7" TFT, 800 x 480 (WVGA), 16:9, 64K colours, 200 cd/m², resistive, dimmable
• Communication: 1 x RJ45 Ethernet 10/100 Mbit, 1 x RS232/RS485/RS422, 1 x USB host
• Software: TX VisuPro runtime; ARM Cortex A8, 1 GHz, 512 MB RAM, 4 GB Flash
• Supply: 24 VDC (10...32 VDC), max. 0.3 A
• Housing: plastic, front 187 x 147 x 34 mm, cut-out 176 x 136 mm, mounting depth 29+5 mm
• Environment: IP66 front, IP20 rear, NEMA 2/4X; 0...+50 °C, 5...85 % RH non-condensing

Built into a cabinet door or control desk. Mounting brackets and the power connector come in the TX100 mounting kit, available as an accessory. There are no expansion slots.

Approvals: Haz. Loc. Class I, Division 2, Groups A, B, C and D.

Sn = 3 mm, M8×1 metal thread (nickel-plated brass), flush, short barrel, with cable connection (3 m), 10–30V DC, PNP NO (operable as 2-wire PNP/NPN NO), IP67

RKSV8T-25/TEG1023 is a TURCK shielded connection cable with a straight M12 female connector (8-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, straight, A-coded, 8-pin, gold-plated brass (CuZn) contacts
• Cable: 25 m, grey (RAL 7035), Ø 6.4 mm, 8 x 0.25 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG
• Shield: aluminium foil and tinned copper wire
• Ratings: 2 A, 30 V, more than 100 mating cycles
• Housing: TPU, grey, stainless steel (V4A) coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -40...+80°C mobile

The cable jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS.

Approval: cULus.

WKC4.4T-30/TEL is a TURCK connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 30 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

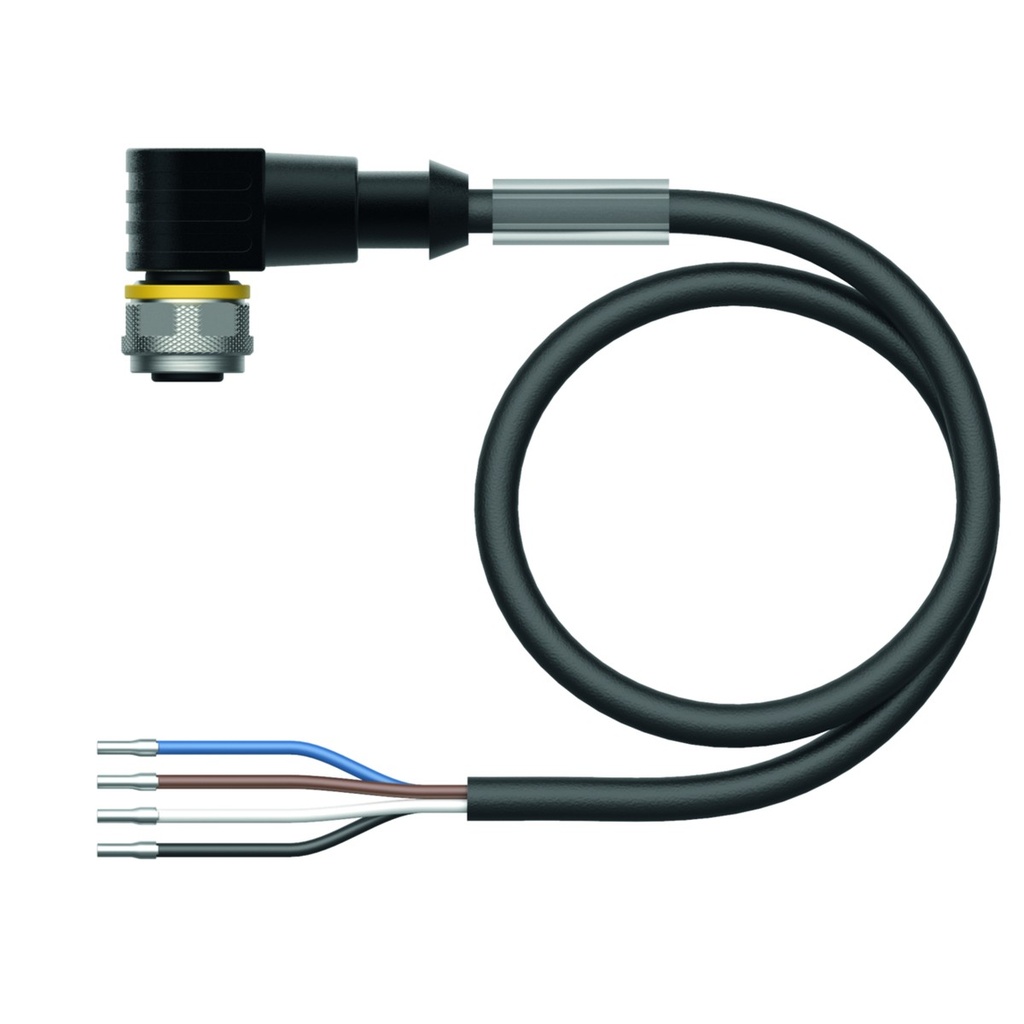

WKC4.4T-25/TXL is a TURCK connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 25 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

TC42HLRRVJ is an Ascon Tecnologic TC42 timer, counter and power limiter in a 48 x 48 mm (1/16 DIN) case with a white and orange dual display. The CNT (count enable) and RST (reset) inputs take volt-free contacts or NPN/PNP signals. This version is set up from the keyboard: it has no NFC programming, internal buzzer or battery.

• Inputs: 2 digital inputs (CNT, RST) for volt-free contacts or NPN/PNP logic
• Outputs: OUT1 and OUT2 relay SPDT 8 A resistive, 1/2 HP 250 V, 100 000 operations
• Timer: 4 scales - 9999 h, 99 h 59 min, 99 min 59 s, 99.99 s; accuracy ±0.1% fs
• Counter: up to 9999, counting frequency up to 200 Hz
• Supply: 100...240 Vac/Vdc ±10%, approx. 3 VA
• Case: 48 x 48 mm, depth 62.3 mm, panel cut-out 45 x 45 mm, screw terminals 0.2...2.5 mm²; IP65 front with gasket, 0...50 °C

Conforms to low voltage directive 2014/35/EU (EN 60730-1, EN 60730-2-7, EN 61812-1, UL 508) and EMC directive 2014/30/EU (EN 55011 class B).

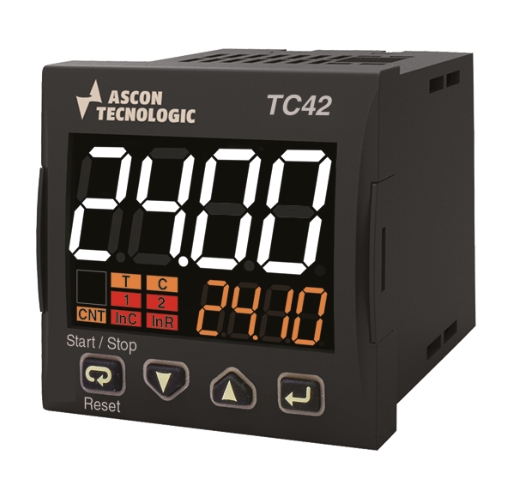

TC42LLRRVJ is an Ascon Tecnologic TC42 timer, counter and power limiter in a 48 x 48 mm (1/16 DIN) case with a white and orange dual display. The CNT (count enable) and RST (reset) inputs take volt-free contacts or NPN/PNP signals. This version is set up from the keyboard: it has no NFC programming, internal buzzer or battery.

• Inputs: 2 digital inputs (CNT, RST) for volt-free contacts or NPN/PNP logic
• Outputs: OUT1 and OUT2 relay SPDT 8 A resistive, 1/2 HP 250 V, 100 000 operations
• Timer: 4 scales - 9999 h, 99 h 59 min, 99 min 59 s, 99.99 s; accuracy ±0.1% fs
• Counter: up to 9999, counting frequency up to 200 Hz
• Supply: 24 Vac/Vdc ±10%, approx. 3 VA
• Case: 48 x 48 mm, depth 62.3 mm, panel cut-out 45 x 45 mm, screw terminals 0.2...2.5 mm²; IP65 front with gasket, 0...50 °C

Conforms to low voltage directive 2014/35/EU (EN 60730-1, EN 60730-2-7, EN 61812-1, UL 508) and EMC directive 2014/30/EU (EN 55011 class B).

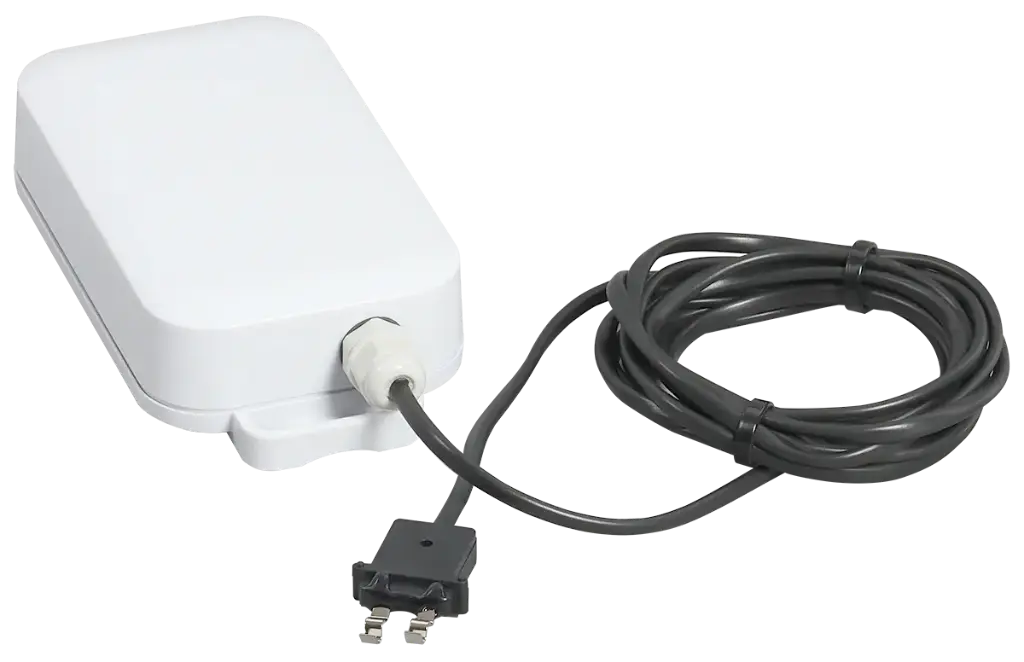

XX4CHXX-5905309602250 Efento HC5 NB-IoT Leakage detector/customer Resistance defined, IP67 sensor with U.FL antenna, 4 channel

The secure, connected mailbox that lets you receive and return all your parcels and letters, even when you're not available.

The automatic parcel locker dedicated to receiving even the largest everyday parcels for private or professional customers.

For T-groove cylinders

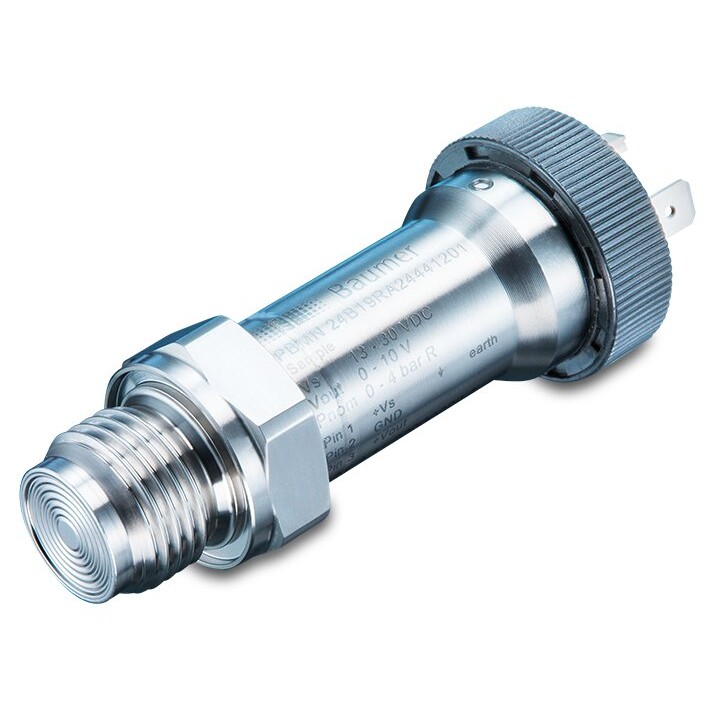

PBMN-24B22RA14471212000 is a Baumer PBMN series relative pressure sensor with a flush membrane, a 0...10 bar measuring range and a 4...20 mA two-wire output. The cooling neck allows permanent operation at process temperatures up to 200 °C.

• Accuracy: max. measuring error ±0.25 % FSR, including zero-point and span error, non-linearity and hysteresis (EN 61298-2); long-term stability ≤ 0.1 % FSR per year
• Measuring range: 0...10 bar, relative pressure; temperature coefficient ≤ 0.03 % FSR/10 K (zero point and span), compensated range -40...+85 °C
• Output: 4...20 mA, 2-wire, response time ≤ 5 ms; zero point and span adjustable with FlexProgrammer 9701
• Supply: 8...30 V DC
• Protection: short-circuit protected
• Housing: AISI 316L (1.4404); process connection G 1/2 A DIN EN ISO 1179-2 (3852-E) with cooling neck, AISI 316L (1.4404); membrane AISI 316L (1.4435), Ra ≤ 0.4 µm; NBR gasket; NSF H1 oil filling
• Environment: IP65; ambient temperature -40...+85 °C; process temperature -40...+200 °C
• Connection: DIN EN 175301-803 A (DIN 43650 A) connector, 4-pin

Suited to pressure measurement in high-temperature processes, including permanent SIP/CIP cycles up to 200 °C. The oil filling is NSF H1 listed (FDA approved), so it can be used on food production equipment.

EMC to EN 61000-6-3. Shock to EN 60068-2-27 (50 g / 11 ms, 100 g / 6 ms), vibration to EN 60068-2-6 (1.5 mm p-p 10...58 Hz, 10 g 58 Hz...2 kHz).

Duct mount CO2 concentration t-line WebSensor.

Transmitter with built-in concentration CO2, temperature, relative humidity sensor for duct mount.

A multiple point CO2 and temperature adjustment procedure leads to excellent CO2 measurement accuracy over the entire temperature working range; this is a must for process control and outdoor applications. The dual wavelength NDIR CO2 sensing procedure compensates automatically for ageing effects. The CO2 module is highly resistant to pollution and offers maintenance free operation and outstanding long term stability.

Green LED shines - CO2 concentration 0 to 1000 ppm

Yellow LED shines - CO2 concentration 1001 to 1200 ppm

Red LED shines - CO2 concentration 1201 ppm and more

Extended measuring range available for an additional charge

• Measuring range: 0 to 10 000 ppm
• Accuracy: 100 ppm + 5% of the measured value at 25 °C and 1013 hPa

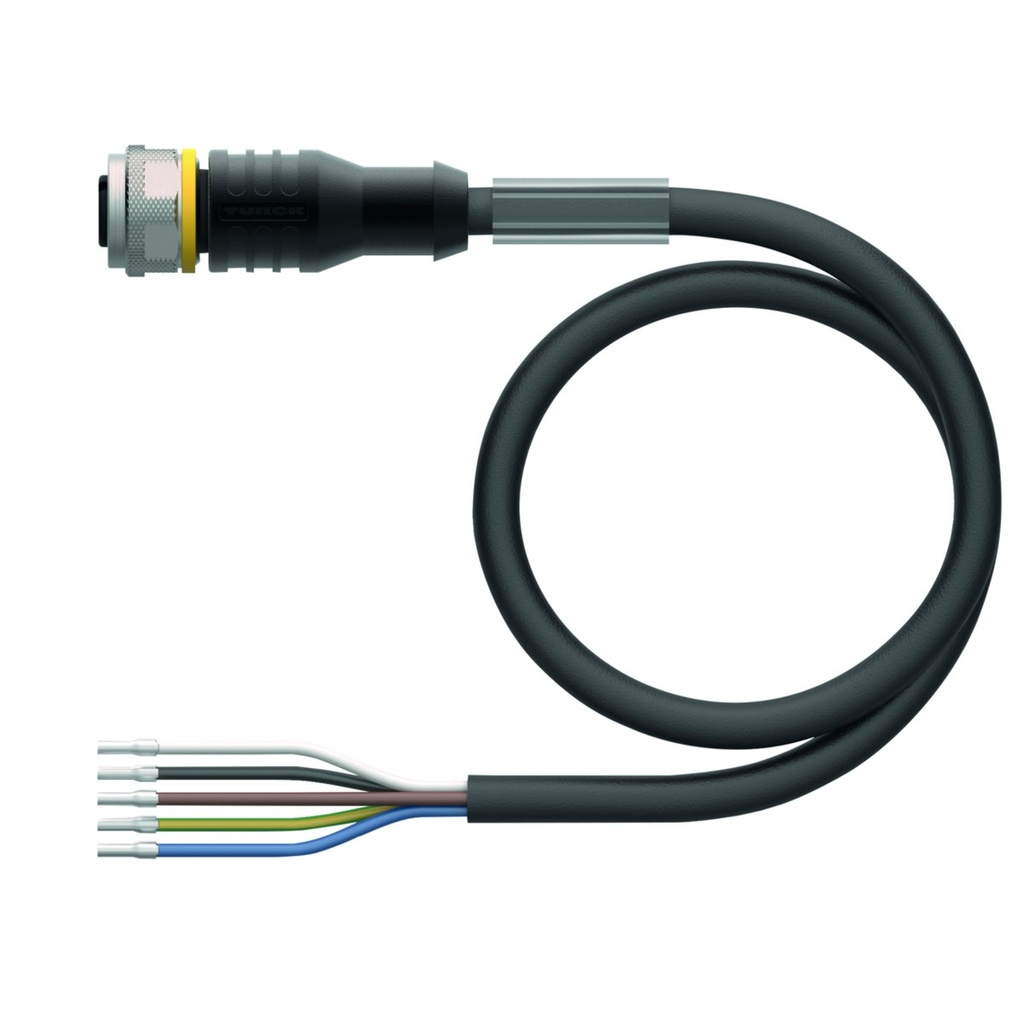

RKC5T-10/TXL is a TURCK connection cable with a straight M12 female connector (4-pin + PE) on one end and open cores on the other. Pin 5 is the protective earth (PE). The PUR jacket is rated for moving installation, including drag chains.

• Connector: M12 x 1, female, straight, A-coded, 4-pin + PE, gold-plated brass (CuZn) contacts
• Cable: 10 m, PUR, black, Ø 4.8 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GNYE
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

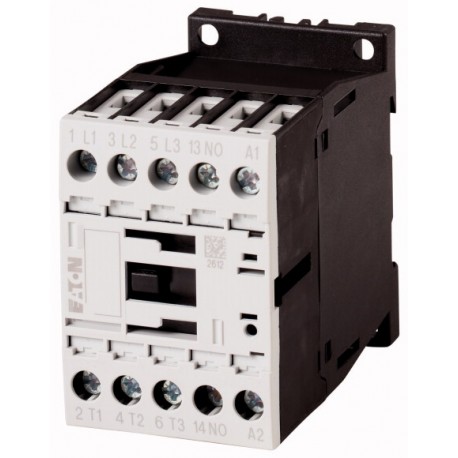

Kontaktors DILM15-01-230AC-E EATON Piegāde 1 nedēļa

Kontaktors DILEM-10 (230VAC) (XTMC6A10) EATON Piegāde 1 nedēļa

Motora aizsardzība PKZM0-6.3 Eaton Piegāde 1 nedēļa

Motora aizsardzība PKZM0-1.6 Eaton Piegāde 1 nedēļa
