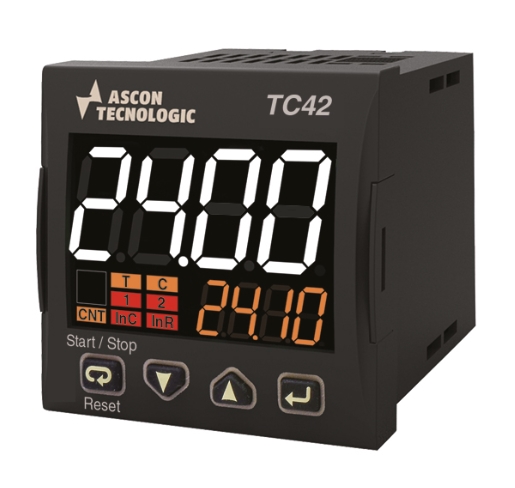

Timer/counter TC42HLRRVJ, contact/NPN/PNP inputs, 2 relay outputs SPDT, 100-240VAC/VDC

TC42HLRRVJ is an Ascon Tecnologic TC42 timer, counter and power limiter in a 48 x 48 mm (1/16 DIN) case with a white and orange dual display. The CNT (count enable) and RST (reset) inputs take volt-free contacts or NPN/PNP signals. This version is set up from the keyboard: it has no NFC programming, internal buzzer or battery.

• Inputs: 2 digital inputs (CNT, RST) for volt-free contacts or NPN/PNP logic
• Outputs: OUT1 and OUT2 relay SPDT 8 A resistive, 1/2 HP 250 V, 100 000 operations
• Timer: 4 scales - 9999 h, 99 h 59 min, 99 min 59 s, 99.99 s; accuracy ±0.1% fs
• Counter: up to 9999, counting frequency up to 200 Hz
• Supply: 100...240 Vac/Vdc ±10%, approx. 3 VA
• Case: 48 x 48 mm, depth 62.3 mm, panel cut-out 45 x 45 mm, screw terminals 0.2...2.5 mm²; IP65 front with gasket, 0...50 °C

Conforms to low voltage directive 2014/35/EU (EN 60730-1, EN 60730-2-7, EN 61812-1, UL 508) and EMC directive 2014/30/EU (EN 55011 class B).
