WKC4T-P7X2-5-PSG3M/TXL is a TURCK adapter cable with an angled M12 female connector on one end and a straight M8 male connector on the other, both 3-pin. The connector has two built-in LED indicators: green shows the supply, yellow the PNP signal on pin 4.

• Connectors: M12 x 1 female, angled, A-coded / M8 x 1 male, straight; both 3-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 4.1 mm, 3 x 0.34 mm², core colours BN, BU, BK
• Ratings: 4 A, 30 V DC, more than 100 mating cycles
• Housing: M12 translucent TPU, M8 black TPU; nickel-plated brass coupling nuts, FPM/FKM seal; M8 tightening torque 0.5...0.6 Nm
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

0051810 Lielais mitruma absorbētājs(22 grami)

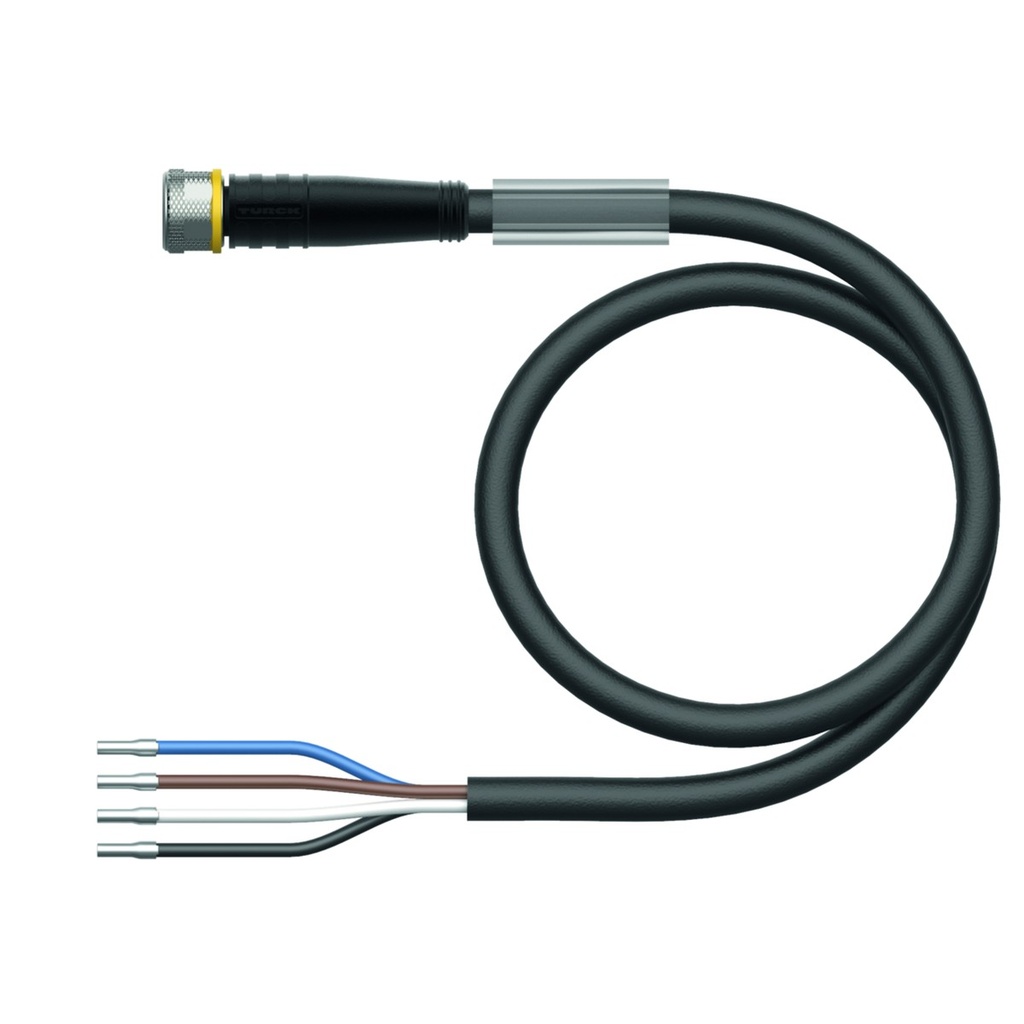

PKG4M-2/TXL is a TURCK connection cable with a straight M8 female connector (4-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M8 x 1, female, straight, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

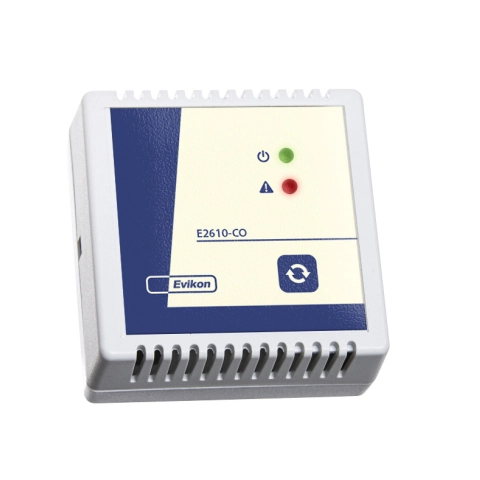

E2610-CO Two SPDT relays 0...200 ppm CO vai 0...1000 ppm CO 24 VDC/AC Default alarm set-points 25 ppm / 125 ppm CO 125 ppm / 250 ppm CO

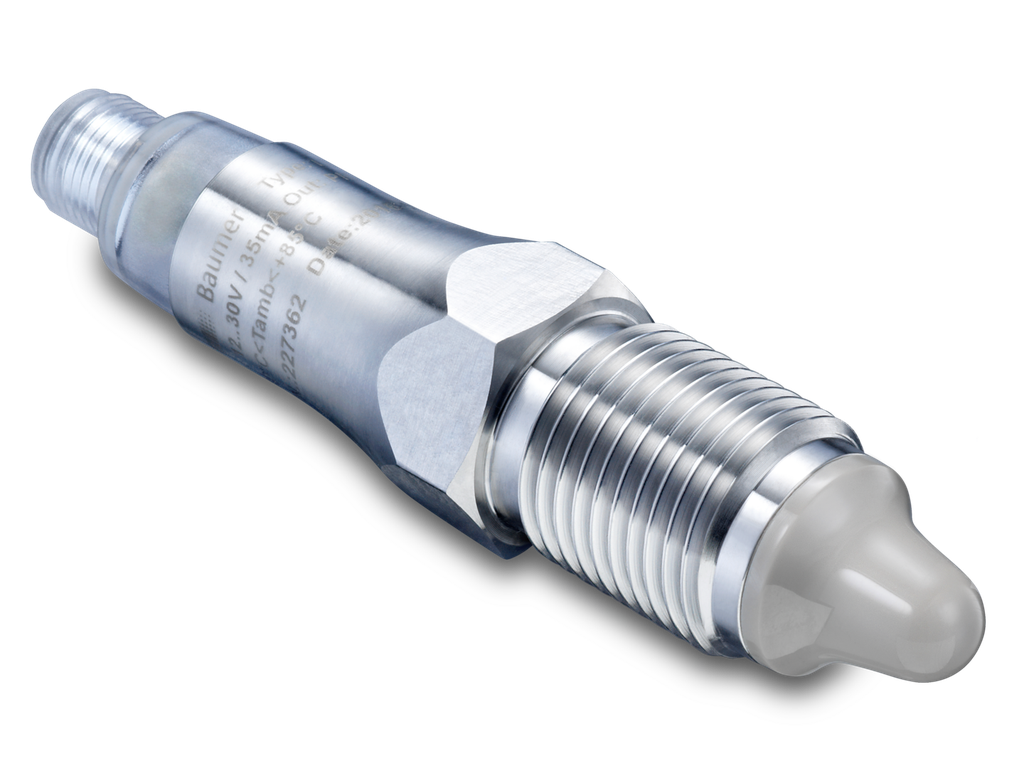

LBFS-2.03421.0 is a capacitive point level switch from the Baumer CleverLevel series with a G 1/2" A hygienic process connection and a stainless steel M12 connector without LED indicators. The metal connector suits high-pressure washdown and positions where polycarbonate parts are not accepted.

• Switching: point level detection, Single Point, Two Point and Window trigger modes, hysteresis < ±1 mm, repeatability < ±1 mm
• Output: two PNP outputs (SW1, SW2), each separately High-Active or Low-Active, 50 mA, step response T90 0.1 s, adjustable damping 0...60 s
• Supply: 8.5...35 V DC, current consumption < 8 mA (typ.)
• Housing: stainless steel; wetted parts PEEK Natura and AISI 316L (1.4404), Ra ≤ 0.8 µm
• Environment: process temperature -40...115 °C (135 °C temporarily), process pressure -1...10 bar, IP67 and IP69K with a matching mating connector
• Connection: M12-A, 4-pin, stainless steel connector, without status LED indicators

The switch is intended for food, beverage and pharmaceutical plant, where the Ra ≤ 0.8 µm surface finish and the hygienic connection allow CIP cleaning. Without LED indicators the switching state can only be read in the control system, so setting it up requires access to the input signal. The hygienic connection limits process pressure to 10 bar.

Complies with EN 1935/2004, EN 10/2011 and EN 2023/2006, FDA, 3-A (74-07) and EHEDG EL Class I. The PEEK material complies with USP Class VI. cULus listed, E365692. Marine approvals: DNV, Lloyd's Register and CCS.

LBFS-01G21.0 is a capacitive point level switch from the Baumer CleverLevel series with a G 1/2" A ISO 228-1 process connection and a cooling neck that separates the electronics from the hot medium. Process temperature is therefore permitted up to 150 °C as long as ambient temperature stays below 50 °C.

• Switching: point level detection from the dielectric constant of the medium (DC > 1.5), hysteresis ±1 mm, repeatability ±1 mm
• Output: PNP, NO or NC selectable, 20 mA, response time 0.1 s, adjustable damping 0...10 s
• Supply: 12...30 V DC, current consumption 25 mA (typ.), 50 mA (max.)
• Housing: stainless steel; wetted parts PEEK Natura and AISI 316L (1.4404), Ra ≤ 0.8 µm
• Environment: process temperature -40...150 °C (continuous at ambient below 50 °C), process pressure -1...100 bar, IP67 and IP69K with appropriate cable
• Connection: M12-A, 4-pin, polycarbonate connector with a blue status LED indicator

The switch is intended for hot processes - steam and hot water systems, oil and fuel tanks, CIP solution tanks - where medium temperature exceeds the limits of the standard build. The switching point and the damping are set with Baumer FlexProgram software. Mounting position is free - top, bottom or side.

WHG approval for overfill and leakage control, CCS marine approval. The PEEK material complies with USP Class VI. EMC compliance to EN 61326 (installed in a closed metal tank).

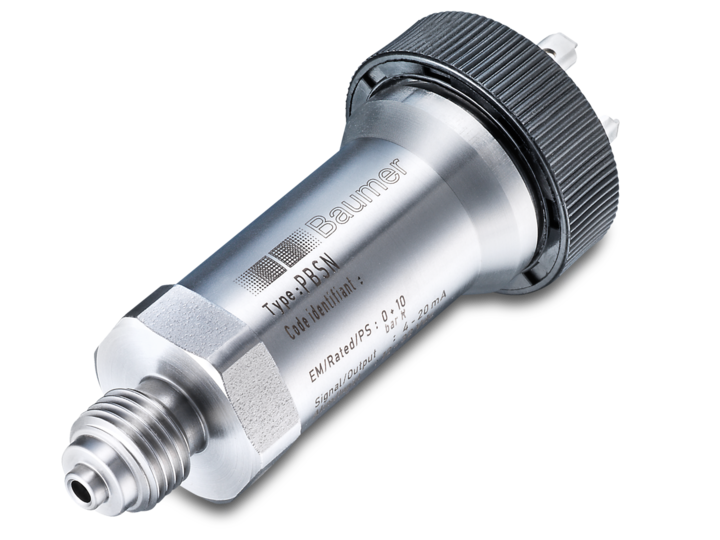

PBSN-1.3.B16.A.A1.44.03.2.1.S01 is a Baumer PBSN series absolute pressure sensor with a 0...1.6 bar measuring range and a 4...20 mA two-wire output. Pressure is sensed by a ceramic measuring cell (96 % Al2O3) that is resistant to abrasive media.

• Accuracy: max. measuring error ±0.5 % FSR, including zero-point and span error, non-linearity and hysteresis (EN 61298-2); long-term stability ≤ 0.2 % FSR per year
• Measuring range: 0...1.6 bar, absolute pressure; temperature coefficient ≤ 0.08 % FSR/10 K (zero point and span), compensated range -20...+60 °C
• Output: 4...20 mA, 2-wire, rise time (10...90 %) ≤ 5 ms
• Supply: 8...30 V DC
• Protection: short-circuit protected
• Housing: AISI 304 (1.4301); process connection G 1/2 B EN 837-1, AISI 316L (1.4404); NBR gasket
• Environment: IP65; ambient temperature -20...+85 °C; process temperature -30...+100 °C
• Connection: DIN EN 175301-803 A (DIN 43650 A) connector, 4-pin

Absolute pressure is measured against vacuum, so the reading does not follow changes in atmospheric pressure. The NBR gasket sets the lower process temperature limit at -30 °C.

EMC to EN 61000-6-2, EN 61000-6-3 and EN 61326-1. Shock and vibration resistance to EN 61373 (category 1, class B).

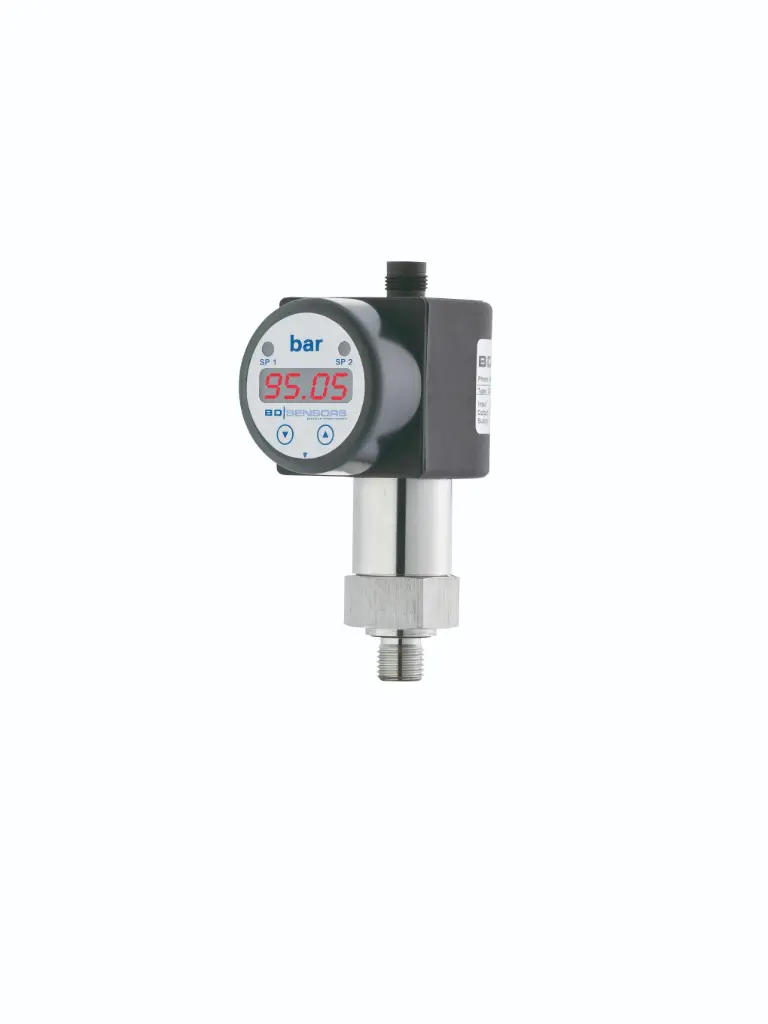

 DS 200 is an electronic pressure switch with a stainless steel sensor, combining an intelligent switching function with an integrated digital display. It is designed for universal use in a wide range of industrial applications. As standard, DS 200 features a PNP contact and a rotatable 4-digit LED display for easy reading in any mounting position. Optional variants – such as an intrinsically safe version and analogue output – make it a flexible solution for process monitoring wherever reliable pressure control and local indication are required.

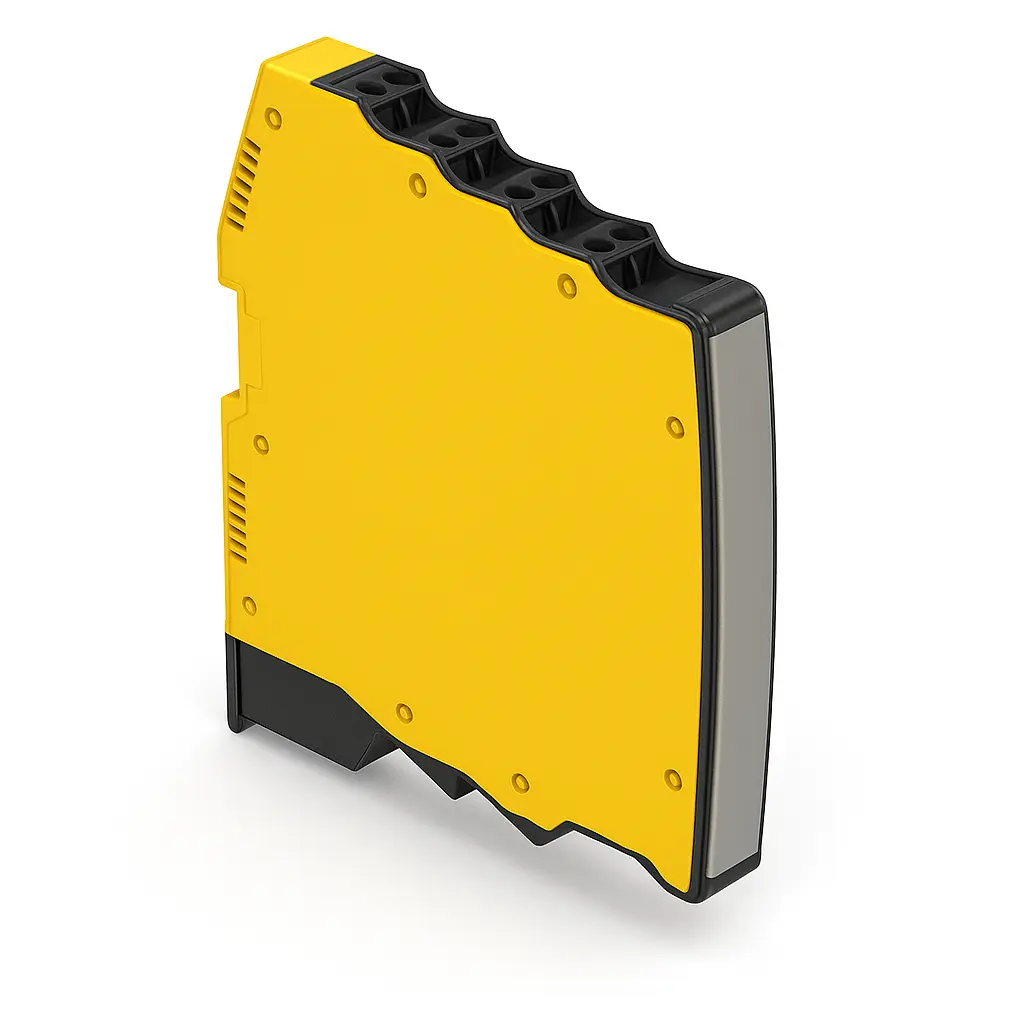

IM12-TI01-2RTDR-2I-C0/24VDC is a 2-channel TURCK temperature measuring amplifier for resistance thermometers. It converts two RTD or resistance signals to galvanically isolated 0/4...20 mA outputs and also outputs the difference of the two inputs.

• Inputs: 2 x RTD (Pt50, Pt100, Pt500, Pt1000, Ni50, Ni100, Ni500 and others) or 0...5 kΩ, 2-, 3- or 4-wire
• Outputs: 2 x 0/4...20 mA, source or sink (15...28 V); inputs assignable as E1, E2, E1-E2 or E2-E1
• Configuration: PC via FDT and IODD
• Supply: 10...30 V DC, ≤2.7 W
• Housing: polycarbonate/ABS, 120 x 12.5 x 117 mm, DIN rail (NS35), removable screw terminals
• Environment: IP20, -25...+70 °C

Used to bring Pt100 and similar sensors from a hazardous area into a control system as a standard current signal. Wire break and short circuit are indicated by a flashing red LED according to NE44, and the fault current can be set to < 3.5 mA or > 21.5 mA. A PC connection is needed for parameterisation.

Approvals: ATEX, cULus; for use in ATEX Zone 2. SIL 2.

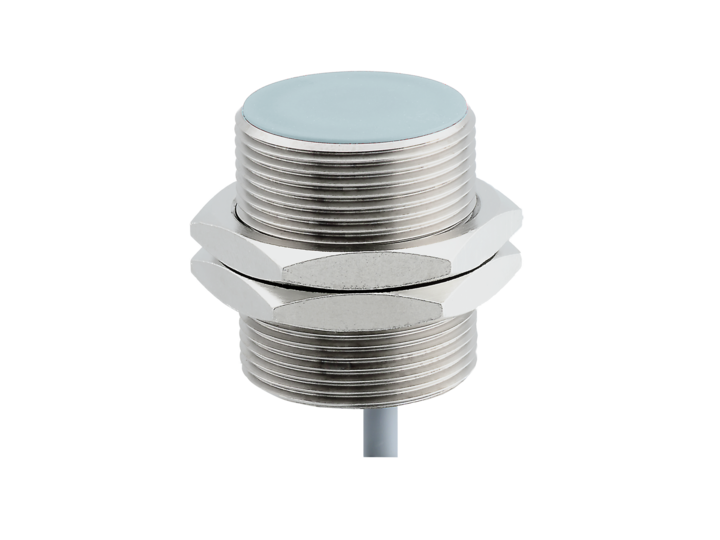

Sn = 18 mm, M30×1.5 metal thread (nickel-plated brass), flush, with 2 m cable connection, 6–36V DC, PNP NO/NC (changeover), GammaProx enhanced sensing distance, IP67

 DS 200 is an electronic pressure switch with a stainless steel sensor, combining an intelligent switching function with an integrated digital display. It is designed for universal use in a wide range of industrial applications. As standard, DS 200 features a PNP contact and a rotatable 4-digit LED display for easy reading in any mounting position. Optional variants – such as an intrinsically safe version and analogue output – make it a flexible solution for process monitoring wherever reliable pressure control and local indication are required.

DS 200 is an electronic pressure switch with a stainless steel sensor, combining an intelligent switching function with an integrated digital display. It is designed for universal use in a wide range of industrial applications. As standard, DS 200 features a PNP contact and a rotatable 4-digit LED display for easy reading in any mounting position. Optional variants – such as an intrinsically safe version and analogue output – make it a flexible solution for process monitoring wherever reliable pressure control and local indication are required.

Ambient temperature, relative humidity t-line Web sensor with Power over Ethernet feature. Remote alarm.

PoE Web Sensor with built-in relative humidity and temperature sensors. Can serve as weather sensor.

High precision capacitive polymer sensor ensures excellent long term calibration stability and ultimate accuracy. Dual line LCD is an advantage. Power over Ethernet feature according IEEE 802.3af is supported. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio and specific enthalpy.

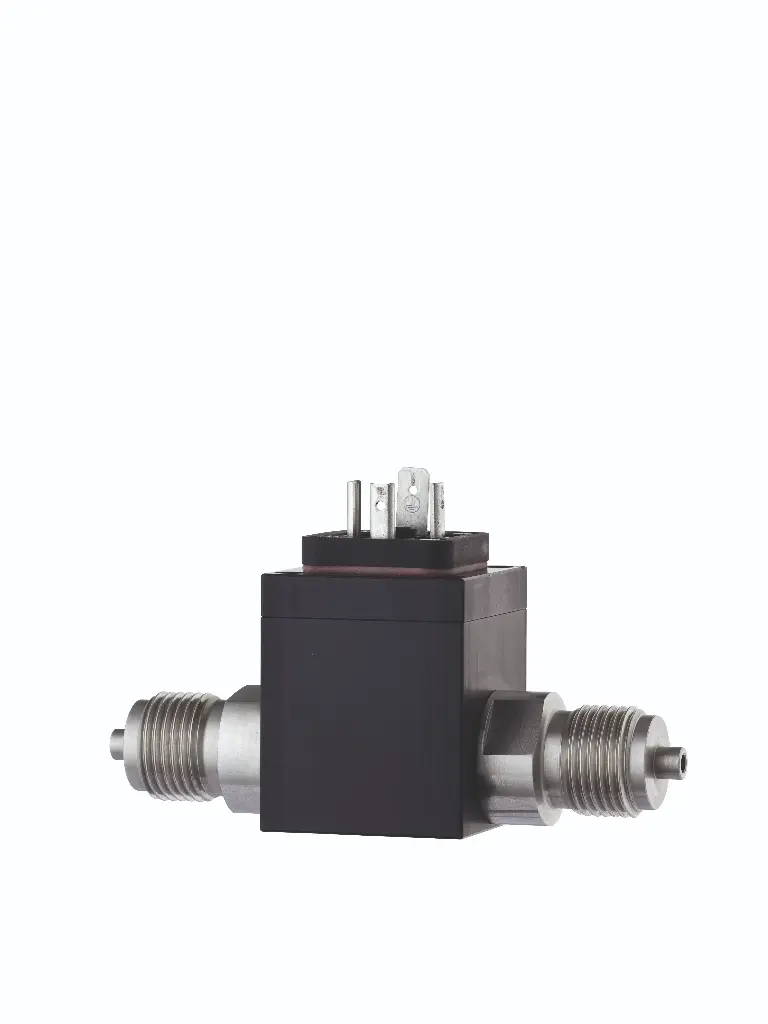

The BD Sensors DMD331 is a compact differential pressure transmitter designed for precise monitoring of gases and non-aggressive liquids. It delivers stable, high-accuracy measurements even at low pressure ranges, making it ideal for HVAC, filtration, cleanroom, and process control applications. Reliable, robust, and easy to integrate.

The BD Sensors DMD331 is a compact differential pressure transmitter designed for precise monitoring of gases and non-aggressive liquids. It delivers stable, high-accuracy measurements even at low pressure ranges, making it ideal for HVAC, filtration, cleanroom, and process control applications. Reliable, robust, and easy to integrate.

Detection Range: Up to 30 mm

Sensor Output: Open / Closed

Battery Type: Lithium (BR1632)

Battery Life: Up to 15 Years
Replaceable: Yes

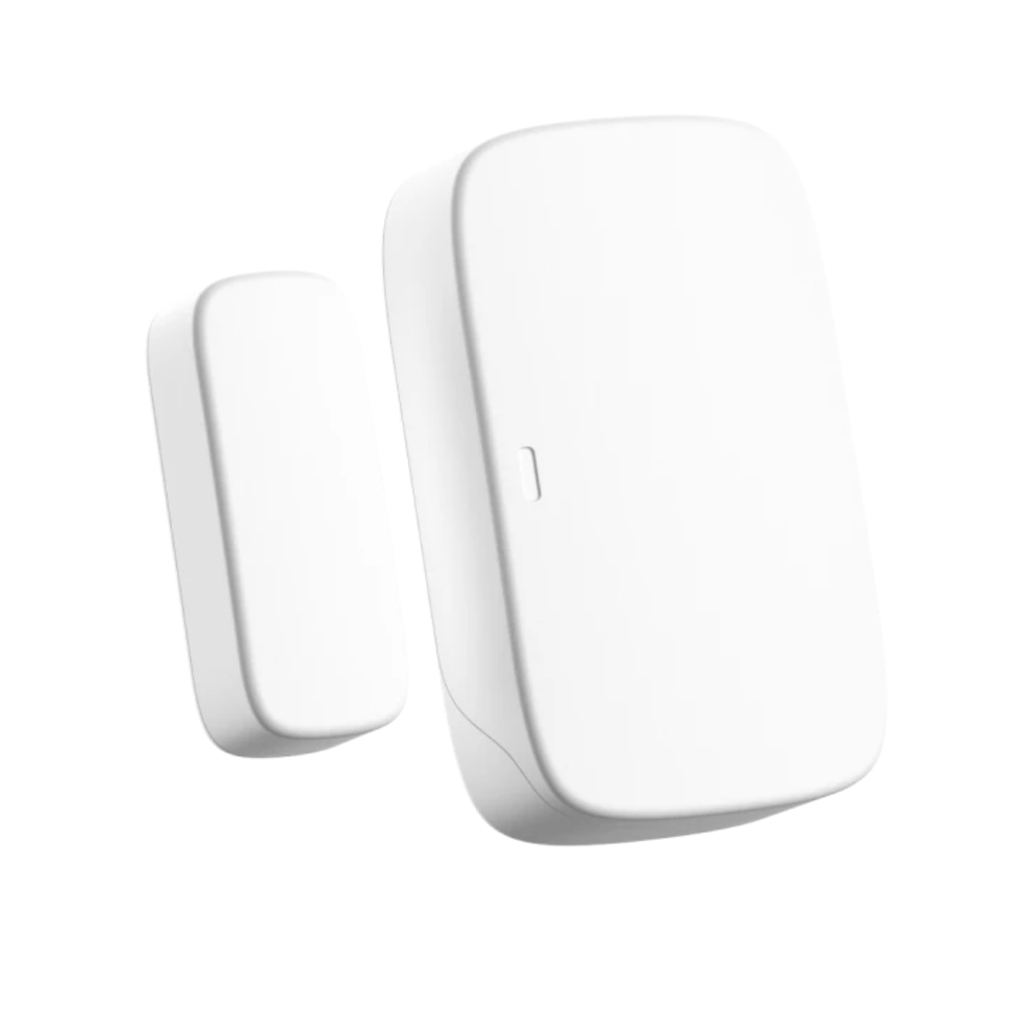

Sensor Output: Open / Closed

Detection Time: Instant

Battery Type: Lithium

Battery Life:Up to 15 Years

Sensor Output: Detected / Not-Detected

Detection Time: Instant

Battery Type: Lithium

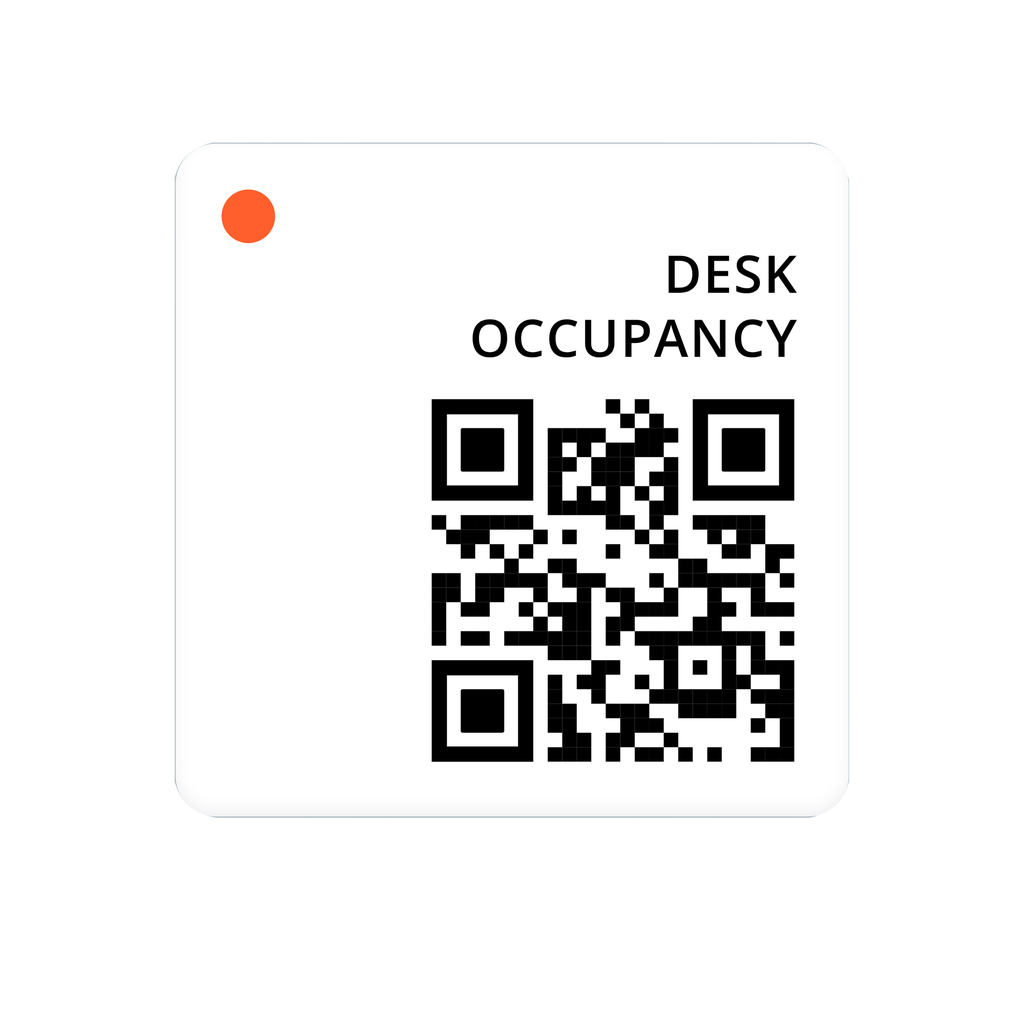

Sensor Output: Occupied / Not-Occupied

Detection Time: 10 Minutes

Battery Type: Lithium

Battery Life: Up to 9 Years

Līmeņa slēdzis RF8200 BW2E3A1YC4_X*****0**0_**0*00***0_**X000***A_00700mm Pos 01: Type [B] RF 8200 Pos 02: Certificate [W] ATEX II 1/2D Ex ia/tb Pos 03: Temperature extended shaft [2] with Pos 04: Electronic module [E] Standard: Relay SPDT / Solid State 12..250 V AC/ DC Pos 05: Process connection [3A] Thread G ¾" BSPP, EN ISO 228-1 Pos 07: Default position [1] Default position Pos 08: Probe length L (in mm) [Y] Rod, custom specified length Custom specified length L (in mm) 700 Pos 09: "Active shield" length [C] Extended shield (400 mm [15.75"] threaded, 380 mm [14.96"] flanged) Pos 10: Material of process connect [4] Stainless steel 1.4404, isolation parts ceramic Pos 11: Guarantee extension [X] to 6 years Pos.20: Local Certificates Pos 33: Cable entry [X] 2x screwed cable gland M20x1.5 Pos 40: Customer demands [A] UWT standard

Līmeņa slēdzis RF8200 BW2E3A1AA4_X*****0**0_**0*00***0_**X000** Special Design: Pos 09: Active Shield Length = 200mm *************************** Pos 01: Type [B] RF 8200 Pos 02: Certificate [W] ATEX II 1/2D Ex ia/tb Pos 03: Temperature extended shaft [2] with Pos 04: Electronic module [E] Standard: Relay SPDT / Solid State 12..250 V AC/ DC Pos 05: Process connection [3A] Thread G ¾" BSPP, EN ISO 228-1 Pos 07: Default position [1] Default position Pos 08: Probe length L (in mm) [A] Rod, 350 mm (13.78") Custom specified length L (in mm) 0 Pos 09: "Active shield" length************************Special Design) Pos 10: Material of process connect [4] Stainless steel 1.4404, isolation parts ceramic Pos 11: Guarantee extension [X] to 6 years Pos.20: Local Certificates Pos 33: Cable entry [X] 2x screwed cable gland M20x1.5 Pos 40: Customer demands [A] UWT standard

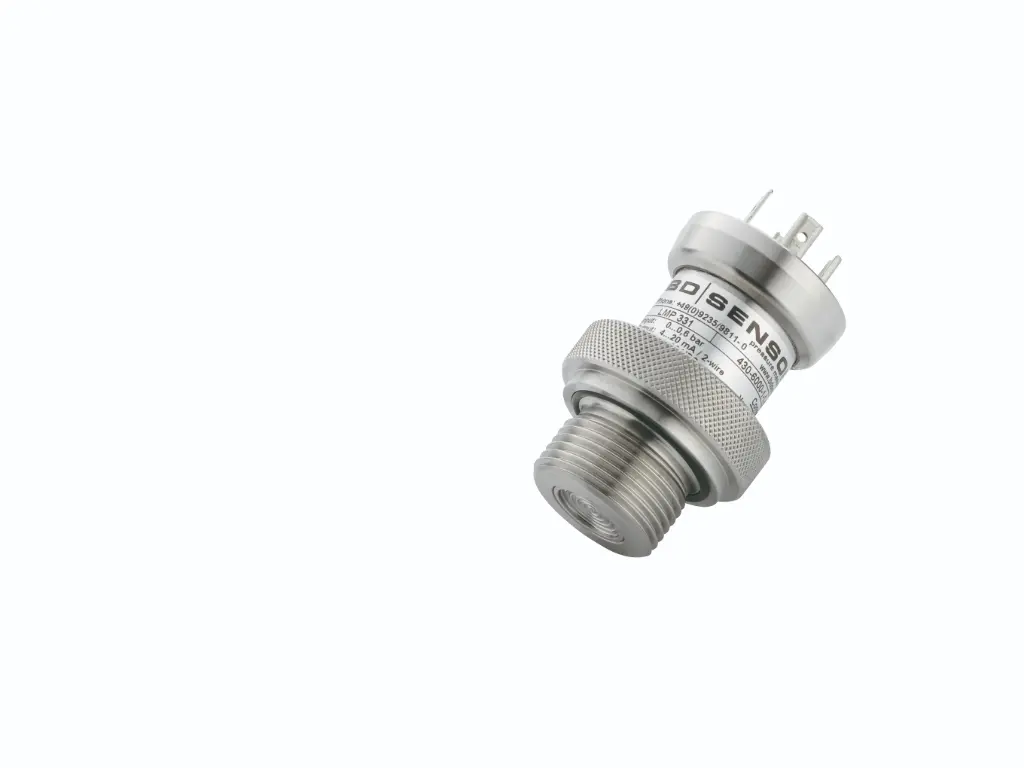

Level sensor LMP331 430-4001-1-1-1-1-E00-2-000

RKC4.4T-40/TXL is a TURCK connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 40 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

PKG4M-40/TXL is a TURCK connection cable with a straight M8 female connector (4-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M8 x 1, female, straight, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 40 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

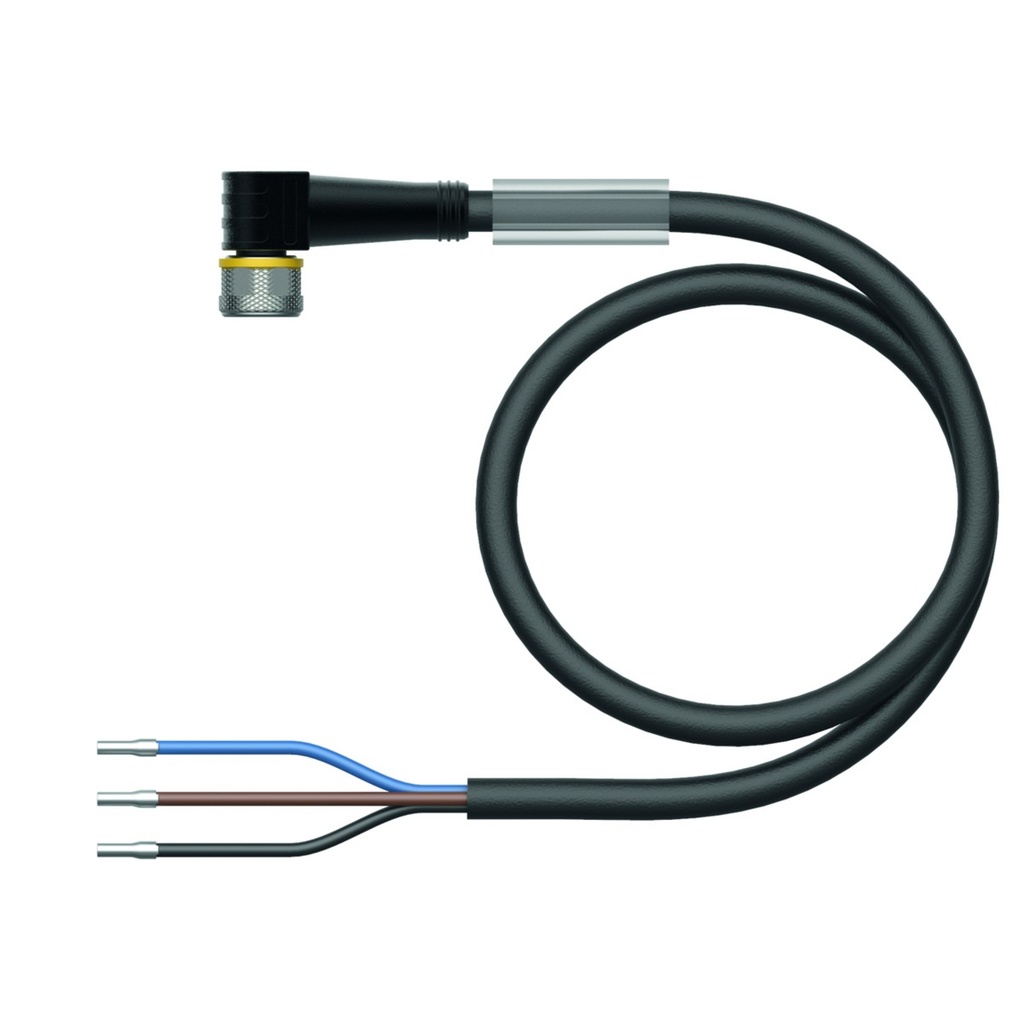

PKW3M-5/TXL is a TURCK connection cable with an angled M8 female connector (3-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M8 x 1, female, angled, 3-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 4.1 mm, 3 x 0.34 mm², core colours BN, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.
