• Range 0 ...+100 °C Operating temp. up to 80 °C
• Range 0...100 % RH Accuracy H.: ±3 % RH / 30…80 % RH
• Accuracy T.: ±0,8 K
• With analogue output 4 ... 20 mA

K50PTAMGRY3Q is a Banner K50 Pro series 50 mm touch button with an RGB indicator and a momentary output. Two inputs select green, yellow or red, and colors, animation, output logic and touch sensitivity can be changed with Pro Editor software.

• Colors (default): green 522 nm (16.5 lm), yellow 576 nm (23.8 lm), red 620 nm (8.3 lm); up to 14 colors via Pro Editor
• Output: bipolar, normally open, momentary, max. 150 mA; input response 40 ms, output 300 ms
• Supply: 12...30 V DC, 93 mA at 24 V
• Housing: polycarbonate base, dome and nut, M30x1.5 thread, Ø50 x 66 mm
• Environment: IP67, IP69K, -40...+50 °C
• Connection: integral 5-pin M12 male connector

Programming needs the Pro Converter Cable and Pro Editor; one wire can be reassigned from input to output. Works with bare hands or gloves.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).

OR18.GP-PV1T.7BO is a Baumer M18 diffuse photo sensor with background suppression, detecting objects at 20...200 mm and ignoring anything beyond the set distance. The switching distance is taught with qTeach instead of a potentiometer, so the setting is repeatable and cannot drift from vibration. A small PinPoint LED light spot allows detection of small parts.

• Sensing range: 20...200 mm, adjustable 45...200 mm; red PinPoint LED 630 nm
• Output: PNP complementary (NO and NC at the same time), max. 100 mA; response time < 0.49 ms
• Supply: 10...30 V DC, max. 45 mA
• Housing: M18 x 1 threaded, 65 mm long, nickel-plated brass, PA lens
• Environment: IP67; -25...+60 °C
• Connection: M12 4-pin connector

Used for presence detection on conveyors and in assembly stations where a machine frame or wall sits close behind the object. Both outputs are available on one connector (black and white wires), so one sensor gives the controller the light and dark operate signal. A green LED shows power, a yellow LED shows the output state.

The BL20-E-16DO-24VDC-0.5A-P is a TURCK BL20-E series economy module with 16 digital PNP outputs, each up to 0.5 A. Electronics and connection technology are combined in one housing, so no separate base module is needed.

• Outputs: 16 digital outputs, PNP switching, up to 0.5 A/channel
• Protection: short-circuit protection, output delay 0.3 ms
• Load: up to 100 Hz for resistive loads, up to 10 Hz for lamp loads
• Power: 24 VDC (18...30 VDC), field supply current ≈3 mA, module bus current ≤25 mA
• Connection: push-in terminals
• Environment: IP20, 0...+55°C

The module operates as part of a BL20-E station together with a BL20-E-GW gateway and other BL20-E modules, and is suited for driving relays, valve coils and signal lamps in a control cabinet.

Complies with cULus, FM and IECEx requirements.

T30R-1515-KIQ is a Banner T30R series 122 GHz FMCW radar sensor in an M30 housing with a 15 x 15° beam. It outputs the measured distance as 4-20 mA and has one configurable PNP/NPN discrete output that also carries IO-Link.

• Accuracy: linearity < ±20 mm below 500 mm, < ±4 mm above 500 mm (RCS 1 m² reference target); repeatability < 1 mm; temperature effect < ±10 mm
• Range: detection 0.15...15 m, measurement 0.2...15 m
• Outputs: analog 4-20 mA (white wire); discrete PNP/NPN or IO-Link push/pull (black wire), 50 mA; analog update 2 ms, discrete response 6 ms
• Supply: 10...30 V DC, < 100 mA at 24 V
• Housing: PBT, M30 x 1.5 thread, COP window
• Environment: IP67, -40...+65 °C
• Connection: integral M12 5-pin male

The rounded lens focuses the signal into a narrow 15° beam. Detection is unaffected by wind, fog, steam and temperature changes and resists rain and snow. Settings are made over IO-Link, with Banner Measurement Sensor Configuration Software or with the remote input wire.

Radio approval: US, Canada, Europe, UK, Australia, New Zealand, India, Singapore, Malaysia, Korea; ETSI EN 305 550-1 and -2. Vibration per MIL-STD-202F method 201A, shock per method 213B (75 g operating).

Q20NLPQ7 is a Banner Q20 series polarized retroreflective photo sensor with a visible red 645 nm beam and a 4 m range with a BRT-84 reflector. The polarizing filter lets it detect shiny objects that would reflect an unpolarized beam back to the sensor.

• Sensing range: 4 m with BRT-84 reflector
• Output: NPN, complementary Light Operate and Dark Operate outputs, 100 mA
• Response: 850 µs ON/OFF; repeatability 90 µs
• Supply: 10-30 V DC, < 18 mA
• Housing: ABS, PMMA lenses
• Environment: IP67, -20...+60 °C
• Connection: integral M8 4-pin male connector

A green LED indicator shows power; the amber one shows the output state and flashes at marginal excess gain. Sensitivity is set with a single-turn potentiometer.

Vibration tested to MIL-STD-202F, method 201A; shock to IEC 60947-5-2.

T18-2VPDL-Q8 is a Banner T18-2 series diffuse sensor with visible red light that detects objects by the light they reflect back. The right-angle 18 mm threaded housing has epoxy-encapsulated electronics and food-grade plastics, for wet and washdown areas. A single-turn potentiometer sets the sensitivity.

• Sensing range: 750 mm
• Output: complementary PNP (NO and NC), 100 mA total up to +55 °C; response 1.5 ms ON / 0.75 ms OFF
• Supply: 10-30 V DC (10-24 V DC above +55 °C), < 16 mA
• Housing: right-angle, 18 mm thread, PBT polyester, PMMA window
• Environment: IP67, IP68, IP69K, -40...+70 °C; ECOLAB chemical compatibility
• Connection: M12 male connector, 4-pin

Vibration per MIL-STD-202G method 201A, shock per method 213B (75 g operating).

SI-RFPT-HP5 is a Banner SI-RF non-contact RFID safety switch with high coding: it accepts only the last actuator taught in, and a new actuator can be taught up to 12 times. Two OSSD safety outputs and a PNP auxiliary output for door status are brought out on a 250 mm cable with an M12 5-pin connector.

• Sensing distance with SI-RF-A: Sao 10 mm, Sar 25 mm, Sn 13 mm, hysteresis 2 mm
• Outputs: 2 OSSD PNP NO, 100 mA, DC-13; auxiliary PNP output 10 mA
• Supply: 24 V DC +25/-20 %, ≤ 50 mA without load; switch-off delay max. 100 ms
• Housing: PA66 + PA6, red, 36 x 26 x 15 mm, two holes for M4 screws
• Connection: 250 mm black PUR cable, M12 5-pin connector, nickel-plated brass
• Environment: IP69, -25...+70 °C, 93 % RH at +40 °C non-condensing

To teach a new actuator, hold it in front of the switch, power the switch for at least 5 s, remove power, and power it again for at least 5 s. The SI-RF-A actuator is ordered separately.

PL e and Category 4 (EN ISO 13849-1), SIL CL 3 (EN 62061), PFHd 6 × 10-9 1/h. TÜV Nord, cCSAus.

SI-RF-A is the standard coded RFID actuator for Banner SI-RF safety switches. Its safety code is fixed and cannot be changed; the switch stores it during teach-in.

• Fits: SI-RF series safety switches
• Sensing distance with SI-RF: Sao 10 mm, Sar 25 mm, Sn 13 mm, hysteresis 2 mm
• Housing: thermoplastic, 36 x 26 x 15 mm
• Environment: IP69, -25...+70 °C

SGSA-MBK-10-4 is a set of four Banner clamp brackets for mounting SGS Safety Grid System emitters and receivers. Each bracket has a Ø 43 mm ring clamp closed with an M5 stud and a base with slotted holes.

• Fits: SGS Safety Grid System
• Clamp: Ø 43 mm ring, FH-M5x18 stud
• Dimensions: base 56 x 41 mm, height 89 mm, clamp centre 53 mm above the base
• Mounting: 6.8 mm slotted holes, 36 mm spacing
• Included: 4 brackets

QS18VP6R W/30 is the receiver of a Banner QS18 series opposed-mode photo sensor pair. It switches when an object breaks the beam from a separate QS186E emitter up to 20 m away.

• Sensing range: 20 m with a QS186E emitter, effective beam 13 mm
• Output: complementary PNP, Light Operate and Dark Operate, 100 mA each
• Response: 750 µs ON, 375 µs OFF; repeatability 100 µs
• Supply: 10-30 V DC, < 25 mA
• Housing: ABS, 18 mm threaded nose or side mounting, 3 mm hardware included
• Environment: IP67, -20...+70 °C
• Connection: 9 m PVC cable, 4 wires

Works with a QS186E emitter, ordered separately. A green LED indicator shows power; the amber one shows light sensed and flashes at marginal excess gain.

Vibration tested to MIL-STD-202F, method 201A; shock to IEC 60947-5-2.

QS186E W/30 is the emitter of a Banner QS18 series opposed-mode photo sensor pair. It sends an infrared 940 nm beam to a separate QS18 receiver up to 20 m away; an object is detected when it breaks the beam.

• Sensing range: 20 m with a QS18 receiver, effective beam 13 mm
• Output: none (emitter)
• Supply: 10-30 V DC, < 25 mA
• Housing: ABS, 18 mm threaded nose or side mounting, 3 mm hardware included
• Environment: IP67, -20...+70 °C
• Connection: 9 m PVC cable, 2 wires

The emitter has no output and works only with a QS18VP6R or QS18VN6R receiver, ordered separately. A green LED indicator shows power.

Vibration tested to MIL-STD-202F, method 201A; shock to IEC 60947-5-2.

T18-2NAES-Q8 is a Banner T18-2 series opposed-mode emitter with visible red light, used with a T18-2 receiver. The right-angle 18 mm threaded housing has epoxy-encapsulated electronics and food-grade plastics, for wet and washdown areas. A single-turn potentiometer sets the sensitivity.

• Sensing range: 25 m with a T18-2 receiver
• Light source: visible red LED
• Supply: 10-30 V DC (10-24 V DC above +55 °C), < 16 mA
• Housing: right-angle, 18 mm thread, PBT polyester, PMMA window
• Environment: IP67, IP68, IP69K, -40...+70 °C; ECOLAB chemical compatibility
• Connection: M12 male connector, 4-pin

Vibration per MIL-STD-202G method 201A, shock per method 213B (75 g operating).

SI-MAGB2SMQD is the sensor half of a Banner SI-MAG coded magnetic safety switch: three reed contacts in an epoxy-encapsulated PA 6 housing switch when the SI-MAGB2MM coded magnet comes within 3...14 mm. Monitored by a suitable safety module, one switch and magnet pair can reach Category 4, PL e or SIL CL 3.

• Switching: 3 reed contacts, max. 30 V DC / 60 V AC, 0.08 A, 0.25 VA
• Switching distance: 3...14 mm with SI-MAGB2MM; repeat accuracy 0.1 × switching distance
• Housing: polyamide PA 6, epoxy-encapsulated, 43 x 26 mm
• Connection: M8 4-pin connector
• Environment: IP67, -25...+70 °C (below -5 °C the cable must be fixed)
• Life: B10d 20 million cycles at 20 % load; mechanical 3 × 10^8 cycles; max. 1 Hz

A working system also needs the SI-MAGB2MM coded magnet, an M8 cordset and a safety monitoring device, all ordered separately.

CE and UKCA. Safety data per ISO 13849-1, mission time 20 years.

SI-MAGB2MM is the coded magnet for Banner SI-MAGB2 non-contact magnetic safety interlock switches. It is mounted on the moving guard, and the switch changes state when the magnet comes within its switching distance.

• Fits: SI-MAGB2SM and SI-MAGB2SMQD switches
• Switching distance: 3...14 mm
• Mounting: two Ø 4.3 mm holes
• Operating temperature: -25...+70 °C

The coding is low: any SI-MAGB2 magnet operates any SI-MAGB2 switch, so the magnet and switch should be fixed with tamper-resistant fasteners. Magnets from the older SI-MAG models without the B do not work with SI-MAGB switches.

OR18W.TI-ZZZP.9VO is the emitter half of the Baumer OR18W through-beam pair, in a washdown stainless steel 1.4404 (V4A) housing rated IP 67/69K. It carries no switching output - it only sends the infrared beam, and the matching OR18W receiver does the detecting.

• Housing: stainless steel 1.4404 (V4A), M18 x 1 thread, 67.2 mm long, PMMA lens
• Environment: IP 67/69K; -25...+55 °C
• Operating range: 13 m actual (nominal 20 m), pulsed infrared diode 880 nm
• Emission power: adjustable, 270° potentiometer
• Supply: 12...30 V DC, max. 40 mA
• Connection: M12 4-pin connector

Pins 2 and 4 (white and black) are the ON/OFF inputs, so the beam can be switched off from the controller without cutting the supply - useful when two pairs face each other and have to be run alternately. A green LED shows that the emitter is powered. The receiver is ordered separately.

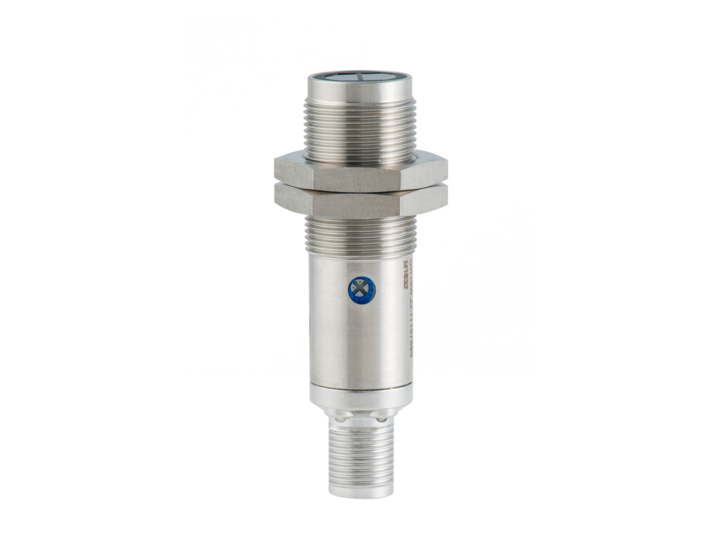

OR18W.EI-PW1P.9VO is the receiver half of the Baumer OR18W through-beam pair, in a washdown stainless steel 1.4404 (V4A) housing rated IP 67/69K. It switches when the beam from the matching OR18W emitter is interrupted, so the emitter has to be ordered with it.

• Housing: stainless steel 1.4404 (V4A), M18 x 1 thread, 67.2 mm long, PMMA lens
• Environment: IP 67/69K; -25...+55 °C
• Operating range: 13 m actual (nominal 20 m)
• Output: PNP, < 100 mA, light/dark operate; response time < 2 ms
• Supply: 12...30 V DC, max. 40 mA
• Connection: M12 4-pin connector

A through-beam pair holds its range on wet, dark or poorly reflecting objects, which is what makes it the choice on washdown lines where a reflector would be fouled by the cleaning water. Sensitivity is set on the receiver with a 270° potentiometer and pin 2 (white) is a control input. A green LED shows beam alignment and lens soiling, a yellow LED the output state.

TN-UHF-CBL-HF240-RPTNC-1-SMA is a TURCK coaxial cable for connecting a passive UHF RFID antenna, with an RP-TNC connector on one end and an SMA connector on the other.

• Connectors: RP-TNC / SMA
• Cable: 1 m
• Attenuation: 0.25 dB

T18-2NAEL-2M is a Banner T18-2 series opposed-mode emitter with visible red light, used with a T18-2 receiver. The right-angle 18 mm threaded housing has epoxy-encapsulated electronics and food-grade plastics, for wet and washdown areas.

• Sensing range: 25 m with a T18-2 receiver
• Light source: visible red LED
• Supply: 10-30 V DC (10-24 V DC above +55 °C), < 16 mA
• Housing: right-angle, 18 mm thread, PBT polyester, PMMA window
• Environment: IP67, IP68, IP69K, -40...+70 °C; ECOLAB chemical compatibility
• Connection: 2 m PVC cable

Vibration per MIL-STD-202G method 201A, shock per method 213B (75 g operating).
