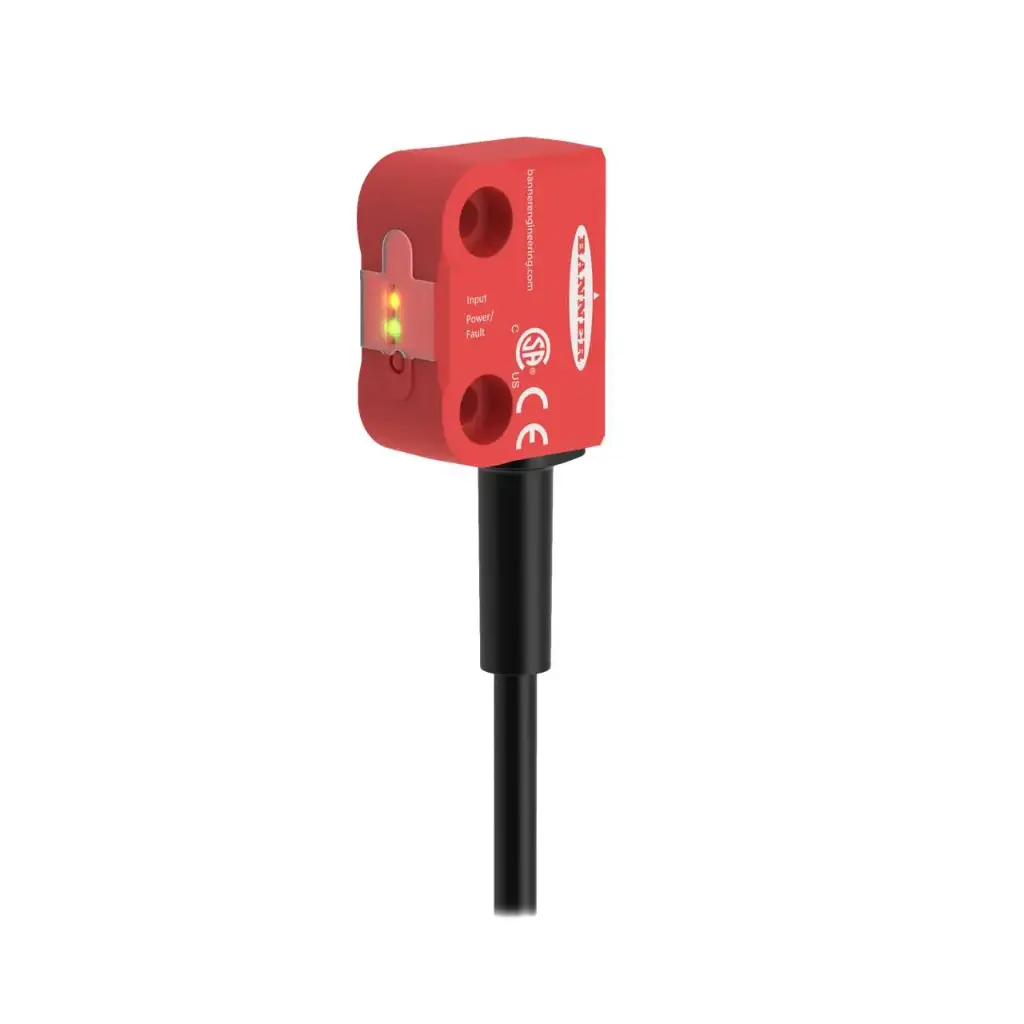

Safety switch SI-RFPT-HP5, RFID, high coding, PNP aux output, M12 5-pin on 250 mm cable

SI-RFPT-HP5 is a Banner SI-RF non-contact RFID safety switch with high coding: it accepts only the last actuator taught in, and a new actuator can be taught up to 12 times. Two OSSD safety outputs and a PNP auxiliary output for door status are brought out on a 250 mm cable with an M12 5-pin connector.

• Sensing distance with SI-RF-A: Sao 10 mm, Sar 25 mm, Sn 13 mm, hysteresis 2 mm
• Outputs: 2 OSSD PNP NO, 100 mA, DC-13; auxiliary PNP output 10 mA
• Supply: 24 V DC +25/-20 %, ≤ 50 mA without load; switch-off delay max. 100 ms
• Housing: PA66 + PA6, red, 36 x 26 x 15 mm, two holes for M4 screws
• Connection: 250 mm black PUR cable, M12 5-pin connector, nickel-plated brass
• Environment: IP69, -25...+70 °C, 93 % RH at +40 °C non-condensing

To teach a new actuator, hold it in front of the switch, power the switch for at least 5 s, remove power, and power it again for at least 5 s. The SI-RF-A actuator is ordered separately.

PL e and Category 4 (EN ISO 13849-1), SIL CL 3 (EN 62061), PFHd 6 × 10-9 1/h. TÜV Nord, cCSAus.
