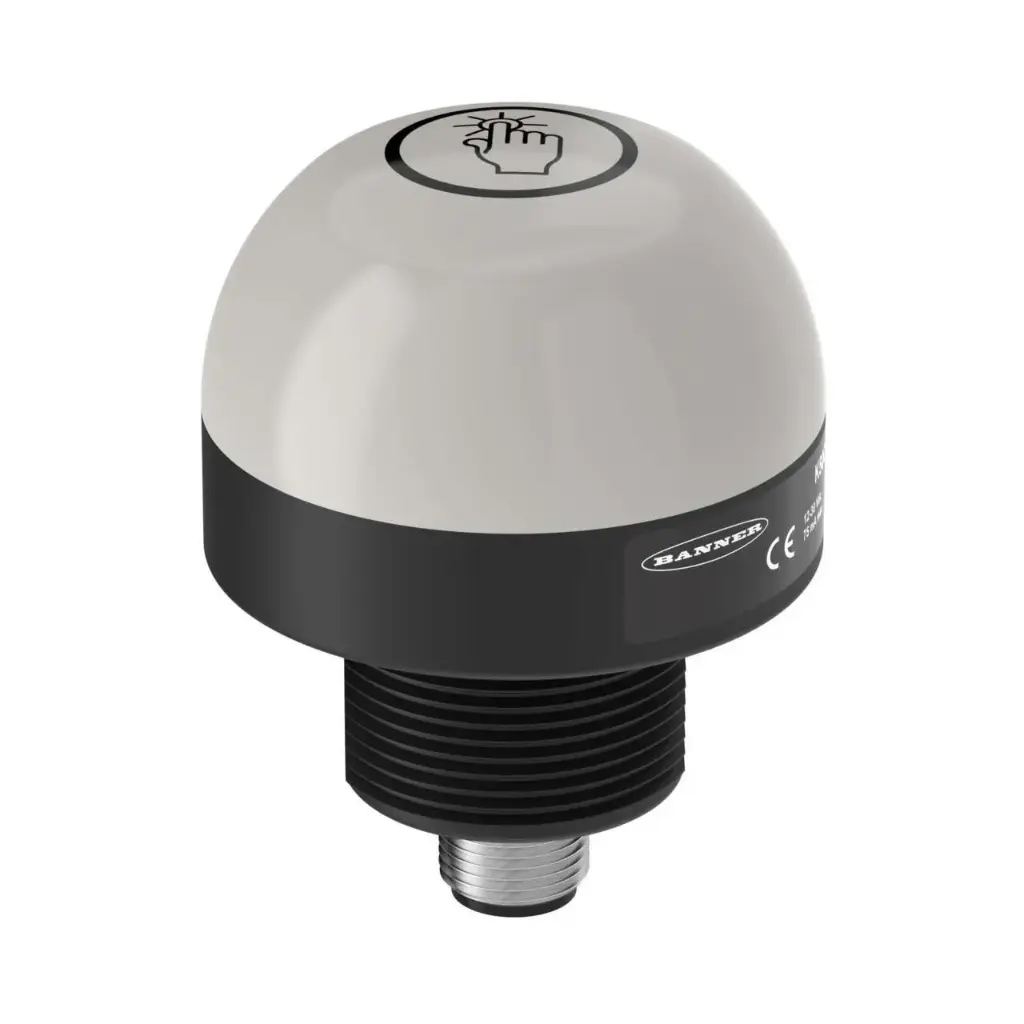

Touch button K50PTAMGRY3Q, programmable RGB green/yellow/red, momentary, bipolar NO, 12-30VDC, IP69K, M30, M12 5-pin

K50PTAMGRY3Q is a Banner K50 Pro series 50 mm touch button with an RGB indicator and a momentary output. Two inputs select green, yellow or red, and colors, animation, output logic and touch sensitivity can be changed with Pro Editor software.

• Colors (default): green 522 nm (16.5 lm), yellow 576 nm (23.8 lm), red 620 nm (8.3 lm); up to 14 colors via Pro Editor
• Output: bipolar, normally open, momentary, max. 150 mA; input response 40 ms, output 300 ms
• Supply: 12...30 V DC, 93 mA at 24 V
• Housing: polycarbonate base, dome and nut, M30x1.5 thread, Ø50 x 66 mm
• Environment: IP67, IP69K, -40...+50 °C
• Connection: integral 5-pin M12 male connector

Programming needs the Pro Converter Cable and Pro Editor; one wire can be reassigned from input to output. Works with bare hands or gloves.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).
