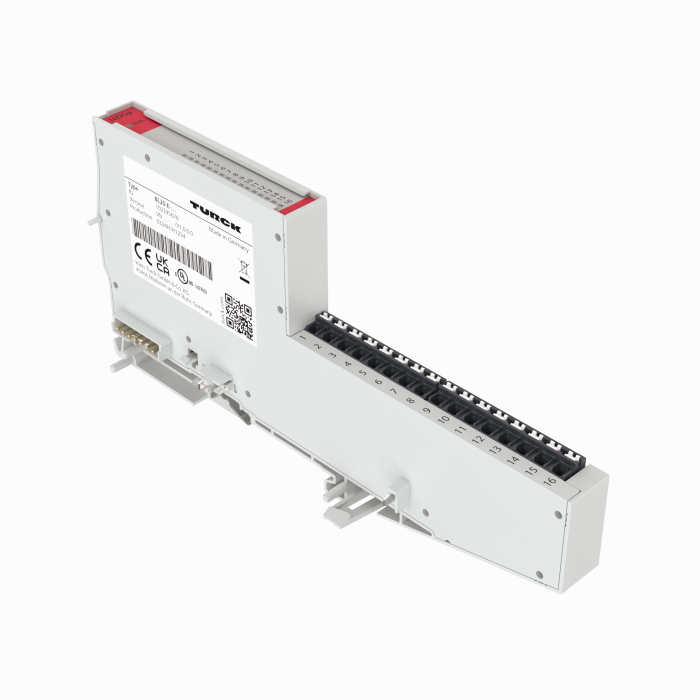

Module BL20-E-16DO-24VDC-0.5A-P

The BL20-E-16DO-24VDC-0.5A-P is a TURCK BL20-E series economy module with 16 digital PNP outputs, each up to 0.5 A. Electronics and connection technology are combined in one housing, so no separate base module is needed.

• Outputs: 16 digital outputs, PNP switching, up to 0.5 A/channel
• Protection: short-circuit protection, output delay 0.3 ms
• Load: up to 100 Hz for resistive loads, up to 10 Hz for lamp loads
• Power: 24 VDC (18...30 VDC), field supply current ≈3 mA, module bus current ≤25 mA
• Connection: push-in terminals
• Environment: IP20, 0...+55°C

The module operates as part of a BL20-E station together with a BL20-E-GW gateway and other BL20-E modules, and is suited for driving relays, valve coils and signal lamps in a control cabinet.

Complies with cULus, FM and IECEx requirements.
