TTR558APSB6T-2.0Q3-061 is a Banner Through the Roller sensor: an aluminium bar with six diffuse infrared beams that sits in the gap between conveyor rollers and detects the leading edge of letters, thin packages, poly bags, totes and boxes. All six beams switch one common output.

• Sensing range: 0...≥120 mm on 90% white card, 0...≥50 mm on 18% grey, ≤3...≥30 mm on 6% black
• Beams: 6, spacing 93.1 mm, first beam 61 mm from the cable end cap; infrared 940 nm
• Output: PNP, Light Operate, 100 mA; response 1 ms
• Supply: 18-30VDC, 45 mA
• Housing: aluminium, 558 mm between frames, end cap style T for T-slot mounting
• Environment: IP50, -10...+55 °C
• Connection: 2 m cable with M8 4-pin snap connector

On the T-slot the sensor is 6 mm shorter than the stated between-frame distance, and the bracket and hardware are supplied by the customer. Keep at least 12 mm clearance to any fixed barrier in the beam path.

Vibration per IEC 60068-2-6, IEC 60947-5-2 and MIL-STD-202F, Method 201A; shock per IEC 60068-2-27.

OT200.DN-GLZZJ.72CV is a distance sensor from the Baumer OT200 series, measuring by time of flight over a 0...2000 mm range. It reports the measured distance over IO-Link and at the same time switches two freely set switching points.

• Measuring range: 0...2000 mm (Sd), repeat accuracy ≤ 1.25...1.5 mm
• Output: push-pull (PNP/NPN) and IO-Link V1.1.4, Class A
• Linearity error: ± 10 mm
• Supply: 10...30 V DC, consumption max. 55 mA
• Housing: plastic (ASA, PMMA), 8 x 25.1 x 15.8 mm, smooth stainless steel mounting sleeve
• Environment: IP 67, -25...+50 °C
• Connection: 2 m cable, 4 cores

The infrared laser diode (940 nm, laser class 1) also works in dusty and smoky environments, while a visible red Alignment Guide beam is used for alignment. Response time is selected over IO-Link: < 25 ms in High Speed, < 50 ms in Standard and < 200 ms in High Accuracy mode. Suppression of reciprocal influence allows several sensors to be mounted side by side.

Vibration and shock resistance tested to IEC 60068-2-6:2008 (10 g, 10...2000 Hz) and IEC 60068-2-27:2009 (50 g / 11 ms).

OT200.GN-GLZZJ.72CV is a background suppression photo sensor from the Baumer OT200 series, measuring by time of flight over a 0...2000 mm switching range. It measures distance directly instead of judging the amount of reflected light, so dark and shiny objects are detected at the same point. The measured distance value is additionally available over IO-Link.

• Switching range: 0...2000 mm (Tw), set by qTeach or IO-Link
• Output: push-pull (PNP/NPN) and IO-Link V1.1.4, Class A, Light operate, switchable
• Repeat accuracy: ≤ 1.25...1.5 mm
• Supply: 10...30 V DC, consumption typically 25 mA (24 V DC)
• Housing: plastic (ASA, PMMA), 8 x 25.1 x 15.8 mm, smooth stainless steel mounting sleeve
• Environment: IP 67, -25...+50 °C
• Connection: 2 m PVC cable, 4 x 0.08 mm²

The infrared laser diode (940 nm, laser class 1) also works in dusty and smoky environments, while a visible red Alignment Guide beam is used for alignment. qTeach setup needs no button, so the switching point cannot be changed by accident during production. Suppression of reciprocal influence allows several sensors to be mounted side by side.

Vibration and shock resistance tested to IEC 60068-2-6:2008 (10 g, 10...2000 Hz) and IEC 60068-2-27:2009 (50 g / 11 ms).

OT200.SN-GDZZJ.72CV is a SmartReflect light barrier from the Baumer OT200 series - it forms the beam between the sensor and a fixed background instead of a separate reflector. The background position Sde is set anywhere between 300 and 2000 mm, and an object is detected as soon as it enters the beam ahead of the background. The measured distance value is additionally available over IO-Link.

• Background position: 300...2000 mm (Sde), scanning range 90...94 % Sde
• Output: push-pull (PNP/NPN) and IO-Link V1.1.4, Class A, Light operate, switchable
• Output current: 100 mA
• Supply: 10...30 V DC, consumption typically 25 mA (24 V DC)
• Housing: plastic (ASA, PMMA), 8 x 25.1 x 15.8 mm, smooth stainless steel mounting sleeve
• Environment: IP 67, -25...+50 °C
• Connection: 2 m PVC cable, 4 x 0.08 mm²

The reflector-free barrier principle suits positions where a reflector has nowhere to mount or soils quickly - the conveyor belt, machine frame or wall serves as the background. The infrared laser diode (940 nm, laser class 1) also works in dusty and smoky environments, while a visible red Alignment Guide beam is used for alignment.

Vibration and shock resistance tested to IEC 60068-2-6:2008 (10 g, 10...2000 Hz) and IEC 60068-2-27:2009 (50 g / 11 ms).

OT330.GN-GLZZJ.72OV/0030 is a background suppression photo sensor from the Baumer OT330 series in a miniature housing, measuring by time of flight over a 0...2500 mm switching range. Distance is measured directly, so a black and a white object are detected at the same point (black/white shift 0 %). The measured distance value is available over IO-Link.

• Switching range: 0...2500 mm (Tw), set by qTeach or IO-Link
• Output: push-pull (PNP/NPN) and IO-Link V1.1.4, Class A, Light operate
• Output current: 100 mA, repeat accuracy < 2...1.5 mm
• Supply: 10...30 V DC, consumption typically 25 mA (24 V DC)
• Housing: plastic (ABS, ASA, PMMA), 11 x 32 x 21 mm, smooth brass mounting sleeve
• Environment: IP 67, -25...+55 °C
• Connection: M12 flylead connector, 300 mm

The infrared laser diode (940 nm, laser class 1) also works in dusty and smoky environments, while a visible red Alignment Guide beam is used for alignment. Response time is selected over IO-Link: < 25 ms in High Speed, < 50 ms in Standard and < 200 ms in High Accuracy mode. Suppression of reciprocal influence allows several sensors to be mounted side by side.

Vibration and shock resistance tested to IEC 60068-2-6:2008 (10 g, 10...2000 Hz) and IEC 60068-2-27:2009 (50 g / 11 ms resp. 100 g / 6 ms).

Q20PDL is a Banner Q20 series long-range diffuse photo sensor with a visible red 624 nm beam. It detects an object by the light the object reflects back to the sensor, so no reflector or separate receiver is needed.

• Sensing range: 800 mm on a 90 % white test card
• Output: PNP, complementary Light Operate and Dark Operate outputs, 100 mA
• Response: 850 µs ON/OFF; repeatability 90 µs
• Supply: 10-30 V DC, < 18 mA
• Housing: ABS, PMMA lenses
• Environment: IP67, -20...+60 °C
• Connection: 2 m PVC cable, 4 wires

A green LED indicator shows power; the amber one shows the output state and flashes at marginal excess gain. Sensitivity is set with a single-turn potentiometer.

Vibration tested to MIL-STD-202F, method 201A; shock to IEC 60947-5-2.

Q20NDXL is a Banner Q20 series long-range diffuse photo sensor with an infrared beam. It detects objects by the light they reflect back, up to 1.5 m from the sensor, and has both a Light Operate and a Dark Operate NPN output.

• Sensing range: 1500 mm, adjustable
• Output: complementary NPN, Light Operate and Dark Operate
• Response: 0.8 ms; repeatability 155 µs
• Supply: 10-30 V DC
• Housing: compact rectangular, thermoplastic, acrylic lens
• Environment: IP67, NEMA 4X, -20...+60 °C
• Connection: 2 m PVC cable, 4 wires

Sensitivity is set with a potentiometer.

UL and CE approved.

DF-G1-NS-Q5 is a Banner DF-G1 Expert amplifier for plastic and glass fibre optic assemblies, with a single NPN output. Two 4-digit displays show the signal level in red and the threshold in green at the same time, so the margin is visible without a menu.

• Output: 1x NPN, 100 mA; response 200 µs, 500 µs, 2 ms or 5 ms by mode
• Light source: visible red, 660 nm
• Supply: 10-30 V DC, < 40 mA at 24 V (< 30 mA in ECO display mode)
• Housing: 10 mm wide, ABS/polycarbonate, for 35 mm DIN rail
• Environment: IP50, -10...+55 °C
• Connection: 150 mm PVC cable with M12 male connector, 4-pin

Teach methods are two-point, dynamic, and Light, Dark, Window or Calibration SET; Light Operate or Dark Operate is chosen with a switch on the front, and ON/OFF delays and one-shot timers are set from the menu or the remote teach wire. A 4-pin M12 cordset is needed.

R58ECRGB1Q is a Banner R58E Expert registration mark sensor with a red, green and blue LED light source. During TEACH it picks the colour that gives the most contrast between the mark and its background and detects 16 levels of grey scale; the switching frequency is 10 kHz.

• Sensing: fixed focus 10 mm ±3 mm, image 1.2 x 3.8 mm, parallel to sensor length
• Light source: red 636 nm, green 525 nm, blue 472 nm, selected automatically during TEACH
• Outputs: bipolar, 1x PNP and 1x NPN, 100 mA each; response 50 µs, repeatability 15 µs
• Supply: 10-30VDC, max 75 mA at 10 VDC
• Housing: zinc alloy die-cast, acrylic lens
• Environment: IP67, -10...+55 °C
• Connection: 150 mm PVC pigtail with M12 5-pin connector

Static and Dynamic TEACH by push button or the gray remote wire; in Dynamic TEACH the shorter event becomes Output ON, so Light/Dark Operate is set automatically. Mount at about 15° to shiny surfaces. A 30 ms OFF-delay or ON-delay can be enabled.

Vibration and shock per IEC 60068-2-6 and IEC 60068-2-27.

QS186EQ8 is the emitter of a Banner QS18 series opposed-mode photo sensor pair. Its infrared beam reaches a QS18 receiver up to 20 m away; the emitter itself has no output.

• Sensing range: 20 m with a QS18 receiver
• Output: none (emitter)
• Supply: 10-30 V DC
• Housing: rectangular with M18 threaded nose, ABS, acrylic lens
• Environment: IP67, NEMA 6, -20...+70 °C
• Connection: integral M12 male connector, 4-pin

Needs a QS18 receiver, ordered separately. UL and CE approved.

T18-2NAELIR-Q8 is a Banner T18-2 series opposed-mode emitter with infrared, 850 nm light, used with a T18-2 receiver. The right-angle 18 mm threaded housing has epoxy-encapsulated electronics and food-grade plastics, for wet and washdown areas.

• Sensing range: 25 m with a T18-2 receiver
• Light source: infrared, 850 nm LED
• Supply: 10-30 V DC (10-24 V DC above +55 °C), < 16 mA
• Housing: right-angle, 18 mm thread, PBT polyester, PMMA window
• Environment: IP67, IP68, IP69K, -40...+70 °C; ECOLAB chemical compatibility
• Connection: M12 male connector, 4-pin

Vibration per MIL-STD-202G method 201A, shock per method 213B (75 g operating).

T18-2VPRL-Q8 is a Banner T18-2 series opposed-mode receiver, used with a T18-2 emitter. The right-angle 18 mm threaded housing has epoxy-encapsulated electronics and food-grade plastics, for wet and washdown areas.

• Sensing range: 25 m with a T18-2 emitter
• Output: complementary PNP (NO and NC), 100 mA total up to +55 °C; response 1.5 ms ON / 1 ms OFF
• Supply: 10-30 V DC (10-24 V DC above +55 °C), < 16 mA
• Housing: right-angle, 18 mm thread, PBT polyester, PMMA window
• Environment: IP67, IP68, IP69K, -40...+70 °C; ECOLAB chemical compatibility
• Connection: M12 male connector, 4-pin

Vibration per MIL-STD-202G method 201A, shock per method 213B (75 g operating).

PIRS1X326T5AL47 is a Banner plastic fibre-optic array for opposed-mode sensing: the 47 mm sensing end carries 32 fibre cores of Ø 0.25 mm side by side, so a small object anywhere along the array interrupts the light. The beam exits from the side of the flat sensing head.

• Array: 47 mm, 32 cores Ø 0.25 mm; side-view sensing head 55.2 x 20.2 x 8.7 mm
• Fibre: plastic, polyethylene jacket, length 2 m, T5 termination with stainless steel ferrule
• Bend radius: minimum 60 mm
• Temperature: -55...+70 °C

Supplied as a pair for emitter and receiver. The drawing states that it is not for use with D10 amplifiers; Banner gives a range of 438 mm with a DF-G1 amplifier.

PBCT23TMB5M4 is a Banner coaxial plastic fibre for diffuse mode: a 0.5 mm central core is surrounded by 9 cores of 0.25 mm in an M4 threaded stainless steel tip. The fibre is sheathed in SteelSkin, a stainless steel braid over a monocoil.

• Range: DF-G1 80 mm
• Fibre: 0.5 mm + 9 x 0.25 mm cores, length 1 m, TMB5 terminated sensor ends
• Tip: M4 x 0.7 stainless steel, 2 jam nuts and 1 lock washer included
• Sheath: SteelSkin stainless steel braid, Ø3.6 mm; branches Ø2.9 mm
• Bend radius: at least 12 mm; max +70 °C

PVD100Q is a Banner PVD series parts verification sensor for pick-to-light bin picking: four visible red beams across a 100 mm array, with green and red job lights on both sides of the housing. It works in diffuse mode, or in retroreflective mode when a reflector is mounted opposite, and adjusts itself without user setup.

• Sensing range: diffuse up to 400 mm (18 % grey card), retroreflective up to 2 m with 25 mm reflective tape
• Output: PNP or NPN and NO or NC selected by DIP switch, 150 mA
• Response: 400 ms, including 100 ms ON- and OFF-delay
• Supply: 12-30 V DC, < 75 mA at 24 V DC
• Housing: black painted aluminium, 30 x 15 mm cross-section, acrylic lenses
• Environment: IP62, NEMA 2, 0...+50 °C
• Connection: 2 m PVC cable with M12 5-pin male connector

The controller switches the green job light through the white wire to show which bin to pick from; a reach into the wrong bin turns the light red and switches the output. DIP switches behind the rubber cover also set steady or flashing job light and the job-light input polarity.

SMBAMS30RA is a Banner SMBAMS series right-angle bracket for sensors with a 30 mm housing. Its slots let the sensor be turned through more than 90°.

• Sensor hole: Ø31.0 mm
• Mounting: Ø6.5 mm hole and 26.8 × 7.0 mm slot
• Material: 2.6 mm (12-gauge) cold-rolled steel

QS18VP6LP is a Banner QS18 series polarised retroreflective photo sensor with a visible red 630 nm beam and a range of 3.5 m to a reflector. The polarising filter rejects light returned by shiny objects, so they break the beam instead of acting as a reflector.

• Sensing range: 3.5 m with a reflector
• Output: complementary PNP, Light Operate and Dark Operate
• Response: 0.6 ms; repeatability 150 µs
• Supply: 10-30 V DC
• Housing: rectangular with M18 threaded nose, ABS, acrylic lens
• Environment: IP67, NEMA 4X, -20...+70 °C
• Connection: 2 m PVC cable, 4 wires

Needs a reflector, ordered separately. Sensitivity is set with a potentiometer. UL and CE approved.

Q12AB6FF30 is a Banner Q12 series miniature fixed-field photo sensor with a 30 mm cutoff and a small visible red spot focused at 16 mm. It detects objects closer than the cutoff and ignores the background beyond it.

• Sensing range: 30 mm cutoff, fixed
• Output: bipolar, 1 PNP and 1 NPN, Light Operate
• Response: 0.85 ms ON/OFF; repeatability 175 µs
• Supply: 10-30 V DC
• Housing: miniature rectangular, thermoplastic, polycarbonate lens
• Environment: IP67, -20...+55 °C
• Connection: 2 m PVC cable

The small housing fits where there is no room for an 18 mm sensor; there is no sensitivity adjustment. UL, CE and UKCA approved.

Q20-2PLP-Q5 is a Banner Q20-2 series polarized retroreflective photo sensor with a visible red 645 nm beam and a 5 m range with a BRT-92X92C reflector. The polarizing filter lets it detect dark and shiny objects.

• Sensing range: 5 m with BRT-92X92C reflector
• Output: PNP, Light or Dark Operate selected by switch, 100 mA
• Response: 600 µs; repeatability 144 µs
• Supply: 10-30 V DC, < 20 mA
• Housing: ABS, acrylic lens, 3 mm mounting holes at 25.4 mm spacing
• Environment: IP67, -25...+70 °C
• Connection: 150 mm PVC cable with M12 4-pin male connector

A green LED indicator shows power; the amber one shows light sensed and flashes at a marginal sensing condition. Sensitivity is set with a single-turn potentiometer. Default mode is Dark Operate.

Q20-2PLP-Q3 is a Banner Q20-2 series polarized retroreflective photo sensor with a visible red 645 nm beam and a 5 m range with a BRT-92X92C reflector. The polarizing filter lets it detect dark and shiny objects.

• Sensing range: 5 m with BRT-92X92C reflector
• Output: PNP, Light or Dark Operate selected by switch, 100 mA
• Response: 600 µs; repeatability 144 µs
• Supply: 10-30 V DC, < 20 mA
• Housing: ABS, acrylic lens, 3 mm mounting holes at 25.4 mm spacing
• Environment: IP67, -25...+70 °C
• Connection: 150 mm PVC cable with M8 3-pin male connector

A green LED indicator shows power; the amber one shows light sensed and flashes at a marginal sensing condition. Sensitivity is set with a single-turn potentiometer. Default mode is Dark Operate.

Q20-2PLP-2M is a Banner Q20-2 series polarized retroreflective photo sensor with a visible red 645 nm beam and a 5 m range with a BRT-92X92C reflector. The polarizing filter lets it detect dark and shiny objects.

• Sensing range: 5 m with BRT-92X92C reflector
• Output: PNP, Light or Dark Operate selected by switch, 100 mA
• Response: 600 µs; repeatability 144 µs
• Supply: 10-30 V DC, < 20 mA
• Housing: ABS, acrylic lens, 3 mm mounting holes at 25.4 mm spacing
• Environment: IP67, -25...+70 °C
• Connection: 2 m PVC cable, 3 wires

A green LED indicator shows power; the amber one shows light sensed and flashes at a marginal sensing condition. Sensitivity is set with a single-turn potentiometer. Default mode is Dark Operate.

Q20-2NLP-Q is a Banner Q20-2 series polarized retroreflective photo sensor with a visible red 645 nm beam and a 5 m range with a BRT-92X92C reflector. The polarizing filter lets it detect dark and shiny objects.

• Sensing range: 5 m with BRT-92X92C reflector
• Output: NPN, Light or Dark Operate selected by switch, 100 mA
• Response: 600 µs; repeatability 144 µs
• Supply: 10-30 V DC, < 20 mA
• Housing: ABS, acrylic lens, 3 mm mounting holes at 25.4 mm spacing
• Environment: IP67, -25...+70 °C
• Connection: 150 mm PVC cable with M8 4-pin male connector (3-wire sensor)

A green LED indicator shows power; the amber one shows light sensed and flashes at a marginal sensing condition. Sensitivity is set with a single-turn potentiometer. Default mode is Dark Operate.

Q20-2NLP-Q3 is a Banner Q20-2 series polarized retroreflective photo sensor with a visible red 645 nm beam and a 5 m range with a BRT-92X92C reflector. The polarizing filter lets it detect dark and shiny objects.

• Sensing range: 5 m with BRT-92X92C reflector
• Output: NPN, Light or Dark Operate selected by switch, 100 mA
• Response: 600 µs; repeatability 144 µs
• Supply: 10-30 V DC, < 20 mA
• Housing: ABS, acrylic lens, 3 mm mounting holes at 25.4 mm spacing
• Environment: IP67, -25...+70 °C
• Connection: 150 mm PVC cable with M8 3-pin male connector

A green LED indicator shows power; the amber one shows light sensed and flashes at a marginal sensing condition. Sensitivity is set with a single-turn potentiometer. Default mode is Dark Operate.

Q20-2PLP-Q is a Banner Q20-2 series polarized retroreflective photo sensor with a visible red 645 nm beam and a 5 m range with a BRT-92X92C reflector. The polarizing filter lets it detect dark and shiny objects.

• Sensing range: 5 m with BRT-92X92C reflector
• Output: PNP, Light or Dark Operate selected by switch, 100 mA
• Response: 600 µs; repeatability 144 µs
• Supply: 10-30 V DC, < 20 mA
• Housing: ABS, acrylic lens, 3 mm mounting holes at 25.4 mm spacing
• Environment: IP67, -25...+70 °C
• Connection: 150 mm PVC cable with M8 4-pin male connector (3-wire sensor)

A green LED indicator shows power; the amber one shows light sensed and flashes at a marginal sensing condition. Sensitivity is set with a single-turn potentiometer. Default mode is Dark Operate.

Q20-2VNLP-2M is a Banner Q20-2 series polarized retroreflective photo sensor with a visible red 645 nm beam and a 5 m range with a BRT-92X92C reflector. The polarizing filter lets it detect dark and shiny objects.

• Sensing range: 5 m with BRT-92X92C reflector
• Output: two NPN, one Light Operate and one Dark Operate (complementary), 100 mA total
• Response: 600 µs; repeatability 144 µs
• Supply: 10-30 V DC, < 20 mA
• Housing: ABS, acrylic lens, 3 mm mounting holes at 25.4 mm spacing
• Environment: IP67, -25...+70 °C
• Connection: 2 m PVC cable, 4 wires

A green LED indicator shows power; the amber one shows light sensed and flashes at a marginal sensing condition. Sensitivity is set with a single-turn potentiometer.

Q20-2NLP-2M is a Banner Q20-2 series polarized retroreflective photo sensor with a visible red 645 nm beam and a 5 m range with a BRT-92X92C reflector. The polarizing filter lets it detect dark and shiny objects.

• Sensing range: 5 m with BRT-92X92C reflector
• Output: NPN, Light or Dark Operate selected by switch, 100 mA
• Response: 600 µs; repeatability 144 µs
• Supply: 10-30 V DC
• Housing: ABS, acrylic lens, 3 mm mounting holes at 25.4 mm spacing
• Environment: IP67, -25...+70 °C
• Connection: 2 m PVC cable, 3 wires

A green LED indicator shows power; the amber one shows light sensed and flashes at a marginal sensing condition. Default mode is Dark Operate.

Q20-2VPLP-Q5 is a Banner Q20-2 series polarized retroreflective photo sensor with a visible red 645 nm beam and a 5 m range with a BRT-92X92C reflector. The polarizing filter lets it detect dark and shiny objects.

• Sensing range: 5 m with BRT-92X92C reflector
• Output: two PNP, one Light Operate and one Dark Operate (complementary), 100 mA total
• Response: 600 µs; repeatability 144 µs
• Supply: 10-30 V DC, < 20 mA
• Housing: ABS, acrylic lens, 3 mm mounting holes at 25.4 mm spacing
• Environment: IP67, -25...+70 °C
• Connection: 150 mm PVC cable with M12 4-pin male connector

A green LED indicator shows power; the amber one shows light sensed and flashes at a marginal sensing condition. Sensitivity is set with a single-turn potentiometer.

Q20-2NLP-Q5 is a Banner Q20-2 series polarized retroreflective photo sensor with a visible red 645 nm beam and a 5 m range with a BRT-92X92C reflector. The polarizing filter lets it detect dark and shiny objects.

• Sensing range: 5 m with BRT-92X92C reflector
• Output: NPN, Light or Dark Operate selected by switch, 100 mA
• Response: 600 µs; repeatability 144 µs
• Supply: 10-30 V DC, < 20 mA
• Housing: ABS, acrylic lens, 3 mm mounting holes at 25.4 mm spacing
• Environment: IP67, -25...+70 °C
• Connection: 150 mm PVC cable with M12 4-pin male connector

A green LED indicator shows power; the amber one shows light sensed and flashes at a marginal sensing condition. Sensitivity is set with a single-turn potentiometer. Default mode is Dark Operate.

O200.EL-PV1T.72NV/FREC_H006 is the receiver half of a Baumer O200 miniature through-beam pair, working with a pulsed red laser emitter over a 6 m nominal range. Sensitivity is set with qTeach - a ferromagnetic tool held against the housing instead of a potentiometer - so once the machine runs there is no adjustment on the sensor for anyone to turn.

• Range: actual 5 m, nominal 6 m; smallest detectable object 3 mm (0.5 mm with aperture)
• Output: PNP complementary, light/dark operate, 50 mA
• Supply: 10...30 VDC, typ. 10 mA at 24 VDC
• Response time: < 0.1 ms, jitter < 0.03 ms
• Housing: rectangular 8 x 25.1 x 14.1 mm, ASA plastic, PMMA optics, M3 stainless steel threaded sleeves
• Environment: IP 67, -25...+50 °C
• Connection: M8 4-pin flylead connector, 200 mm

Typical positions are counting and presence checks on packaging and assembly lines, where the aperture accessory brings 0.5 mm parts and gaps within reach. A flashing output indicator reports weak signal margin or a soiled lens, so alignment is checked without instruments. Reciprocal influence is suppressed, so several pairs can work side by side.

O200.TL-GZZY.72NV/FIN2_H006 is the emitter half of a Baumer O200 miniature through-beam pair, with a parallel red laser beam rather than a diverging one, so detection stays even across the whole 6 m nominal range. The emitter diode is switched off either through the test input or over IO-Link, letting a controller verify the receiver channel without anyone breaking the beam by hand.

• Range: actual 5 m, nominal 6 m; parallel beam
• Light source: pulsed red laser diode, 680 nm, laser class 1
• Communication: IO-Link V1.1, port class A, 230.4 kBaud, cycle ≥ 0.6 ms
• Supply: 10...30 VDC, typ. 10 mA at 24 VDC
• Housing: rectangular 8 x 25.1 x 15.8 mm, ASA plastic, PMMA optics, M3 stainless steel threaded sleeves
• Environment: IP 67, -20...+50 °C
• Connection: M8 4-pin flylead connector, 200 mm

A parallel beam pays off where the pair sits at an awkward distance or the object passes close to one side: the spot does not grow with range, so the smallest detectable object and the alignment tolerance are the same at 0.5 m as at 5 m. The emitter is used with an O200 through-beam receiver, which carries the switching output - the emitter has none of its own.

BRT-84 is a Banner round acrylic retroreflector with a centre mounting hole, for photo sensors working in retroreflective mode.

• Diameter: 84 mm
• Reflectivity factor: 1.4
• Mounting: centre hole, Ø4.5 mm
• Temperature: -20...+60 °C

Supplied without individual packaging.

R58ECRGB1Q8 is a Banner R58E Expert registration mark sensor with a red, green and blue LED light source. During TEACH it picks the colour that gives the most contrast between the mark and its background and detects 16 levels of grey scale; the switching frequency is 10 kHz.

• Sensing: fixed focus 10 mm ±3 mm, image 1.2 x 3.8 mm, parallel to sensor length
• Light source: red 636 nm, green 525 nm, blue 472 nm, selected automatically during TEACH
• Outputs: bipolar, 1x PNP and 1x NPN, 100 mA each; response 50 µs, repeatability 15 µs
• Supply: 10-30VDC, max 75 mA at 10 VDC
• Housing: zinc alloy die-cast, acrylic lens
• Environment: IP67, -10...+55 °C
• Connection: integral M12 5-pin connector

Static and Dynamic TEACH by push button or the gray remote wire; in Dynamic TEACH the shorter event becomes Output ON, so Light/Dark Operate is set automatically. Mount at about 15° to shiny surfaces. A 30 ms OFF-delay or ON-delay can be enabled.

Vibration and shock per IEC 60068-2-6 and IEC 60068-2-27.

DF-G1-NS-Q3 is a Banner DF-G1 Expert amplifier for plastic and glass fibre optic assemblies, with a single NPN output. Two 4-digit displays show the signal level in red and the threshold in green at the same time, so the margin is visible without a menu.

• Output: 1x NPN, 100 mA; response 200 µs, 500 µs, 2 ms or 5 ms by mode
• Light source: visible red, 660 nm
• Supply: 10-30 V DC, < 40 mA at 24 V (< 30 mA in ECO display mode)
• Housing: ABS/polycarbonate, for 35 mm DIN rail
• Environment: IP50, -10...+55 °C
• Connection: 150 mm PVC cable with M8 male connector, 4-pin

Teach methods are two-point, dynamic, and Light, Dark, Window or Calibration SET; Light Operate or Dark Operate is chosen with a switch on the front, and ON/OFF delays and one-shot timers are set from the menu or the remote teach wire. A 4-pin M8 cordset is needed.

Q12RP6RQ3 is the receiver of a Banner Q12 series miniature opposed-mode photo sensor pair. Its PNP output switches on when an object breaks the beam from a Q12 emitter up to 2 m away.

• Sensing range: 2 m with a Q12 emitter
• Output: 1 PNP, Dark Operate
• Response: 1.3 ms ON, 0.9 ms OFF; repeatability 175 µs
• Supply: 10-30 V DC
• Housing: miniature rectangular, thermoplastic, polycarbonate lens
• Environment: IP67, -20...+55 °C
• Connection: 150 mm cable with M8 male connector, 3-pin

Needs a Q12 emitter, ordered separately. UL, CE and UKCA approved.

Q126EQ3 is the emitter of a Banner Q12 series miniature opposed-mode photo sensor pair. Its visible red 640 nm beam reaches a Q12 receiver up to 2 m away; the emitter itself has no output.

• Sensing range: 2 m with a Q12 receiver
• Output: none (emitter)
• Supply: 10-30 V DC
• Housing: miniature rectangular, thermoplastic, polycarbonate lens
• Environment: IP67, -20...+55 °C
• Connection: 150 mm cable with M8 male connector, 3-pin

Needs a Q12 receiver, ordered separately. UL, CE and UKCA approved.

IA23S is a Banner individual glass fibre for opposed mode with a right-angled probe tip. It is supplied as one fibre: an opposed setup uses one on the emitter and one on the receiver.

• Type: opposed, individual fibre, supplied as 1 piece
• Length: 914 mm, bundle Ø3.2 mm
• Tip: right-angled probe, Ø4.8 mm
• Sheath: stainless steel monocoil
• Bend radius: at least 25 mm
• Temperature: -140...+249 °C

The fibre ends are ground and polished, so the assembly cannot be shortened or spliced. Glass fibres carry infrared as well as visible light; Banner recommends them for IR sensors.

QS18VP6LV W/30 is a Banner QS18 series non-polarised retroreflective photo sensor with a visible red 630 nm beam, a range of 6.5 m to a reflector and a 9 m cable. It switches when an object breaks the beam between the sensor and the reflector.

• Sensing range: 6.5 m with a reflector
• Output: complementary PNP, Light Operate and Dark Operate
• Response: 0.6 ms; repeatability 150 µs
• Supply: 10-30 V DC
• Housing: rectangular with M18 threaded nose, ABS, acrylic lens
• Environment: IP67, NEMA 4X, -20...+70 °C
• Connection: 9 m PVC cable, 4 wires

Needs a reflector, ordered separately. Being non-polarised, it can be fooled by shiny targets; sensitivity is set with a potentiometer. UL and CE approved.

QS30LDLQ is a Banner QS30 series diffuse-mode laser sensor with a Class 2 visible red 658 nm laser and an 800 mm range. The spot is about 1 mm at 800 mm, so it detects small parts and low-contrast targets at a distance.

• Sensing range: 800 mm, spot approx. 1 mm at 800 mm
• Output: bipolar, one PNP and one NPN, Light or Dark Operate, 150 mA each
• Response: 500 µs; repeatability 70 µs; selectable 30 ms OFF-delay
• Supply: 10-30 V DC, < 35 mA
• Housing: ABS, acrylic lens cover, 30 mm threaded nose or side mounting
• Environment: IP67, -10...+50 °C
• Connection: integral M12 5-pin male connector

The switch point is taught with two push buttons or the remote wire: two-point static, dynamic, window, light set and dark set, then fine-tuned with the +/- buttons. An 8-segment bar graph shows the signal relative to the switch point; the remote wire also locks the buttons and resets to factory defaults.

Class 2 laser product per IEC 60825-1:2014. Vibration tested to MIL-STD-202F, method 201A; shock to IEC 60947-5-2.

SMB22A is a Banner right-angle bracket for sensors with a 22 mm housing. The curved slot lets the sensor be turned before the screws are tightened.

• Sensor hole: Ø22.2 mm
• Mounting: Ø4.6 mm hole and 4.6 x 16.9 mm slot, 26.0 mm hole centre spacing
• Material: 12-gauge stainless steel

BTA23S is a Banner bifurcated glass fibre for diffuse mode with a 5/16-24 UNF thread and an angled sensing tip, so the beam exits at a right angle to the fibre.

• Type: diffuse, bifurcated, right-angle beam exit
• Length: 914 mm, bundle Ø3.2 mm
• Tip: 5/16-24 UNF thread with angled end, Ø4.8 mm
• Sheath: stainless steel monocoil
• Bend radius: at least 25 mm
• Temperature: -140...+249 °C

The fibre ends are ground and polished, so the assembly cannot be shortened or spliced. Glass fibres carry infrared as well as visible light; Banner recommends them for IR sensors.

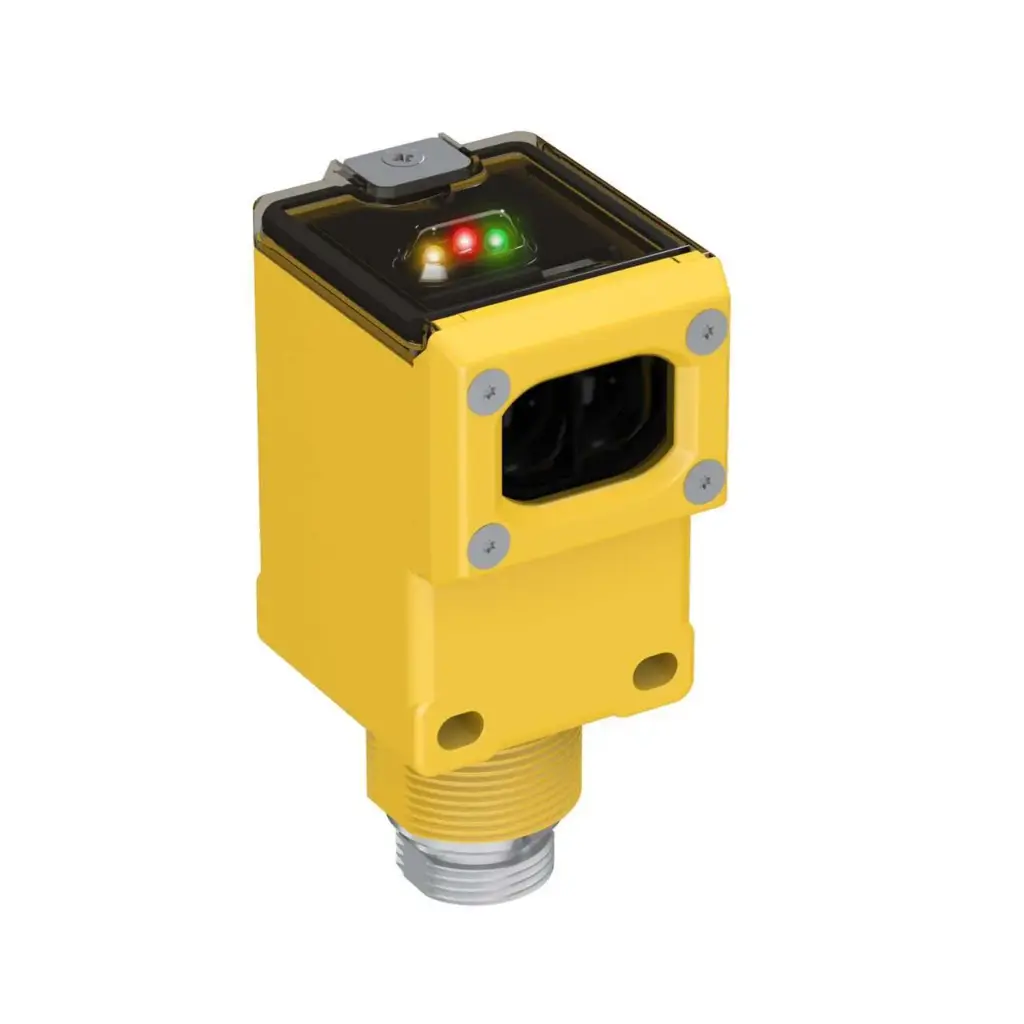

Q45BB6RQ5 is the receiver of a Banner Q45 series opposed-mode photo sensor pair. It switches when an object breaks the infrared beam from a Q45 emitter up to 60 m away, with one PNP and one NPN output.

• Sensing range: 60 m with a Q45 emitter
• Output: bipolar, 1 PNP and 1 NPN, Light or Dark Operate by switch
• Response: 2 ms ON, 1 ms OFF; repeatability 250 µs
• Supply: 10-30 V DC
• Housing: rugged rectangular, thermoplastic, acrylic lens, 30 mm threaded mounting hub
• Environment: IP67, NEMA 4X, -40...+70 °C
• Connection: integral M12 male connector, 4-pin

Needs a Q45 emitter, ordered separately. Sensitivity is set with a multi-turn control, and the signal strength indicator helps with alignment. CE approved.

Q126EQ is the emitter of a Banner Q12 series miniature opposed-mode photo sensor pair. Its visible red 640 nm beam reaches a Q12 receiver up to 2 m away; the emitter itself has no output.

• Sensing range: 2 m with a Q12 receiver
• Output: none (emitter)
• Supply: 10-30 V DC
• Housing: miniature rectangular, thermoplastic, polycarbonate lens
• Environment: IP67, -20...+55 °C
• Connection: 150 mm cable with M8 male connector, 4-pin

Needs a Q12 receiver, ordered separately. UL, CE and UKCA approved.

T18-2VPDL-9M is a Banner T18-2 series diffuse sensor with visible red light that detects objects by the light they reflect back. The right-angle 18 mm threaded housing has epoxy-encapsulated electronics and food-grade plastics, for wet and washdown areas. A single-turn potentiometer sets the sensitivity.

• Sensing range: 750 mm
• Output: complementary PNP (NO and NC), 100 mA total up to +55 °C; response 1.5 ms ON / 0.75 ms OFF
• Supply: 10-30 V DC (10-24 V DC above +55 °C), < 16 mA
• Housing: right-angle, 18 mm thread, PBT polyester, PMMA window
• Environment: IP67, IP68, IP69K, -40...+70 °C; ECOLAB chemical compatibility
• Connection: 9 m PVC cable

Vibration per MIL-STD-202G method 201A, shock per method 213B (75 g operating).

S18-2VNFF200-2M is a Banner S18-2 series fixed-field photo sensor with a 200 mm cutoff and a visible red 624 nm beam, in an 18 mm plastic barrel. It detects objects closer than the cutoff and ignores the background beyond it.

• Sensing range: 200 mm cutoff, fixed
• Output: complementary NPN, Light Operate and Dark Operate
• Response: 2 ms; repeatability 100 µs
• Supply: 10-30 V DC
• Housing: M18 threaded barrel, thermoplastic, acrylic lens
• Environment: IP67, NEMA 4X, -40...+70 °C
• Connection: 2 m PVC cable, 4 wires

There is no sensitivity adjustment. ECOLAB certified chemical resistance. UL and CE approved.

T18-2VPRL-9M is a Banner T18-2 series opposed-mode receiver, used with a T18-2 emitter. The right-angle 18 mm threaded housing has epoxy-encapsulated electronics and food-grade plastics, for wet and washdown areas.

• Sensing range: 25 m with a T18-2 emitter
• Output: complementary PNP (NO and NC), 100 mA total up to +55 °C; response 1.5 ms ON / 1 ms OFF
• Supply: 10-30 V DC (10-24 V DC above +55 °C), < 16 mA
• Housing: right-angle, 18 mm thread, PBT polyester, PMMA window
• Environment: IP67, IP68, IP69K, -40...+70 °C; ECOLAB chemical compatibility
• Connection: 9 m PVC cable

Vibration per MIL-STD-202G method 201A, shock per method 213B (75 g operating).

T18-2NAEL-9M is a Banner T18-2 series opposed-mode emitter with visible red light, used with a T18-2 receiver. The right-angle 18 mm threaded housing has epoxy-encapsulated electronics and food-grade plastics, for wet and washdown areas.

• Sensing range: 25 m with a T18-2 receiver
• Light source: visible red LED
• Supply: 10-30 V DC (10-24 V DC above +55 °C), < 16 mA
• Housing: right-angle, 18 mm thread, PBT polyester, PMMA window
• Environment: IP67, IP68, IP69K, -40...+70 °C; ECOLAB chemical compatibility
• Connection: 9 m PVC cable

Vibration per MIL-STD-202G method 201A, shock per method 213B (75 g operating).

QS18VP6AF300Q5 is a Banner QS18 series photo sensor with adjustable background suppression and a visible red 640 nm LED beam. Objects up to the set cutoff are detected regardless of colour, while anything beyond it is ignored.

• Sensing range: cutoff adjustable 30-300 mm
• Output: complementary PNP, Light Operate and Dark Operate
• Response: 2.5 ms; repeatability 250 µs
• Supply: 10-30 V DC
• Housing: ABS, acrylic lens
• Environment: IP67, -20...+55 °C
• Connection: 150 mm PVC cable with M12 4-pin male connector

The cutoff distance is set with a mechanical adjustment screw. A crosstalk algorithm lets two sensors work close to each other. A green LED indicator shows power; the amber one shows light sensed and flashes at a marginal condition.

BRT-THG-2-100 is a Banner self-adhesive retroreflective tape, 50 mm wide and 2.5 m long, used as a target for photo sensors in retroreflective mode. It is not recommended for polarized retroreflective sensors.

• Size: 50 mm wide, 2.5 m long
• Reflectivity factor: 0.7
• Temperature: max +60 °C

For full adhesion the surface must be clean.

T18-2VPLP-Q8 is a Banner T18-2 series polarized retroreflective photo sensor with a 6 m range to a BRT-84 reflector, in a right-angle 18 mm housing for washdown areas. The polarizing filter rejects light returned by shiny objects, so they break the beam instead of acting as a reflector.

• Sensing range: 6 m with a BRT-84 reflector
• Output: complementary PNP, Light Operate (black wire) and Dark Operate (white wire), 100 mA total (50 mA above +55 °C)
• Response: 1.5 ms ON, 0.75 ms OFF; repeatability 100 µs
• Supply: 10-30 V DC (10-24 V DC above +55 °C), < 16 mA
• Housing: right-angle, M18x1 thread, PBT polyester, PMMA window, epoxy-encapsulated electronics
• Environment: IP67, IP68, IP69K, -40...+70 °C
• Connection: integral M12 4-pin male connector

Needs a reflector, ordered separately. There is no sensitivity adjustment. A green LED shows power and flashes at a marginal signal; the amber LED shows that the black-wire output is on.

ECOLAB certified chemical compatibility. Vibration tested to MIL-STD-202G, method 201A; shock to method 213B (75 g operating).

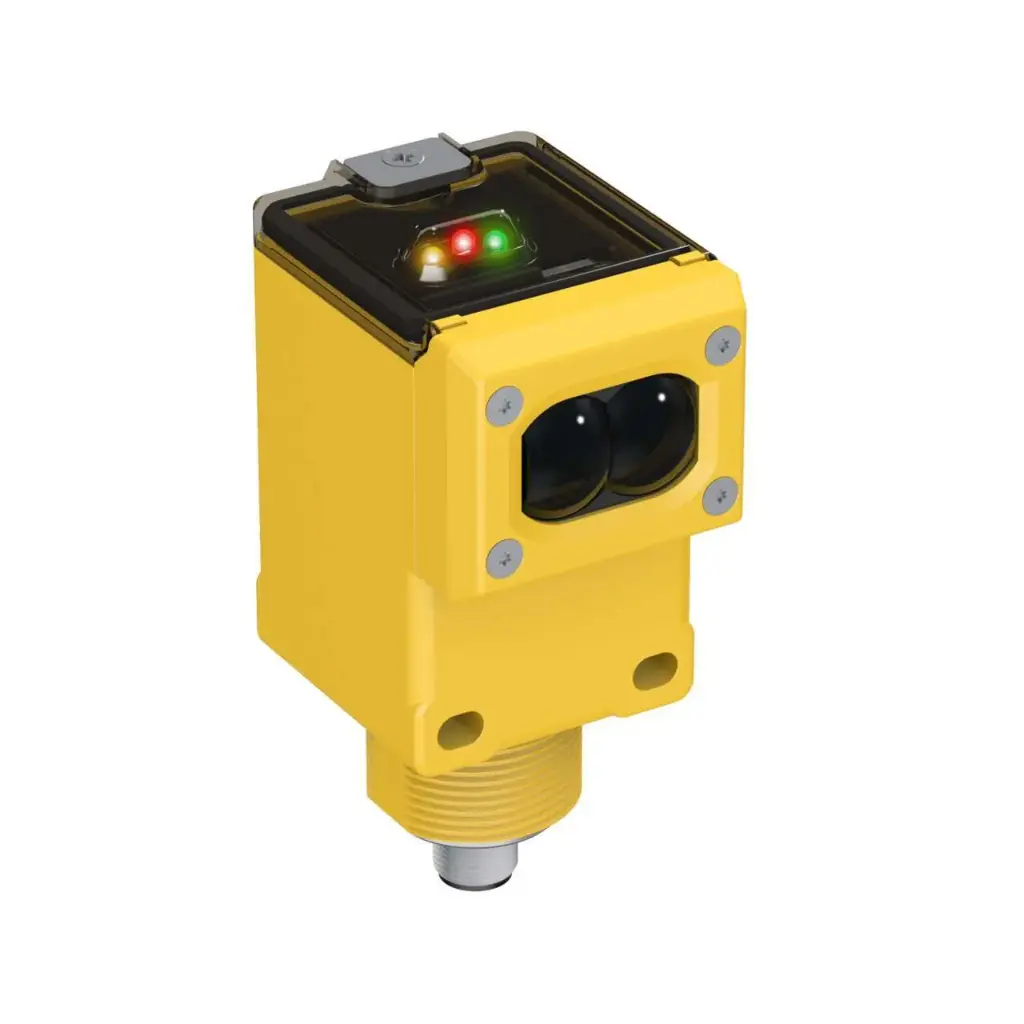

Q456E is the emitter of a Banner Q45 series opposed-mode photo sensor pair. Its infrared 880 nm beam reaches a Q45BB6 receiver up to 60 m away, with enough excess gain for dirty or dusty areas; the emitter itself has no output.

• Sensing range: 60 m with a Q45BB6 receiver
• Output: none (emitter)
• Supply: 10-30 V DC
• Housing: rugged rectangular, thermoplastic, acrylic lens, 30 mm threaded mounting hub
• Environment: IP67, NEMA 6P, -40...+70 °C
• Connection: 2 m PVC cable, 2 wires

Needs a Q45BB6 receiver, ordered separately. The housing is designed to withstand 1200 psi washdown. CE approved.

QS18VN6D is a Banner QS18 series diffuse photo sensor with an infrared beam, in a compact housing with an M18 threaded nose. It detects objects by the light they reflect back, up to 450 mm from the sensor.

• Sensing range: 450 mm, adjustable
• Output: complementary NPN, Light Operate and Dark Operate
• Response: 0.6 ms; repeatability 150 µs
• Supply: 10-30 V DC
• Housing: rectangular with M18 threaded nose, ABS, acrylic lens
• Environment: IP67, NEMA 6, -20...+70 °C
• Connection: 2 m PVC cable, 4 wires

Sensitivity is set with a potentiometer. The M18 nose fits a standard 18 mm mounting hole. UL and CE approved.

M12EQ8 is the emitter of a Banner M12 series opposed-mode photo sensor pair, in a 12 mm nickel-plated brass barrel. Its visible red 660 nm beam reaches an M12 series receiver up to 5 m away; the emitter itself has no output.

• Sensing range: 5 m with an M12 series receiver
• Output: none (emitter)
• Supply: 10-30 V DC
• Housing: M12 threaded barrel, nickel-plated brass, PMMA lens, encapsulated
• Environment: IP67, IP68, NEMA 4X, -20...+60 °C
• Connection: integral M12 male connector, 4-pin

Needs an M12 series receiver, ordered separately. CE approved.

QS18VN6LLPQ8 is a Banner QS18 series polarised retroreflective photo sensor with a Class 1 visible red laser, working from 0.1 to 10 m to a reflector. The narrow laser beam detects small objects and gaps, and the polarising filter stops shiny objects acting as a reflector.

• Sensing range: 0.1-10 m with a reflector
• Output: complementary NPN, Light Operate and Dark Operate
• Response: 0.7 ms; repeatability 130 µs
• Supply: 10-30 V DC
• Housing: rectangular with M18 threaded nose, ABS, acrylic lens
• Environment: IP67, NEMA 4X, -10...+50 °C
• Connection: integral M12 male connector, 4-pin

Needs a reflector, ordered separately. Sensitivity is set with a potentiometer. UL and CE approved.

Q20PFF150 is a Banner Q20 series fixed-field photo sensor with a 150 mm cutoff and a small visible red 655 nm spot. It detects objects closer than the cutoff and ignores the background beyond it.

• Sensing range: 150 mm cutoff, fixed
• Output: complementary PNP, Light Operate and Dark Operate
• Response: 0.8 ms; repeatability 155 µs
• Supply: 10-30 V DC
• Housing: compact rectangular, thermoplastic, acrylic lens
• Environment: IP67, NEMA 4X, -20...+60 °C
• Connection: 2 m PVC cable, 4 wires

There is no sensitivity adjustment; the cutoff is set at the factory.

UL and CE approved.

T18-2VPDL-2M is a Banner T18-2 series diffuse sensor with visible red light that detects objects by the light they reflect back. The right-angle 18 mm threaded housing has epoxy-encapsulated electronics and food-grade plastics, for wet and washdown areas. A single-turn potentiometer sets the sensitivity.

• Sensing range: 750 mm
• Output: complementary PNP (NO and NC), 100 mA total up to +55 °C; response 1.5 ms ON / 0.75 ms OFF
• Supply: 10-30 V DC (10-24 V DC above +55 °C), < 16 mA
• Housing: right-angle, 18 mm thread, PBT polyester, PMMA window
• Environment: IP67, IP68, IP69K, -40...+70 °C; ECOLAB chemical compatibility
• Connection: 2 m PVC cable

Vibration per MIL-STD-202G method 201A, shock per method 213B (75 g operating).

SME312LPQD is a Banner MINI-BEAM Expert polarized retroreflective photo sensor with a visible red 650 nm beam and a range of 10 mm to 3 m. The polarizing filter rejects reflections from shiny objects, so only light returned by the reflector is seen.

• Sensing: polarized retroreflective, 10 mm...3 m with reflector, red 650 nm
• Outputs: bipolar, 1x PNP and 1x NPN, 150 mA each (100 mA at 70 °C); response 500 µs, repeatability 100 µs
• Supply: 10-30VDC, below 45 mA
• Housing: MINI-BEAM, reinforced thermoplastic polyester, encapsulated, M18x1 nose thread with nut
• Environment: IP67, -20...+70 °C
• Connection: integral M12 5-pin connector

Set with the push button or the gray remote TEACH wire: the first condition taught becomes Output ON, so Light or Dark Operate is not selected separately. The green indicator flashes when the signal approaches the switching threshold.

Q45BB6DLQ5 is a Banner Q45 series long-range diffuse photo sensor with an infrared beam, in a rugged rectangular housing. It detects objects by the light they reflect back, up to 1.8 m from the sensor.

• Sensing range: 1.8 m, adjustable
• Output: bipolar, 1 PNP and 1 NPN, Light or Dark Operate by switch
• Response: 2 ms; repeatability 500 µs
• Supply: 10-30 V DC
• Housing: rugged rectangular, thermoplastic, acrylic lens, 30 mm threaded mounting hub
• Environment: IP67, NEMA 4X, -40...+70 °C
• Connection: integral M12 male connector, 4-pin

Sensitivity is set with a multi-turn control. CE approved.

DQ12RB6R is the receiver of a Banner DQ12 series miniature opposed-mode photo sensor pair. It switches when an object breaks the beam from a DQ12 emitter up to 3 m away, with one PNP and one NPN output.

• Sensing range: 3 m with a DQ12 emitter
• Output: bipolar, 1 PNP and 1 NPN, Dark Operate
• Response: 1.3 ms ON, 0.7 ms OFF; repeatability 125 µs
• Supply: 10-30 V DC
• Housing: miniature rectangular, polyamide, polycarbonate lens
• Environment: IP67, -20...+55 °C
• Connection: 2 m PVC cable, 4 wires

Needs a DQ12 emitter, ordered separately. Dark Operate means the outputs switch on when the beam is blocked.

UL, CE and UKCA approved.

DQ126E is the emitter of a Banner DQ12 series miniature opposed-mode photo sensor pair. Its visible red 645 nm beam reaches a DQ12 receiver up to 3 m away; the emitter itself has no output.

• Sensing range: 3 m with a DQ12 receiver
• Output: none (emitter)
• Supply: 10-30 V DC
• Housing: miniature rectangular, polyamide, polycarbonate lens
• Environment: IP67, -20...+55 °C
• Connection: 2 m PVC cable, 2 wires

Needs a DQ12 receiver, ordered separately. The visible red beam makes the pair easy to align by eye.

UL, CE and UKCA approved.

Q20PLV is a Banner Q20 series non-polarised retroreflective photo sensor with a visible red 645 nm beam and a range of 6 m to a reflector. It switches when an object breaks the beam between the sensor and the reflector.

• Sensing range: 6 m with a reflector
• Output: complementary PNP, Light Operate and Dark Operate
• Response: 0.8 ms; repeatability 155 µs
• Supply: 10-30 V DC
• Housing: compact rectangular, thermoplastic, acrylic lens
• Environment: IP67, NEMA 6, -20...+60 °C
• Connection: 2 m PVC cable, 4 wires

Needs a reflector, ordered separately. Being non-polarised, it can be fooled by shiny targets; sensitivity is set with a potentiometer.

UL and CE approved.

R58ECRGB2Q is a Banner R58E Expert registration mark sensor with a red, green and blue LED light source. During TEACH it picks the colour that gives the most contrast between the mark and its background and detects 16 levels of grey scale; the switching frequency is 10 kHz.

• Sensing: fixed focus 10 mm ±3 mm, image 1.2 x 3.8 mm, perpendicular to sensor length
• Light source: red 636 nm, green 525 nm, blue 472 nm, selected automatically during TEACH
• Outputs: bipolar, 1x PNP and 1x NPN, 100 mA each; response 50 µs, repeatability 15 µs
• Supply: 10-30VDC, max 75 mA at 10 VDC
• Housing: zinc alloy die-cast, acrylic lens
• Environment: IP67, -10...+55 °C
• Connection: 150 mm PVC pigtail with M12 5-pin connector

Static and Dynamic TEACH by push button or the gray remote wire; in Dynamic TEACH the shorter event becomes Output ON, so Light/Dark Operate is set automatically. Mount at about 15° to shiny surfaces. A 30 ms OFF-delay or ON-delay can be enabled.

Vibration and shock per IEC 60068-2-6 and IEC 60068-2-27.

QS18VN6W is a Banner QS18 series divergent diffuse photo sensor with a wide infrared beam and a 100 mm range. The wide beam picks up small or irregular objects at close range without precise aiming.

• Sensing range: 100 mm
• Output: complementary NPN, Light Operate and Dark Operate
• Response: 0.6 ms; repeatability 150 µs
• Supply: 10-30 V DC
• Housing: rectangular with M18 threaded nose, ABS, acrylic lens
• Environment: IP67, NEMA 4X, -20...+70 °C
• Connection: 2 m PVC cable, 4 wires

There is no sensitivity adjustment. UL and CE approved.

T18-2VPFF200-Q8 is a Banner T18-2 series fixed-field sensor with a 200 mm cutoff that ignores objects and background beyond that distance. The right-angle 18 mm threaded housing has epoxy-encapsulated electronics and food-grade plastics, for wet and washdown areas.

• Sensing range: fixed cutoff 200 mm
• Output: complementary PNP (NO and NC), 100 mA total up to +55 °C; response 2 ms ON / 2 ms OFF
• Supply: 10-30 V DC (10-24 V DC above +55 °C), < 16 mA
• Housing: right-angle, 18 mm thread, PBT polyester, PMMA window
• Environment: IP67, IP68, IP69K, -40...+70 °C; ECOLAB chemical compatibility
• Connection: M12 male connector, 4-pin

Vibration per MIL-STD-202G method 201A, shock per method 213B (75 g operating).

QS18VP6AF300Q is a Banner QS18 series background suppression sensor that detects objects up to a cutoff distance set between 30 and 300 mm and ignores anything beyond it. The cutoff is set with a five-turn screw on the housing, without teach or software.

• Sensing range: cutoff adjustable 30...300 mm; minimum range 4...10 mm depending on cutoff
• Output: complementary PNP (NO and NC), 100 mA total; response 2.8 ms, repeatability 250 µs
• Supply: 10-30 V DC, < 16 mA
• Housing: QS18, 18 mm thread, ABS, acrylic lens; visible red LED, 640 nm
• Environment: IP67, NEMA 6, -20...+55 °C
• Connection: 150 mm cable with M8 4-pin male connector

For mirror-like objects, mount the sensor close and tilt it so the reflection is directed away from the receiver. A crosstalk algorithm lets two sensors work next to each other.

T18-2VPFF50-Q8 is a Banner T18-2 series fixed-field photo sensor with a 50 mm cutoff and a visible red beam, in a right-angle 18 mm housing for washdown areas. It detects objects closer than the cutoff and ignores everything beyond it, so a background just behind the target does not switch the output.

• Sensing range: 50 mm cutoff, fixed
• Output: complementary PNP, Light Operate (black wire) and Dark Operate (white wire), 100 mA total (50 mA above +55 °C)
• Response: 2 ms ON, 2 ms OFF; repeatability 200 µs
• Supply: 10-30 V DC (10-24 V DC above +55 °C), < 16 mA
• Housing: right-angle, M18x1 thread, PBT polyester, PMMA window, epoxy-encapsulated electronics
• Environment: IP67, IP68, IP69K, -40...+70 °C
• Connection: integral M12 4-pin male connector

On dark targets the cutoff moves slightly closer: to 98 % of the nominal distance on an 18 % grey card and 95 % on a 6 % black card. There is no sensitivity adjustment. A green LED shows power and flashes at a marginal signal; the amber LED shows that the black-wire output is on.

ECOLAB certified chemical compatibility. Vibration tested to MIL-STD-202G, method 201A; shock to method 213B (75 g operating).

Q2FAP3FF15-Q is a Banner Q2F series fixed-field photo sensor with a 15 mm cutoff and a visible red beam, in a flat low-profile housing. It detects objects closer than the cutoff and ignores everything beyond it, and the flat housing fits installations where a standard sensor housing does not.

• Sensing range: 15 mm cutoff, fixed; spot size 1.4 mm at 15 mm
• Output: PNP, Light Operate, 50 mA; protected against short circuit and overload
• Response: 850 µs; repeatability 125 µs
• Supply: 10-30 V DC, < 20 mA; reverse polarity protected
• Housing: flat, PC housing and lens cover, mounting with M3 screws
• Environment: IP65, -25...+55 °C
• Connection: 150 mm PVC cable with M8 male connector, 4-pin

Target colour has little effect on the cutoff: between 90 % and 6 % reflectance it shifts by no more than 0.5 mm. There is no sensitivity adjustment. With a shiny background, tilt the sensor so the reflection is directed away from it. A green LED shows power; the amber LED shows that light is sensed and flashes at a marginal signal.

CE and cULus Listed.

Q2FAP3FF15-Q5 is a Banner Q2F series fixed-field photo sensor with a 15 mm cutoff and a visible red beam, in a flat low-profile housing. It detects objects closer than the cutoff and ignores everything beyond it, and the flat housing fits installations where a standard sensor housing does not.

• Sensing range: 15 mm cutoff, fixed; spot size 1.4 mm at 15 mm
• Output: PNP, Light Operate, 50 mA; protected against short circuit and overload
• Response: 850 µs; repeatability 125 µs
• Supply: 10-30 V DC, < 20 mA; reverse polarity protected
• Housing: flat, PC housing and lens cover, mounting with M3 screws
• Environment: IP65, -25...+55 °C
• Connection: 150 mm PVC cable with M12 male connector, 4-pin

Target colour has little effect on the cutoff: between 90 % and 6 % reflectance it shifts by no more than 0.5 mm. There is no sensitivity adjustment. With a shiny background, tilt the sensor so the reflection is directed away from it. A green LED shows power; the amber LED shows that light is sensed and flashes at a marginal signal.

CE and cULus Listed.

Q2FAP3FF15-2M is a Banner Q2F series fixed-field photo sensor with a 15 mm cutoff and a visible red beam, in a flat low-profile housing. It detects objects closer than the cutoff and ignores everything beyond it, and the flat housing fits installations where a standard sensor housing does not.

• Sensing range: 15 mm cutoff, fixed; spot size 1.4 mm at 15 mm
• Output: PNP, Light Operate, 50 mA; protected against short circuit and overload
• Response: 850 µs; repeatability 125 µs
• Supply: 10-30 V DC, < 20 mA; reverse polarity protected
• Housing: flat, PC housing and lens cover, mounting with M3 screws
• Environment: IP65, -25...+55 °C
• Connection: 2 m PVC cable, 4 wires, unterminated

Target colour has little effect on the cutoff: between 90 % and 6 % reflectance it shifts by no more than 0.5 mm. There is no sensitivity adjustment. With a shiny background, tilt the sensor so the reflection is directed away from it. A green LED shows power; the amber LED shows that light is sensed and flashes at a marginal signal.

CE and cULus Listed.

Q2FAN3FF15-Q is a Banner Q2F series fixed-field photo sensor with a 15 mm cutoff and a visible red beam, in a flat low-profile housing. It detects objects closer than the cutoff and ignores everything beyond it, and the flat housing fits installations where a standard sensor housing does not.

• Sensing range: 15 mm cutoff, fixed; spot size 1.4 mm at 15 mm
• Output: NPN, Light Operate, 50 mA; protected against short circuit and overload
• Response: 850 µs; repeatability 125 µs
• Supply: 10-30 V DC, < 20 mA; reverse polarity protected
• Housing: flat, PC housing and lens cover, mounting with M3 screws
• Environment: IP65, -25...+55 °C
• Connection: 150 mm PVC cable with M8 male connector, 4-pin

Target colour has little effect on the cutoff: between 90 % and 6 % reflectance it shifts by no more than 0.5 mm. There is no sensitivity adjustment. With a shiny background, tilt the sensor so the reflection is directed away from it. A green LED shows power; the amber LED shows that light is sensed and flashes at a marginal signal.

CE and cULus Listed.

Q2FAP3FF30-Q is a Banner Q2F series fixed-field photo sensor with a 30 mm cutoff and a visible red beam, in a flat low-profile housing. It detects objects closer than the cutoff and ignores everything beyond it, and the flat housing fits installations where a standard sensor housing does not.

• Sensing range: 30 mm cutoff, fixed; spot size 2.6 mm at 30 mm
• Output: PNP, Light Operate, 50 mA; protected against short circuit and overload
• Response: 850 µs; repeatability 125 µs
• Supply: 10-30 V DC, < 20 mA; reverse polarity protected
• Housing: flat, PC housing and lens cover, mounting with M3 screws
• Environment: IP65, -25...+55 °C
• Connection: 150 mm PVC cable with M8 male connector, 4-pin

Target colour has little effect on the cutoff: between 90 % and 6 % reflectance it shifts by no more than 1.7 mm. There is no sensitivity adjustment. With a shiny background, tilt the sensor so the reflection is directed away from it. A green LED shows power; the amber LED shows that light is sensed and flashes at a marginal signal.

CE and cULus Listed.

Q2FAP3FF30-Q5 is a Banner Q2F series fixed-field photo sensor with a 30 mm cutoff and a visible red beam, in a flat low-profile housing. It detects objects closer than the cutoff and ignores everything beyond it, and the flat housing fits installations where a standard sensor housing does not.

• Sensing range: 30 mm cutoff, fixed; spot size 2.6 mm at 30 mm
• Output: PNP, Light Operate, 50 mA; protected against short circuit and overload
• Response: 850 µs; repeatability 125 µs
• Supply: 10-30 V DC, < 20 mA; reverse polarity protected
• Housing: flat, PC housing and lens cover, mounting with M3 screws
• Environment: IP65, -25...+55 °C
• Connection: 150 mm PVC cable with M12 male connector, 4-pin

Target colour has little effect on the cutoff: between 90 % and 6 % reflectance it shifts by no more than 1.7 mm. There is no sensitivity adjustment. With a shiny background, tilt the sensor so the reflection is directed away from it. A green LED shows power; the amber LED shows that light is sensed and flashes at a marginal signal.

CE and cULus Listed.

Q2FAP3FF30-2M is a Banner Q2F series fixed-field photo sensor with a 30 mm cutoff and a visible red beam, in a flat low-profile housing. It detects objects closer than the cutoff and ignores everything beyond it, and the flat housing fits installations where a standard sensor housing does not.

• Sensing range: 30 mm cutoff, fixed; spot size 2.6 mm at 30 mm
• Output: PNP, Light Operate, 50 mA; protected against short circuit and overload
• Response: 850 µs; repeatability 125 µs
• Supply: 10-30 V DC, < 20 mA; reverse polarity protected
• Housing: flat, PC housing and lens cover, mounting with M3 screws
• Environment: IP65, -25...+55 °C
• Connection: 2 m PVC cable, 4 wires, unterminated

Target colour has little effect on the cutoff: between 90 % and 6 % reflectance it shifts by no more than 1.7 mm. There is no sensitivity adjustment. With a shiny background, tilt the sensor so the reflection is directed away from it. A green LED shows power; the amber LED shows that light is sensed and flashes at a marginal signal.

CE and cULus Listed.

Q2FAN3FF30-Q is a Banner Q2F series fixed-field photo sensor with a 30 mm cutoff and a visible red beam, in a flat low-profile housing. It detects objects closer than the cutoff and ignores everything beyond it, and the flat housing fits installations where a standard sensor housing does not.

• Sensing range: 30 mm cutoff, fixed; spot size 2.6 mm at 30 mm
• Output: NPN, Light Operate, 50 mA; protected against short circuit and overload
• Response: 850 µs; repeatability 125 µs
• Supply: 10-30 V DC, < 20 mA; reverse polarity protected
• Housing: flat, PC housing and lens cover, mounting with M3 screws
• Environment: IP65, -25...+55 °C
• Connection: 150 mm PVC cable with M8 male connector, 4-pin

Target colour has little effect on the cutoff: between 90 % and 6 % reflectance it shifts by no more than 1.7 mm. There is no sensitivity adjustment. With a shiny background, tilt the sensor so the reflection is directed away from it. A green LED shows power; the amber LED shows that light is sensed and flashes at a marginal signal.

CE and cULus Listed.
